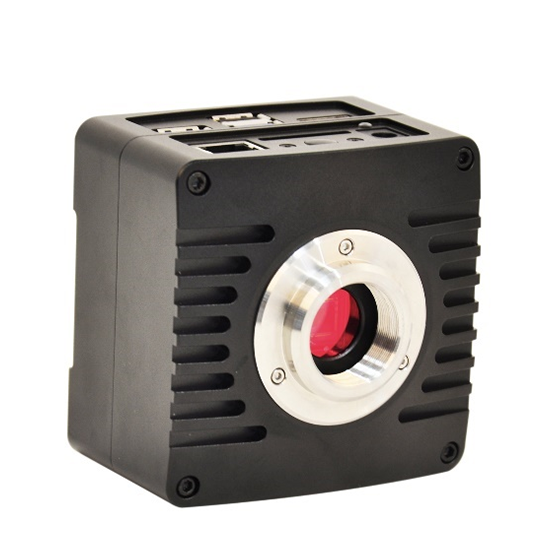

BWHC4-4K8MPA HDMI/NETWORK/USB Multi-outputs C-mount CMOS Camera
Introduction
The BWHC4-4K series camera is intended for acquisition of digital images from stereo microscopes, biological microscopes, or online interactive teaching.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
The BWHC4-4K series camera is intended for acquisition of digital images from stereo microscopes, biological microscopes, or online interactive teaching.
Features
The basic characteristics are listed as below:
- Sony STARVIS 2 back-illuminated CMOS sensor
- 4K HDMI/ NETWORK/ USB multiple video synchronous outputs
- 4K/1080P auto switching according to monitor resolution
- High frame rate output, supporting up to 4K 75fps
- Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms
- SD card/USB flash drive for captured image and video storage, support local preview and playback
- New browsing function, providing rich file operation functions, image to image comparison, image to real-time video comparison, and other functions
- Excellent ISP with local tone mapping and 3D denoising
- Provide two sets of default ISP parameters for biological microscopes and stereo microscopes
- Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
- ImageView software for PC
- iOS/Android applications for smart phones or tablets
Specification
|
|
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity Dark Signal |
Sensor Output (FPS/Resolution) |
Binning |
Exposure(ms) |
|
BWHC4-4K8MPA |
Sony IMX678(C) 1/1.8″(7.68×4.32) |
2.0×2.0 |
3541mv with 1/30s 0.15mv with 1/30s |
60@3840*2160 |
1×1 |
0.019~1000 |
|
BWHC4-4K8MPB |
Sony IMX585(C) 1/1.2″(11.14×6.26) |
2.9×2.9 |
5970mv with 1/30s 0.13mv with 1/30s |
60@3840*2160 |
1×1 |
0.048~1000 |
|
Camera Model |
Video Saving(FPS/Resolution) |
HDMI2.0(FPS/Resolution) |
USB3.0(FPS/Resolution) |
NETWORK(FPS/Resolution) |
|
BWHC4-4K8MPA |
60@3840*2160 60@1920*1080 |
60@3840*2160 60@1920*1080 |
30@3840*2160 45@2688*1512 60@1920*1080 |
30@3840*2160 60@1920*1080 60@1280*720 |
|
BWHC4-4K8MPB |
60@3840*2160 60@1920*1080 |
60@3840*2160 60@1920*1080 |
30@3840*2160 45@2688*1512 60@1920*1080 |
30@3840*2160 60@1920*1080 60@1280*720 |

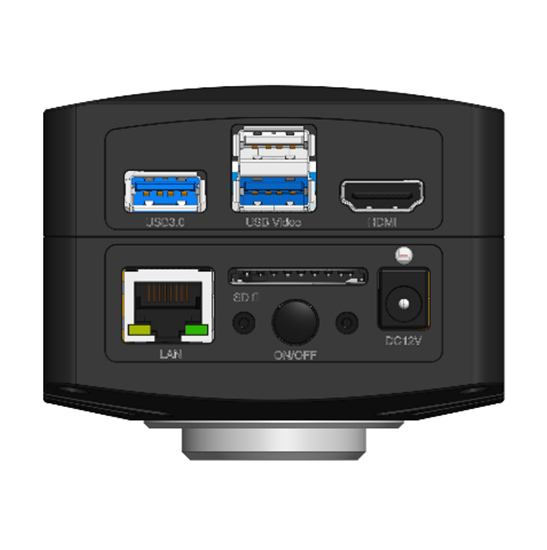

Available Ports on the Back Panel of the Camera Body (Cubic and Flat Shape)
|
Interface or Button |
Function Description |
|
USB Mouse |
Connect USB mouse for easy operation with embedded XCamView software (Flat shape without labelling) |
|
USB3.0 |
Connect USB flash drive to save pictures and videos |
|
USB Video |
Connect PC or other host device to realize video image transmission |
|
HDMI |
Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
|
LAN |
LAN port to connect router and switch to transfer video |
|
SD |
SD card slot, comply with SDIO3.0 standard and SD card could be inserted for video and images saving |
|
ON/OFF |
Power switch |
|
LED |
LED status indicator |
|
DC12V |
Power adapter connection (12V/1A) |
|
Video Output Interface |
Function Description |
|
HDMI Interface |
Comply with HDMI2.0 standard;60fps@4K or 60fps@1080P |
|
LAN Interface |
Support real time resolution switching(4K/1080P/720P) |
|
WiFi Interface |
Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode |
|
USB Video Interface |
Connecting USB Video port of PC for video transfer |
|
Other Function |
Function Description |
|
Video Saving |
Video format:8M(3840*2160) H264/H265 encoded MP4 file |
|
Image Capture |
8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive |
|
Measurement Saving |
Measurement information saved in different layer with image content |
|
ISP |
Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment,Gamma Adjustment, Contrast Adjustment, Brightness Adjustment,Hue Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function |
|
Image Operation |
Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, EDF, Cross Line, Overlay, PIP, Browser(including Picture Browsing, Video Playback, Video Compare, Picture Compare, EDF, Image Processing), Measurement Function |
|
Embedded RTC(Optional) |
To support accurate time on board |
|
Restore Factory Settings |
Restore camera parameters to its factory status |
|
Multiple Language Support |
English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Japanese / Italian / Russian / Dutch / Portuguese |
|
Software Environment under Network/USB Video Output |
|
|
White Balance |
Auto White Balance |
|
Color Technique |
Ultra-Fine Color Engine |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
|
Recording System |
Still Picture or Movie |
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 / 10 / 11(32 & 64 bit) |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 4GB or More |
|
|
Ethernet Port: RJ45 Ethernet Port |
|
|
Display:19” or Larger |
|
|
CD-ROM |
|
|
Operating Environment |
|
|
Operating Temperature (in Centidegree) |
-10°~ 50° |
|
Storage Temperature (in Centidegree ) |
-20°~ 60° |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 12V/1A Adapter |
Dimension

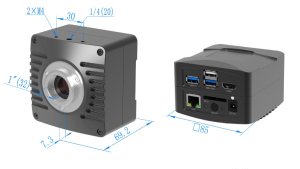

Dimension of BWHC4-4K Series (Cubic and Flat Shape)
Packing Information

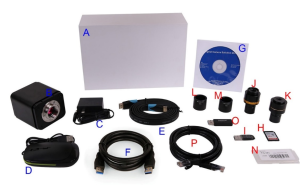

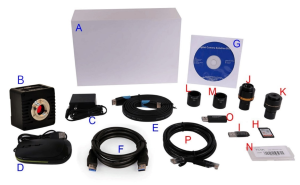

BWHC4-4K Series Camera Packing Information (Cubic and Flat Shape)
|
Standard Packing List |
|||
|
A |
Gift box: L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.7Kg/ box) |
||
|
B |
BWHC4-4K Camera (One of the two different shapes) |
||
|
C |
Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A |
||
|
D |
USB Mouse |
||
|
E |
HDMI Cable |
||
|
F |
USB3.0 A male to A male gold-plated connectors cable /2.0m |
||
|
G |
CD (Driver & utilities software, Ø12cm) |
||
|
Optional Accessory |
|||
|
H |
SD Card(16G or above; Speed: class 10) |
||
|
I |
USB flash drive |
||
|
J |
Adjustable lens adapter |
C-Mount to Dia.23.2mm Eyepiece Tube |
|
|
K |
Fixed lens adapter |
C-Mount to Dia.23.2mm Eyepiece Tube |
|
|
Note: For J and K optional items, please specify your camera type (C-mount, microscope camera or telescope camera), the engineer will help you to determine the right microscope or telescope camera adapter for your application; |
|||
|
L |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
||
|
M |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
||
|
N |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
|
|
O |
USB WiFi adapter |
||
|
P |
Ethernet cable |
||
Sample
Corn Root Tip.L.S Captured with BWHC3-4K8MPA
Three Year Tilia Stem.C.S Captured with BWHC3-4K8MPA
Corn Leaf Captured with BWHC3-4K8MPA
Circuit Board Captured with BWHC3-4K8MPA
