Introduction

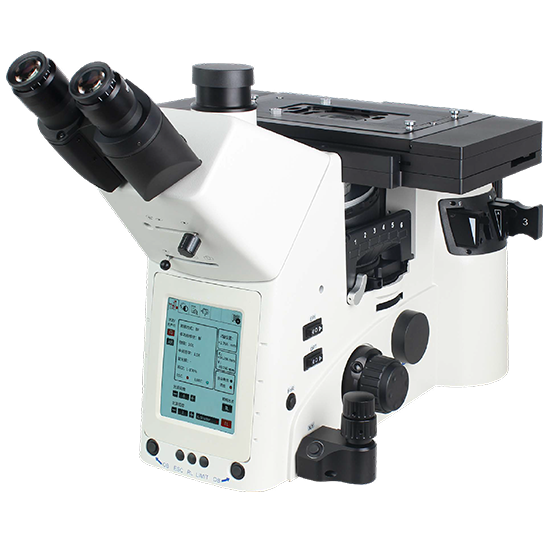

The BS-6045 series research inverted metallographic microscope can place samples above the objectives and observe them from below, and is widely used in industries such as steel, automotive, machinery and electronics.

Details

Model:BS-6045C
Magnification:50×-1000×
Eyepiece: SW10×/22mm
Objective:5×,10×,20×,50×,100×
Nosepiece:Motorized sextuple
Reflected Illumination:5W LED lamp
Viewing Head:Trinocular
Focusing:Motorized
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

Introduction

The BS-6045 series research inverted metallographic microscope can place samples above the objectives and observe them from below, and is widely used in industries such as steel, automotive, machinery and electronics. In cases where the sample is uneven or has a large volume, placing the sample on a platform can facilitate and facilitate quick observation. BS-6045 can be used for large and heavy samples weighing less than 30kg, suitable for magnification observation ranging from tens to thousands of times. BS-6045 is for bright field, dark field, polarizing and DIC observation.

Features

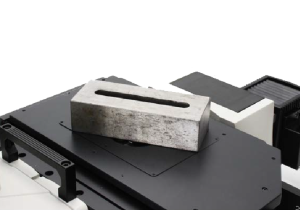

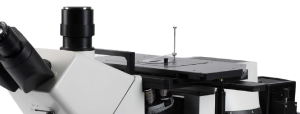

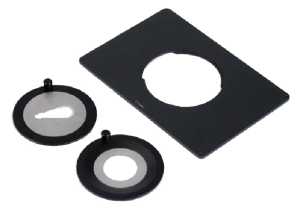

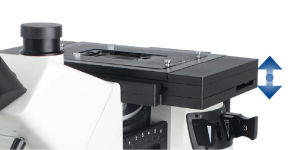

1.Mechanical Stage

Three-layer mechanical stage, maximum load capacity: 30kg. The spacious workspace is suitable for placing large and heavy samples. The surface of the stage is scratch resistant and suitable for observing materials of various materials and shapes. At the same time, there are various stage pallets and holders, meeting the observation and analysis of various small-sized samples. The flexible low position handle ensures the accuracy and comfort of sample movement.

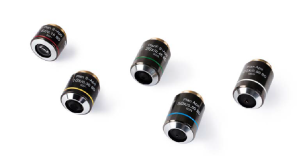

2.Metallurgical specialized objectives

With carefully selected high-transparent glass and advanced coating technology, precise color reproduction is ensured. For various detection needs, there are multiple objectives to choose from, including high-resolution, polarized light, and ultra long working distance objectives.

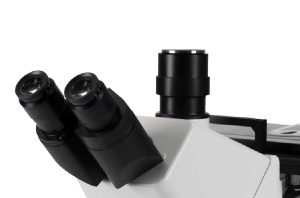

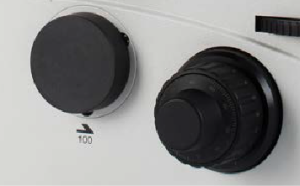

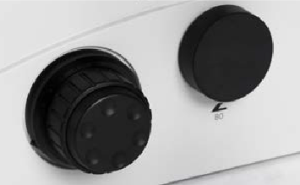

3.Multi optical ports

Optical ports are installed at the microscope head and on both sides for connecting cameras and various application extension accessories. By means of a light splitting lever, the splitting ratio of different optical paths can be achieved, making conversion quick and convenient. Optional C-mount adapters of 0.5X, 0.7X and 1X are available to meet different imaging needs.

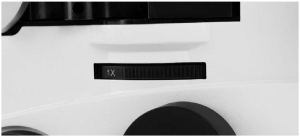

4.Intermediate magnification switching

With built-in turret magnification changeover structure, quick switching between 1x and 1.5x can be achieved, making the sample details clearer and the results more reliable.

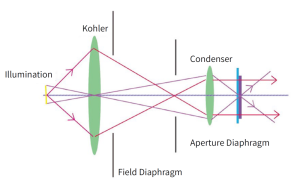

5.Kohler illumination

Koehler illumination is known as the perfect illumination system for microscopes, which provides perfect brightness and uniform field of view while making it possible to expand the functions of microscopes.

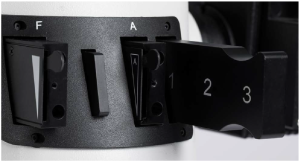

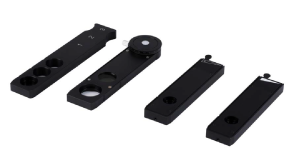

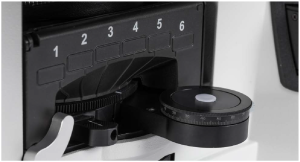

6.Multi adjusting sliders

Field diaphragm and iris aperture can be used to adjust the field of view and the clarity of imaging, as well as to some extent adjust aberrations. The aperture and filters can easily adjust the brightness or color of light. The analyzer slider can adjust polarizing observation and DIC imaging. Multiple sliders are used in combination to ensure high-quality imaging.

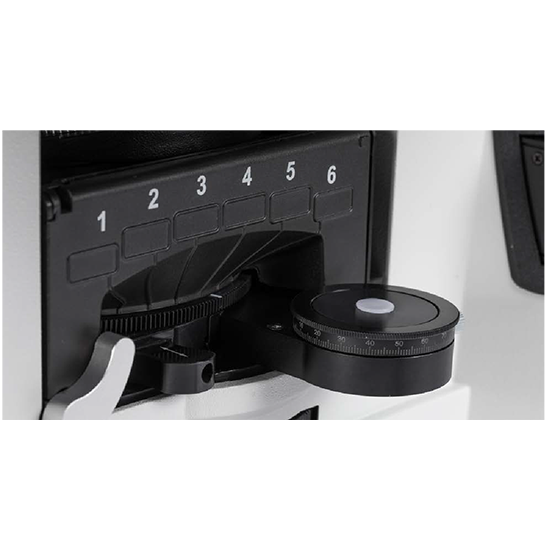

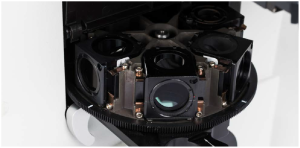

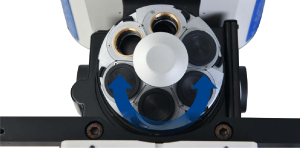

7.Six-positionobservation module turret

It adopts a six-position turntable structure. The turret can be easily taken out from the microscope body and convenient to place different observation modules. When in use, just turn the dial to change in observation mode, with accurate positioning and convenient use.

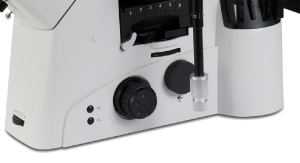

8.Low position knob

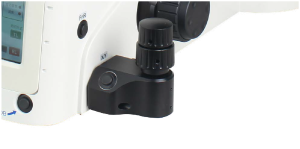

The knob of coaxial focusing system, the stage moving handle and brightness adjustment are designed with a low position, allowing users to operate the microscope in the most comfortable posture of putting hand on the table.

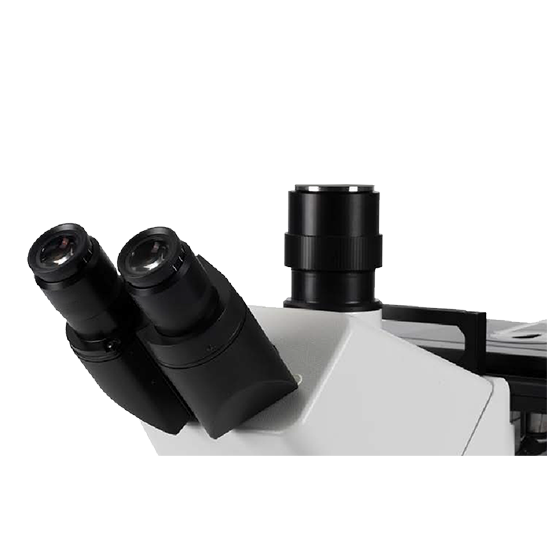

9.45°inclined viewing head

Whether sitting or standing, the users can observe in a natural posture to reduce fatigue. Meanwhile, the interpupillary distance of the viewing head and the diopter of the eyepieces can be adjusted, meeting the usage habits of different users.

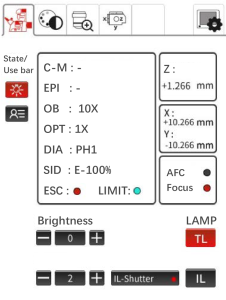

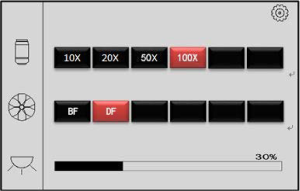

10.Microscope status display

There is an LCD screen on BS-6045B showing the microscope status:

  • Magnification of objectives
  • Observation mode on module turret
  • Brightness display and memory
  • Touch to adjust brightness
  • Display settings



11.Brightness memory function

BS-6045B can remember the illumination brightness of using each objective and automatically adjust the light intensity to the corresponding brightness of each objective when different objectives are converted to each other, reducing visual fatigue and improving work efficiency.

4X



20X



50X



100X

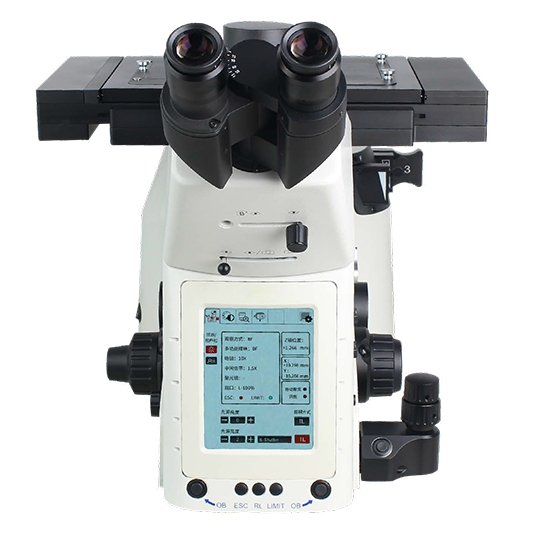

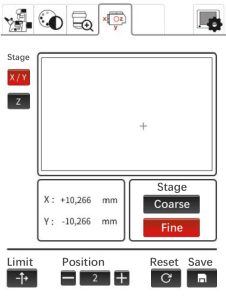

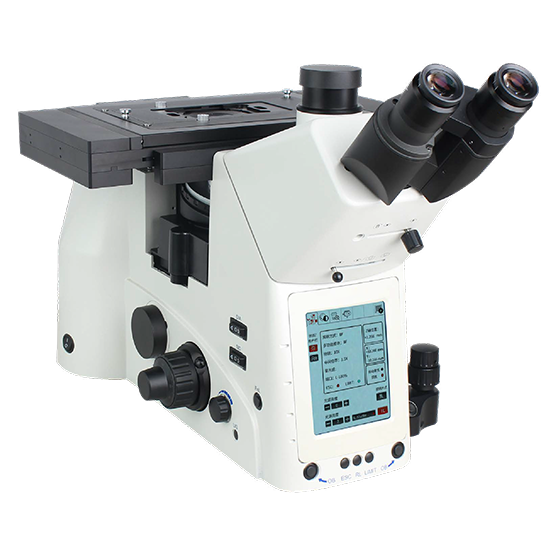

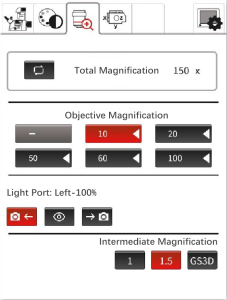

12.Touchscreen, achieving fully motorized control

There is a touch screen at the front of BS-6045C, which can achieve almost all microscope operations, including motorized focusing, stage movement, objectives selection, intermediate magnification conversion, side optical ports selection, aperture adjustment, multifunctional turntable conversion and other functions. The control handle is integrated on the right side of the body, greatly saving desktop space.

Microscope status display



Magnification switching



Stage control



Motorized nosepiece



Motorized stage



 Controller



Motorized focusing

Application

Today, with the continuous deepening of materials science research, a single observation mode can no longer meet the increasingly complex needs of scientific research and testing. BS-6045 can meet various observation needs. Whether it is basic bright field, polarizing or complex DIC observation, clear, realistic and complete images can be obtained.

Observation method

Bright field

Dark field

DIC

Polarizing

BS-6045

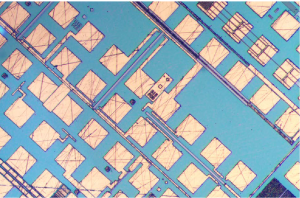

Microchip, Reflection, Bright field

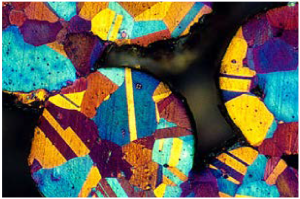

Bronze Powder, Reflection, Polarizing

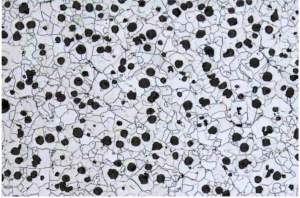

Carburized Metal, Reflection, Bright field

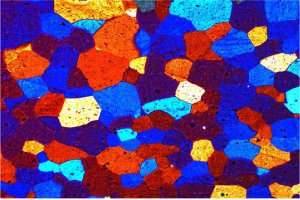

Alloy, Reflection, Polarizing

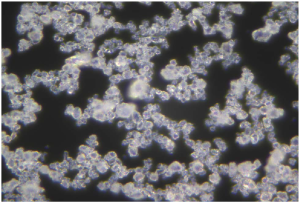

Crystal, Reflection, Dark field

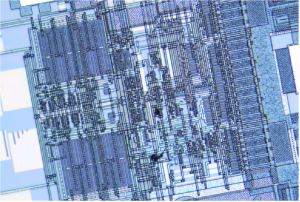

Integrated Circuit, Reflection, DIC

Specification

Item

Specification

BS-6045A

BS-6045B

BS-6045C

Optical System

Infinity Color Correction Optical System

Viewing Head

45° inclined, gemel trinocular head, interpupillary distance: 47-78mm, with Bourbon lens. 3 position beam split ratio: 50/50, 100/0, 0/100.

Eyepiece

Super wide field plan eyepiece SW10×/22mm, diopter adjustable

Super wide field plan eyepiece SW10×/25mm, diopter adjustable

Wide field plan eyepiece WF15×/16mm, diopter adjustable

Wide field plan eyepiece WF20×/12mm, diopter adjustable

Eyepiece EW12.5×/17.5mm

Objectives

NIS45 Infinite LWD Plan Semi-APO Objective (BF & DF)

5×/NA=0.15, WD=20mm

10×/NA=0.3, WD=11mm

20×/NA=0.45, WD=3.0mm

NIS45 Infinite LWD Plan APO Objective (BF & DF)

50×/NA=0.8, WD=1.0mm

100×/NA=0.9, WD=1.0mm

Nosepiece

Sextuple nosepiece with DIC slot





Coded sextuple nosepiece with DIC slot





Motorized sextuple nosepiece with DIC slot





Stage & Accessories

Three-layer mechanical stage, stage size: 340mm*230mm, moving range 130mm*85mm, flexible knob. Different small stages could be attached to main stage.



Motorized stage, stage size: 390mm*230mm, moving range 115mm*75mm, maximum speed 71mm/s, precision 0.1μm. Bidirectional repeatability accuracy ≤5μm, unidirectional repeatability accuracy ≤1μm





Ф20 field aperture

Ф28 field aperture

Drop-shaped field aperture

Universal holder

Culture dish holder

Slice holder

96 well dish

Focusing System

Low-position coaxial coarse and fine focusing, fine division 2μm, Moving range 9mm



Motorized focusing system





Internal magnification

1×, 1.5×

Polarizing Kit

Polarizer for reflected illumination

Analyzer for reflected illumination, 360° rotatable

DIC Kit

DIC 5×-20× (can be used for 5×, 10×, 20× objectives)

DIC 50×-100× (can be used for 50×, 100× objectives)

Reflected Illumination

Reflected illumination, 12V/100W halogen lamp, Koehler illumination, with 6-position turret





Reflected illumination, 5W LED lamp, Koehler illumination, with 6-position coded turret





Reflected illumination, 5W LED lamp, Koehler illumination, with 6-position motorized turret





BF1 bright field module (has function of reducing the light intensity and anti-glare)

BF2 bright field module

DF dark field module

Color correction yellow, green filter, built-in blue filter

Built-in ND6, ND25 filter and color correction filter

Four-band fluorescent module

100W HBO Lamp





Image Output

Output changeable (Left side / Right side / Eyepiece tube)

Splitting ratio: Left / Eyepiece =100/0; Right / Eyepiece =80/20; Left(or Right) / Eyepiece =0/100

LCD Screen

Touch screen, microscope status display





Touch screen, for controlling and showing microscope status





C-mount Adapter

0.5× C-mount adapter

0.7× C-mount adapter

1× C-mount adapter

Other Accessories

Dust cover

Power cord

Calibration slide 0.01mm

Specimen presser

Package

Paper box with pearl cotton (single unit packaging)

Note: ● Standard Outfit, ○ Optional

Dimension

BS-6045A

BS-6045B



BS-6045C



Unit:mm
