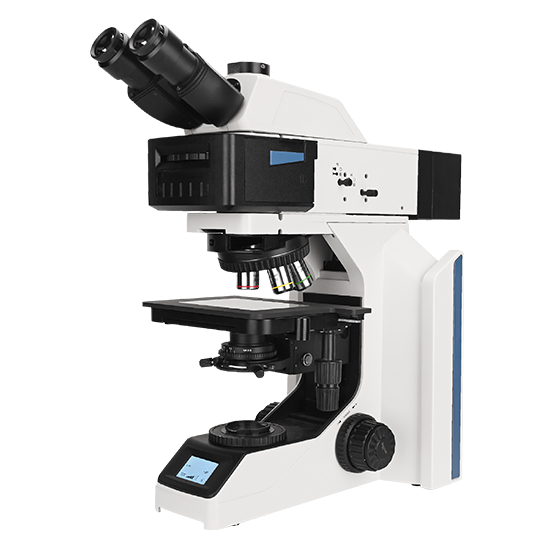

BS-6014 Trinocular Metallurgical Microscope
BS-6014 Trinocular Metallurgical Microscope
BS-6014 Trinocular Metallurgical Microscope
BS-6014 Trinocular Metallurgical Microscope
BS-6014 Trinocular Metallurgical Microscope
BS-6014 Trinocular Metallurgical Microscope
BS-6014 Trinocular Metallurgical Microscope
BS-6014 Trinocular Metallurgical Microscope
BS-6014 Trinocular Metallurgical Microscope
BS-6014 Trinocular Metallurgical Microscope

BS-6014 Trinocular Metallurgical Microscope

Introduction

BS-6006 series metallurgical microscopes are basic level professional metallurgical microscopes which are specially designed for metallurgical analysis and industrial inspections.

Details

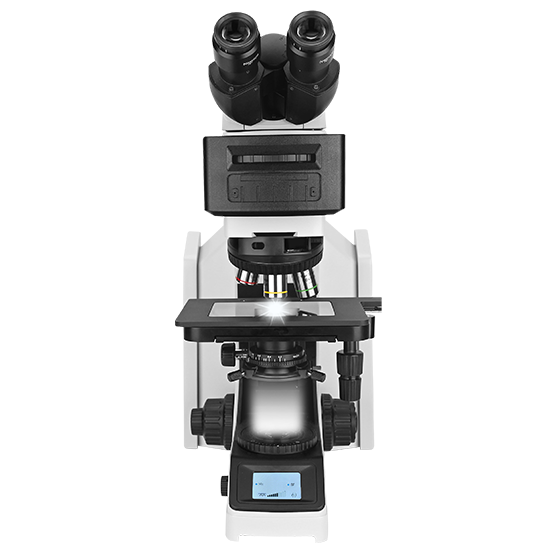

Model:BS-6014
Magnification:50×-500×
Eyepiece:WF10×
Objective:5×,10×,20×,50×
Nosepiece:Quintuple nosepiece
Illumination:3W LED
Viewing Head:Trinocular
Stage:Double-layer rackless stage
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

Introduction

BS-6014 is designed for people who need to work at a desk in front of a microscope every day. The transmitted and reflected illumination are both LED lamp, with adjustable color temperature, providing true color images at all brightness levels. The display screen is paired with an encoder type nosepiece and illuminator, making microscope operation simple and clear. It is capable of meeting the routine microscopy requirements in areas such as metallography, earth science, forensic examination, sampling quality control and material research. It also collaborates with metallographic software platforms to achieve functions such as photo shooting, data analysis, and image display. This is a truly suitable metallurgical microscope for various environments, with comprehensive functions, simple operation, and easy maintenance.

Features

LED illumination

LED illuminator provides illumination for observation methods such as bright field, oblique lighting, and polarizing, with adjustable color temperature. It can provide true color images at all brightness levels. It has long service life, no need to frequently replace light bulbs. Low heat generation, no risk of overheating, no need for a cooling fan, creating a quiet and interference free working environment. Due to the various advantages of LED lighting sources, they are replacing traditional halogen light sources and becoming the preferred light source for microscopes.

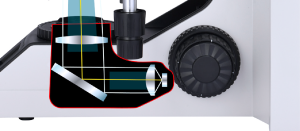

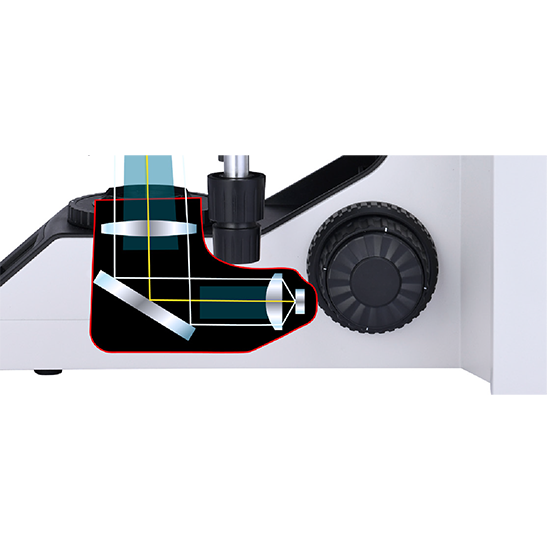

Built-in LED transmitted light source

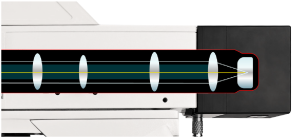

LED reflected light source



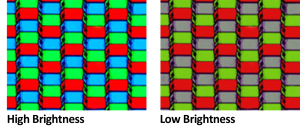

LED light source



Halogen light source



Breaking through the conventional light source conversion mode

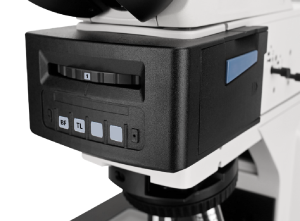

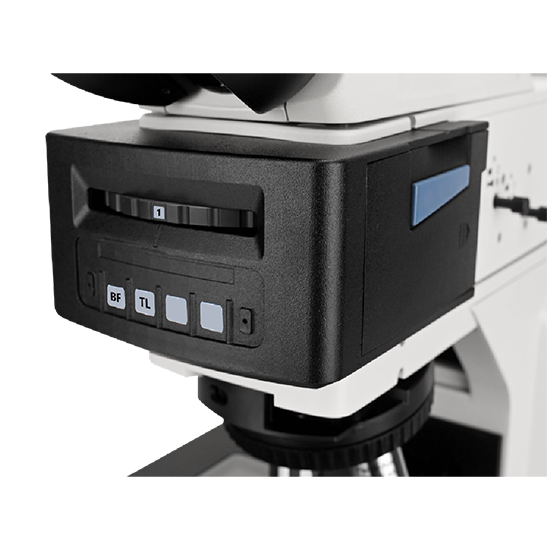

Both the transmitted light source and the reflected light source are linked with a multifunctional turntable. Compared with conventional button type switching buttons, the light source turret conversion is more convenient and more suitable for beginners.



Microscope status display function

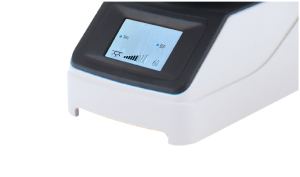

The LCD screen at the front of the microscope can display the usage status of the microscope, including magnification, light intensity, standby mode, etc.



Brightness memory function

It can remember the illumination brightness of using each objective and automatically adjust the light intensity to the corresponding brightness of each objective when different objectives are converted to each other, reducing visual fatigue and improving work efficiency.

4X



20X



50X



100X



Multiple objectives for choose from

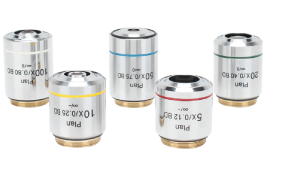

We offer objective ranging from 2.5X-100X that are suitable for various observation modes. Using a 2.5X overview objective can identify the macroscopic structure in the sample, and switching to 100X to observe the alloy edges and material cracks. The conversion of different observation methods can provide a detailed understanding of your sample.



Convenient transportation and storage

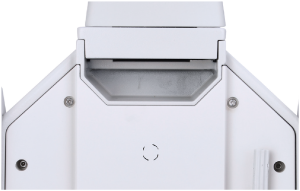

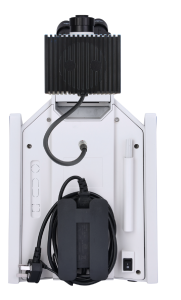

There is a dedicated handling handle on the back of the microscope body, which is lightweight, stable, and structurally sturdy. The microscope backplate is designed with a hub device, which effectively stores long power cords to improve laboratory cleanliness, and also to reduce tripping accidents caused by long power cords during transportation.







Large scale panoramic imaging

The software provides manual stitching function to provide panoramic images for samples beyond the field of view. By collecting or importing images in real-time, they can be quickly stitched together to form a large-sized and high-resolution image.

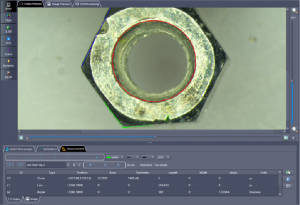

Real time/static measurement

Typical observations and quality control require interactive measurement functions, such as distance, angle, rectangle, circle, and ellipse. All measurement data of this system can be exported as Microsoft Excel sheets.



Deth of field fusion and 3D reconstruction

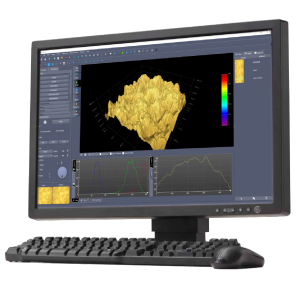

The software provides depth of field fusion and 3D reconstruction functions, both of which can be used in real-time HDR mode. After using the depth of field fusion function, users will receive a 3D reconstructed model that can be imported and displayed in the 2.5D module.



Depth of field fusion



3D reconstruction



HDR image

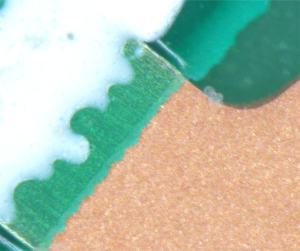

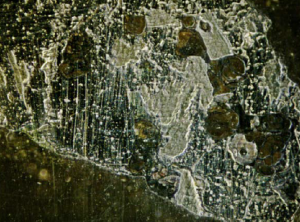

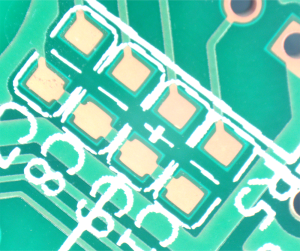

Metallographic samples often have uneven surfaces and severe reflection, which makes it difficult to observe subtle material structures and defect states during observation. The image quality of unclear crystal texture and surface state may affect the judgment of acceptance and measurement results.

By using HDR mode, it is easy to observe the dazzling crystal parts in the metallographic structure that are difficult to observe with conventional mode, improving the accuracy of the image, reducing misjudgment, and increasing the reliability of the measurement.

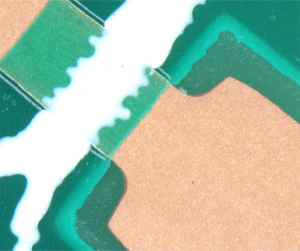

Dazzling high reflective image



HDR image

Application

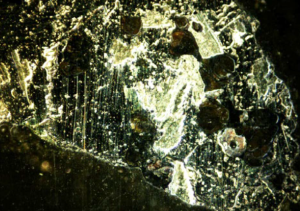

In addition to traditional reflection and transmission bright field, BS-6014 can also be equipped with observation methods such as oblique illumination and polarizing to increase imaging contrast, making it suitable for more application scenarios, such as pharmaceutical chemical engineering, materials research, quality assessment, cleanliness analysis and public inspection methods.

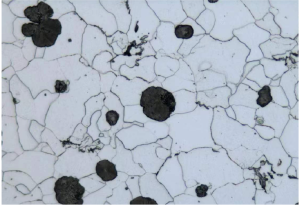

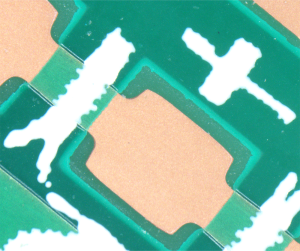

Reflected bright field

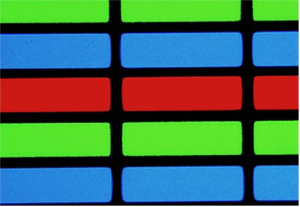

Transmitted bright field

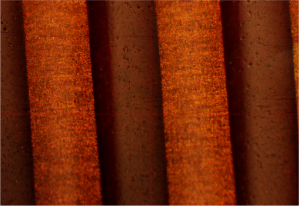

Oblique illumination

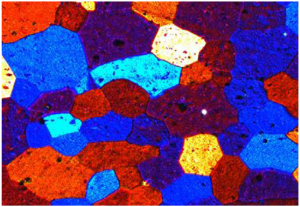

Polarizing

Specification

Item

Specification

BS-6014TR

BS-6014TTR

Optical System

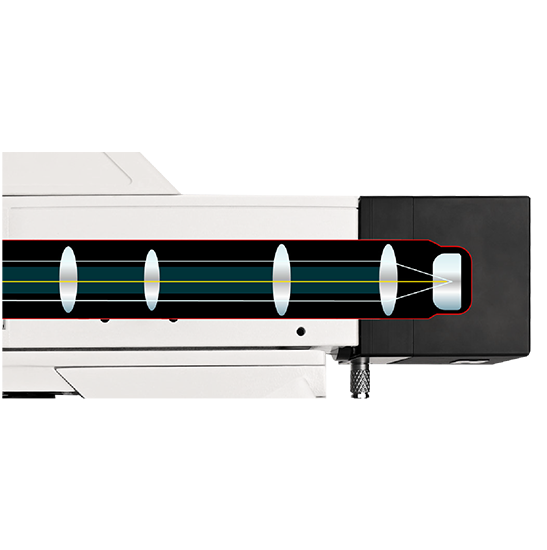

Infinity Color Correction Optical System

Viewing Head

30° inclined, gemel binocular head, interpupillary distance: 48-75mm.

30° inclined, gemel trinocular head, interpupillary distance: 48-75mm. Splitting ratio=50:50

Eyepiece

High eye-point wide field eyepiece WF10X/22mm

Objectives

Plan Achromatic Metallurgical Objectives

(objective diameter 200mm, focal distance 45mm, objective interface 4/5”)

5X/ NA=0.15, WD=20mm

10X/ NA=0.3, WD=11mm

20X/ NA=0.45, WD=3.1mm

50X/ NA=0.5, WD=10.6mm

100X/ NA=0.8, WD=3.5mm

Bright & Dark Field Metallurgical Objectives

5X/ NA=0.15, WD=20mm



10X/ NA=0.3, WD=11mm



20X/ NA=0.45, WD=3.1mm



50X/ NA=0.5, WD=10.6mm



100X/ NA=0.8, WD=3.5mm



Stage

Double-layer rackless stage

Nosepiece

Quintuple nosepiece

Condenser

Abbe condenser NA 0.9, with variable aperture, center adjustable, can be paired with 4X-100X objectives.

Focusing System

Coaxial coarse and fine focusing system, fine precision 0.001mm, with up and down adjustment mechanism, with adjustable elastic device and upper limit device.

Illumination

Transmitted illumination, 3W LED, color temperature adjustable



Reflected illumination, 3W LED, color temperature adjustable. Metallographic vertical illuminator for bright field, Kohler illumination, with field of view aperture and aperture diaphragm, center adjustable.

Dark field module



LCD

LCD screen displaying objective magnification, Sleep mode, lock, brightness and color temperature.

C-mount Adapter

0.5X C-mount adapter

1X C-mount adapter

Package

Paper box with pearl cotton (single unit packaging)

Note: ● Standard Outfit, ○ Optional
