Introduction

BS-5062 series polarizing microscopes feature a highly robust construction and first class optics to provide a long life and excellent quality images. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available. The microscopes are specifically designed for geology, minerals and material areas. They also can be used in chemical fiber, semiconductor and pharmaceutical industries.

Details

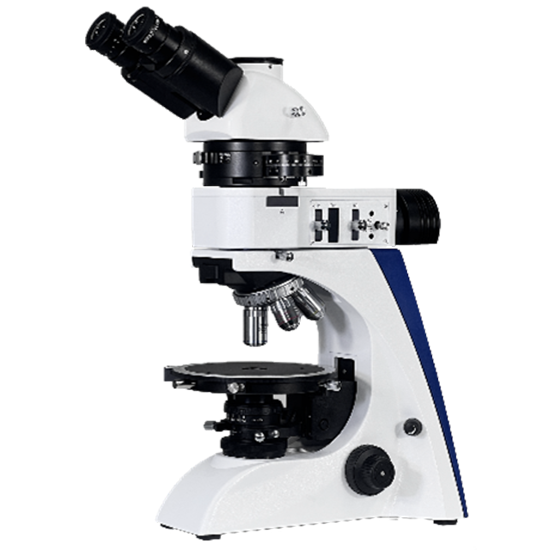

Model:BS-5062TTR(LED)
Magnification:40×-500×
Eyepiece:WF10×
Objective:4×,10×,20×,40×,50×
Nosepiece:Quintuple
Focus:Coaxial Coarse
Viewing Head:Trinocular
Illumination:Reflected illumination: 5W LED lamp, input voltage: 100V-240V
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

Introduction

BS-5062 series polarizing microscopes feature a highly robust construction and first class optics to provide a long life and excellent quality images. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available. The microscopes are specifically designed for geology, minerals and material areas. They also can be used in chemical fiber, semiconductor and pharmaceutical industries.

Features

Perfect optical system

Excellent infinite optical system with high resolution and perfect definition. High resolution and perfect definition from infinity correct optical system. 100X water objective is available for convenient viewing.



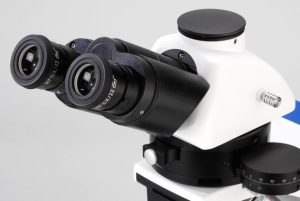

Viewing head

Professional binocular head can keep the cross in the right-hand eyepiece always same when the eyepiece tubes turned.



Analyzer unit

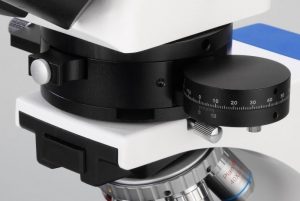

Analyzer, 360° rotatable analyzer with division, can be locked and moved out of the light path. Bertrand lens, built-in, focus adjustable.



Nosepiece, stage & polarizing unit

Centering nosepiece, stain-free infinity plan objective.

Rotatable 360° stage, division 1°, vernier division 6’, adjustable center which can be locked.

Polarizing unit, 360° rotatable, scaled, can be locked.





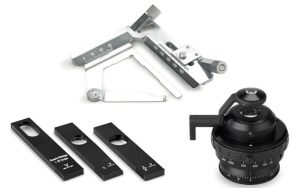

Mechanical stage, compensator and condenser

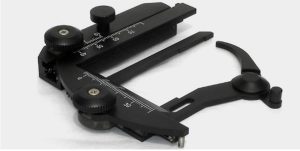

POL-Stage1, attached polarizing mechanical stage. Focusing needs to be adjusted first before use, which is inconvenient compared to POL-Stage 2.

POL-Stage2, attached polarizing mechanical stage, professional design for laboratory’s user to avoid objective hitting.

Compensator: quartz wedge, first class red slip, λ/4 slip.

Swing-out condenser, swing the lens in to get excellent image when using high power objective to make observation.



Application

BS-5062 series polarizing microscopes are ideal instrument in geology, petroleum, coal, mineral, chemicals, semiconductor and pharmaceutical inspection fields. They are widely used in academic demonstration and scientific research areas.

Specification

Item

Specification

BS-5062T

(LED)

BS-5062TR

(LED)

BS-5062TTR

(LED)

Optical System

Infinite Optical System

Viewing Head

Inclined 30° binocular tube, 360° rotatable, interpupillary distance: 48-76mm

Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48-76mm, splitting ratio: eyepiece: trinocular=100:0 or 20:80

Eyepiece

Wide field eyepiece WF10X/22mm, adjustable, tube diameter: 30mm





Wide field eyepiece WF10X/22mm, adjustable, with reticule 0.1mm





Wide field eyepiece WF10X/20mm, adjustable, tube diameter: 30mm



Wide field eyepiece WF10X/20mm, adjustable, with reticule 0.1mm



Objective

Stain-free Infinity Plan Objectives (Transmitted)

4X/ NA 0.10, WD=12.1mm



10X/ NA 0.25, WD=4.64mm



20X/ NA 0.40 (S), WD=2.41mm



40X/ NA 0.66 (S), WD=0.65mm



60X/ NA 0.80 (S), WD=0.33mm



(Oil) 100X/ NA 1.25 (S), WD=0.12mm



Stain-free Infinity Long Working Distance Plan Objectives (Reflected)

5X/ NA 0.15, WD=21.0mm



10X/ NA 0.30, WD=20.0mm



20X/ NA 0.40, WD=15.0mm



50X/ NA 0.55, WD=10.0mm



(Dry) 100X/ NA 0.85, WD=3.0mm



Nosepiece

Quintuple nosepiece, center adjustable

Analyzer Unit

Rotatable 360°, module type, can be locked

Bertrand Lens

Bertrand lens, built-in, focus adjustable.

Optical Compensator

λ slip, first class red

1/4λ slip

(Ⅰ-Ⅳ Class) Quartz wedge

(Ⅰ-Ⅳ Class) Quartz wedge, lengthened

Stage

Coaxial coarse and fine focusing knobs, travel range: 25mm, fine stroke per rotation: 0.2mm, fine division: 2um. Revolving round stage, rotatable 360°, 360° rotatable, can be locked. Division 1°, vernier division 6′. Diameter Φ174mm.



Coaxial coarse and fine focusing knobs, travel range: 25mm, fine stroke per rotation: 0.2mm, fine division: 2um. Revolving round stage, rotatable 360°, 360° rotatable, can be locked. Division 1°, vernier division 6′. Diameter Φ148mm.





POL-Stage1, Polarizing attached mechanical stage

POL-Stage2, Polarizing attached mechanical stage, thinner, does not affect the rotation of the objective lens

Focusing

Coaxial coarse and fine focusing knobs, travel range: 25mm, fine stroke per rotation: 0.2mm, fine division: 2um.

Swing-out Condenser

N.A.0.9/0.13 swing-out condenser



Polarizing Unit

with scale, 360° rotatable, can be locked



Illumination

Reflected illuminator

Transmitted illumination: 5W LED lamp, input voltage: 100V-240V

Reflected illumination: 5W LED lamp, input voltage: 100V-240V



Transmitted illumination: 12V/30W Halogen lamp, input voltage: 100V-240V

Reflected illumination: 12V/50W Halogen lamp, input voltage: 100V-240V



Filter

Blue filter for transmitted (Φ45)



Amber filter for transmitted (Φ45)



Green filter for transmitted (Φ45)



Neutral filter for transmitted (Φ45)



Blue filter for reflected (Φ21)



Amber filter for reflected (Φ21)



Green filter for reflected (Φ21)



Neutral filter for reflected (Φ21)



C-mount

0.5X C-mount adapter, adjustable focus

0.75X C-mount adapter, adjustable focus

1X C-mount adapter, adjustable focus

Packing

Packing size 520mm*470mm*285mm, gross weight 12.5kgs, net weight 10kgs





Packing size 520mm*470mm*430mm, gross weight 15kgs, net weight 11.5kgs





Packing size 520mm*470mm*430mm, Gross Weight 16kgs, Net Weight 12.5kgs





Note: ● Standard Outfit, ○ Optional

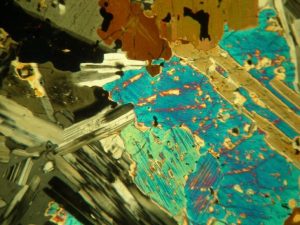

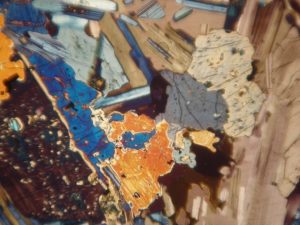

Sample Image



System Diagram

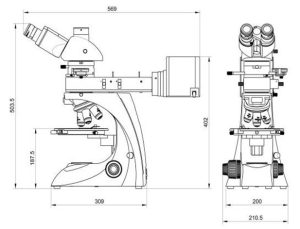

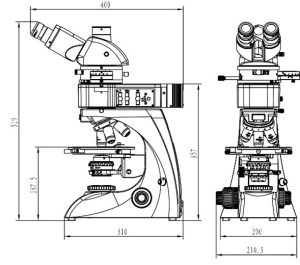

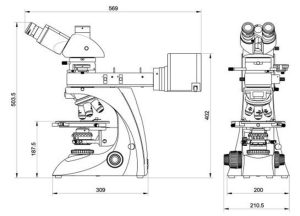

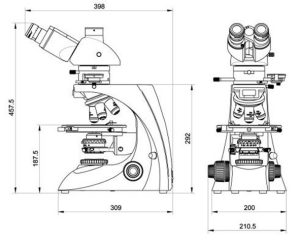

Dimension

BS-5062T



BS-5062TR



BS-5062TTR



BS-5062TTR(LED)



Unit: mm
