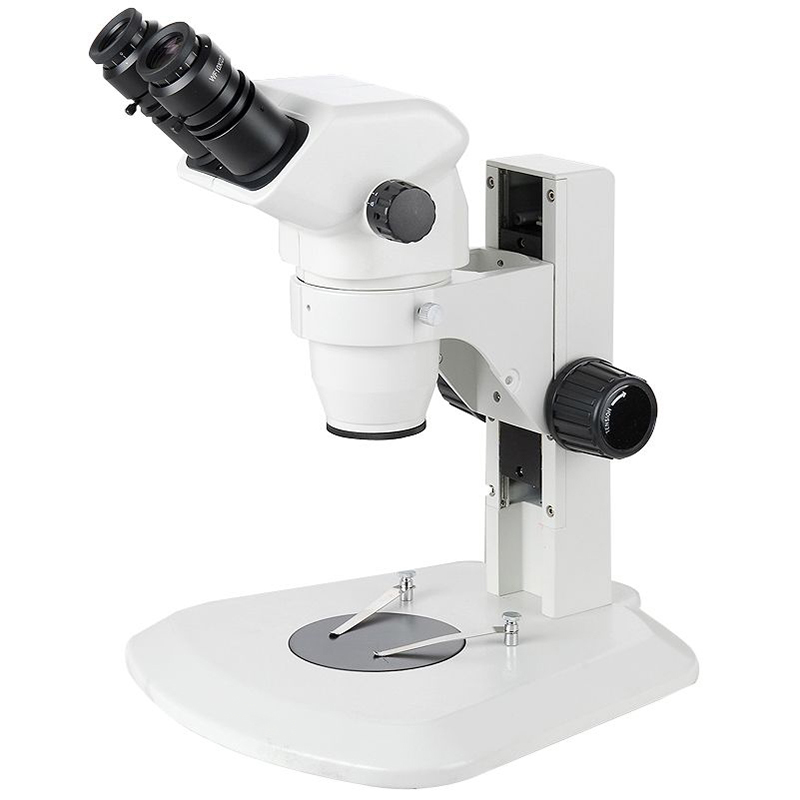

BS-3036A2 Binocular Zoom Stereo Microscope

Introduction

BS-3036A2 has excellent and advanced optical performance, provide a plan and clear micro image, superior image is available even at the edge of viewing field. BS-3036A2 is widely applied to biological, medical scientific research, electronic industry online testing and other field, meeting the demand of high accuracy measurement.

Details

Model:BS-3036A2

Viewing Head:Binocular

Magnification:6.7×-45×

Eyepiece:WF10TX

Objective:0.67x-4.5x

Working Distance:100mm

Enquiry now

Leave a message

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BS-3036A2 has excellent and advanced optical performance, provide a plan and clear micro image, superior image is available even at the edge of viewing field. New designed eyepiece with adjustable diopter, zoom objectives and varieties of auxiliary objectives, expand the magnification range to acquire clearer and brighter micro image. Brand new ergonomic design, long time use without fatigue, ensure easy and comfortable operation. BS-3036A2 is widely applied to biological, medical scientific research, electronic industry online testing and other field, meeting the demand of high accuracy measurement.

Features

1.Eyepieces

High eyepoint, wide field eyepiece 10X/22mm (Standard). There are 15X/16mm, 20X/12mm and 30X/8mm for option to meet different requirements.

2.Viewing head

45° or 60° viewing head, according with ergonomics, is the best inclination for observation. To observe in comfortable position, long time and high efficiency working is available. Connect trinocular tube to camera system, image output, analysis and storage are available.

3.Focus system

Precision guide rail ensures flexible and accurate adjustment. Tension adjustable focusing knobs help flexible and comfortable operation. Both sides of zoom knobs are adjustable.

4.Multiple illumination and observation

New integrated design, combine high bright LED with base & stand. Independent intensity adjustable switch for top and bottom illuminators, creates uniform, long-lasting and stable images under different magnification. Optional illuminators help you to meet different observation needs.

5.Different auxiliary objectives

Working distance and magnification can be accordingly adjusted by using different auxiliary objectives. There are 6 options: 0.3X, 0.4X 0.5X, 0.7X, 1.5X and 2X, to provide the best magnification system and suitable working distance for different needs.

Specification

Item	Specification		BS-3036A1	BS-3036A2	BS-3036A3
Viewing Head	45° inclined binocular head, continuous zoom objective 0.67X-4.5X, working distance 100mm, interpupillary distance: 54-76mm, with built-in interlocking mechanism, fixed eyepiece tube		●	●	●
	45° inclined trinocular head, continuous zoom objective 0.67X-4.5X, working distance 100mm, interpupillary distance: 54-76mm, with built-in interlocking mechanism, fixed eyepiece tube		○	○	○
	60° inclined binocular head, continuous zoom objective 0.67X-4.5X, working distance 100mm, interpupillary distance: 54-76mm, with built-in interlocking mechanism, fixed eyepiece tube		○	○	○
	45° inclined binocular head, continuous zoom objective 0.8X-5X, working distance 100mm, interpupillary distance: 54-76mm, with built-in interlocking mechanism, fixed eyepiece tube		○	○	○
	45° inclined binocular head, continuous zoom objective 1X-6.7X, working distance 100mm, interpupillary distance: 54-76mm, with built-in interlocking mechanism, fixed eyepiece tube		○	○	○
Eyepiece	High eyepoint wide field eyepiece WF10TX/22mm, with adjustable diopter		●	●	●
	High eyepoint wide field eyepiece WF10TX/22mm, with micrometer and adjustable diopter		○	○	○
	High eyepoint wide field eyepiece WF15TX/16mm, with adjustable diopter		○	○	○
	High eyepoint wide field eyepiece WF15TX/16mm, with micrometer and adjustable diopter		○	○	○
	High eyepoint wide field eyepiece WF20TX/12mm, with adjustable diopter		○	○	○
	High eyepoint wide field eyepiece WF20TX/12mm, with micrometer and adjustable diopter		○	○	○
	High eyepoint wide field eyepiece WF30TX/8mm, with adjustable diopter		○	○	○
Objective	Zoom objective	0.67X-4.5X	●	●	●
		0.8X-5X	○	○	○
		1X-6.7X	○	○	○
	Auxiliary objective	0.3X, WD=287mm	○	○	○
		0.4X, WD=217mm	○	○	○
		0.5X, WD=177mm	○	○	○
		0.7X, WD=120mm	○	○	○
		1.5X, WD=47mm	○	○	○
		2X, WD=26mm	○	○	○
Working Distance	100mm		●	●	●
Focus Holder	Focus holder BSZ-A2, tension adjustable, moving range 48.5mm, pillar hole size: Ф32mm, microscope mount size: Ф76mm, distance between the 2 holes: 150mm		●		●
Stand	BSZ-B4 Pillar stand, Pole height 228mm, pole diameter Φ32mm, with Clips, Φ100 black & white plate, Base size: 273*206mm, no illumination. Using with BSZ-A2		●
	BSZ-B6 integrated stand and base, Φ100 black & white plate, focusing range 106mm, base size: 303*290mm, with focus holder			●
	BSZ-BL3 Pillar stand, Pole height 260mm, pole diameter Φ32mm, with Clips, Φ100 glass plate, Base size: 303*290mm, LED illumination with separate control. Using with BSZ-A2				●
Illumination	LED upper light source, only for BSZ-BL1 and BSZ-BL3				●
Gem Clap	Gem clap		○	○	○
C-Mount	0.35X C-mount adapter, adjustable focus		○	○	○
	0.5X C-mount adapter, adjustable focus		○	○	○
	0.65X C-mount adapter, adjustable focus		○	○	○
	1X C-mount adapter, adjustable focus		○	○	○
	Electronic eyepiece connector		○	○	○
Measurement Stage	Precision measurement stage (0-25mm/150*150mm), with mechanical micrometer. Installation size 95mm		○	○	○
Measurement Stage	Precision measurement stage (0-25mm/150*150mm), with digital micrometer. Installation size 95mm		○	○	○
Other	Dust proof mirror, Ф54mm, installation thread 48mm		○	○	○
Other	Ring lamp connector, Ф54mm, installation thread 48mm		○	○	○

Note: ● Standard Outfit, ○ Optional

Application

Electronic industry inspection

BS-3036A2 is widely used for industry inspection and analysis, such as for welding transistors spot, testing superficial phenomenon for different material crevices and stomatal corrosion. BS-3036A2 can be assembled in machine equipment, used for manufacturing small precision components, monitor the producing process, test the components and assembly tools.

PCB

LED bracket

Biomedical research

BS-3036A2 can be used for basic biology research of medical & science, and also suitable for teaching experiment course in schools and colleges. It is a useful assistance for studying zoology, botany, entomology, histology, anatomy, dermatology, etc.
