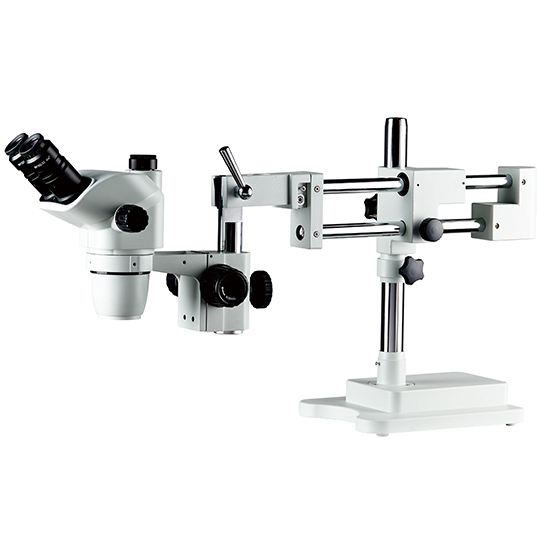

BS-3030T-ST2 Zoom Stereo Microscope with Universal Stand
Introduction
Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3030 series Zoom Stereo Microscopes offer high quality 3D images throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances. Various stand, Cold light source and ring light are optional for these microscopes. USB2.0, USB3.0, HDMI, WIFI, LCD digital cameras can be attached to the trinocular stereo microscopes to take pictures, videos, do measurements and image analysis.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 2-3 Weeks after Receiving Payment
Introduction
Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3030 series Zoom Stereo Microscopes offer high quality 3D images throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances. Various stand, Cold light source and ring light are optional for these microscopes. USB2.0, USB3.0, HDMI, WIFI, LCD digital cameras can be attached to the trinocular stereo microscopes to take pictures, videos, do measurements and image analysis.
Features
1.High quality and excellent cost performance.
2.Ergonomic design, sharp image display, wide viewing field and easy to operate.
3.Providing a wide viewing field of Φ22mm with the zoom ratio of 1:6.7, zoom range: 0.67×-4.5×.
4.Transmitted & Reflected 3W LED Illumination are available for BS-3030B and BS-3030BT.
5.Ideal instrument in academic, medical and industrial field.
Application
BS-3030 series stereo microscopes are of great value in a variety of applications such as school education, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.
Specification
|
Item |
Specification |
BS-3030B-ST1 |
BS-3030T-ST1 |
BS-3030B-ST2 |
BS-3030T-ST2 |
|
|
Optical system |
Greenough Optical System |
● |
● |
● |
● |
|
|
Viewing Head |
Binocular head, inclined at 45°, rotatable 360°, Interpupillary Distance 54-75mm, diopter adjustment on both eyepieces |
● |
|
● |
|
|
|
Trinocular head, inclined at 45°, rotatable 360°, Interpupillary Distance 54-75mm, diopter adjustment on both eyepieces, light distribution: eyepiece: trinocular=50:50 |
|
● |
|
● |
||
|
Eyepiece |
WF10×/Φ22mm |
● |
● |
● |
● |
|
|
WF15×/Φ16 mm |
○ |
○ |
○ |
○ |
||
|
WF20×/Φ12 mm |
○ |
○ |
○ |
○ |
||
|
WF25×/Φ9 mm |
○ |
○ |
○ |
○ |
||
|
WF30×/Φ8 mm |
○ |
○ |
○ |
○ |
||
|
WF10×Φ22mm Eyepiece with cross line(Eyepiece micrometer) |
○ |
○ |
○ |
○ |
||
|
Objective |
Zoom objective |
0.67×-4.5× |
● |
● |
● |
● |
|
Auxiliary objective |
0.3×, W.D. 287mm |
○ |
○ |
○ |
○ |
|
|
0.5×, W.D. 177mm |
○ |
○ |
○ |
○ |
||
|
0.7×, W.D. 113mm |
○ |
○ |
○ |
○ |
||
|
0.75×, W.D. 116mm |
○ |
○ |
○ |
○ |
||
|
1.5×, W.D. 47mm |
○ |
○ |
○ |
○ |
||
|
2×, W.D. 26mm |
○ |
○ |
○ |
○ |
||
|
Zoom Ratio |
1:6.7 |
● |
● |
● |
● |
|
|
Magnification |
6.7×-45×, can be extended to 2×-270× |
● |
● |
● |
● |
|
|
Working Distance |
105mm |
● |
● |
● |
● |
|
|
Head Mount |
76mm |
● |
● |
● |
● |
|
|
Illumination |
LED ring light(LED-56A, LED-64, LED-144A etc.) |
○ |
○ |
○ |
○ |
|
|
Cold light source |
○ |
○ |
○ |
○ |
||
|
Focusing Arm |
Coarse focusing, focusing range 50mm |
● |
● |
● |
● |
|
|
Universal Pillar Stand |
ST1 single arm universal stand, no illumination, can expand the operating range and observe objects in any direction. Vertical column height: 380mm Column diameter: φ32mm Horizontal movement: 235mm Base: 230x230x40mm With FA1 coarse focusing arm(76mm mounting size) |
● |
● |
|
|
|
|

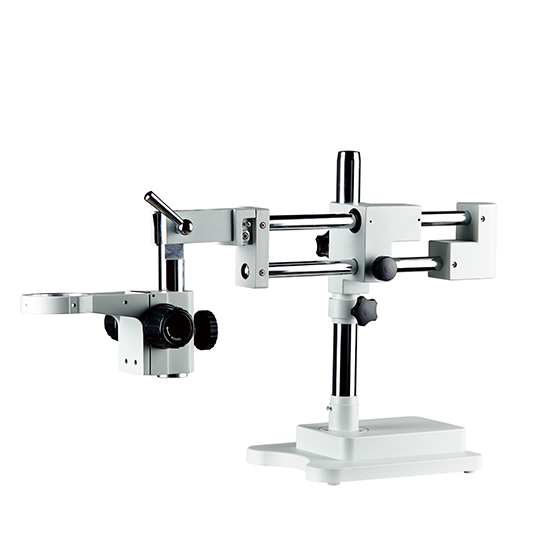

ST2 double arm universal stand, no illumination, can expand the operating range and observe objects in any direction. Vertical column height: 380mm Column diameter: Ф32mm Horizontal movement: 235mm Base: 210x260x50mm With FA1 coarse focusing arm(76mm mounting size) |
|
|
● |
● |
||
|
Attachment |
0.5× C-mount adapter (adjustable) |
|
● |
|
● |
|
|
Trinocular tube 23.2mm(for digital eyepiece) |
|
○ |
|
○ |
||
|
Packing |
1pc/carton, 50cm*50cm*30cm, Net weight: 16kg, Gross weight: 18kg |
● |
● |
|
|
|
|
1pc/carton, 50cm*50cm*30cm, Net weight: 22kg, Gross weight: 24kg |
|
|
● |
● |
||
Note: ● Standard Outfit, ○ Optional
