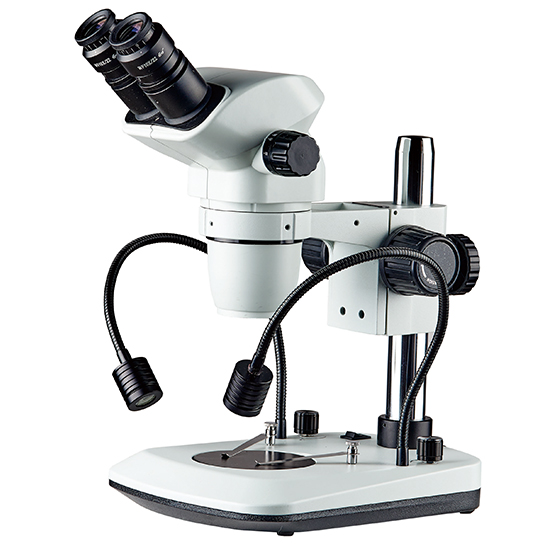

BS-3030C Binocular Zoom Stereo Microscope
Introduction
Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3030 series Zoom Stereo Microscopes offer high quality 3D images throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances. Various stand, Cold light source and ring light are optional for these microscopes.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3030 series Zoom Stereo Microscopes offer high quality 3D images throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances. Various stand, Cold light source and ring light are optional for these microscopes.
Features
1.High quality and excellent cost performance.
2.Ergonomic design, sharp image display, wide viewing field and easy to operate.
3.Providing a wide viewing field of Φ22mm with the zoom ratio of 1:6.7, zoom range: 0.67×-4.5×.
4.Transmitted & Reflected 3W LED Illumination are available for BS-3030B and BS-3030BT.
5.Ideal instrument in academic, medical and industrial field.
Application
BS-3030 series stereo microscopes are of great value in a variety of applications such as school education, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.
Specification
|
Item |
Specification |
BS-3030C |
BS-3030CT |
|
|
Optical system |
Greenough Optical System |
● |
● |
|
|
Viewing Head |
Binocular head, inclined at 45°, rotatable 360°, Interpupillary Distance 54-75mm, diopter adjustment on both eyepieces |
● |
|
|
|
Trinocular head, inclined at 45°, rotatable 360°, Interpupillary Distance 54-75mm, diopter adjustment on both eyepieces, light distribution: eyepiece: trinocular=50:50 |
|
● |
||
|
Eyepiece |
WF10×/Φ22mm |
● |
● |
|
|
WF15×/Φ16 mm |
○ |
○ |
||
|
WF20×/Φ12 mm |
○ |
○ |
||
|
WF25×/Φ9 mm |
○ |
○ |
||
|
WF30×/Φ8 mm |
○ |
○ |
||
|
WF10×Φ22mm Eyepiece with cross line(Eyepiece micrometer) |
○ |
○ |
||
|
Objective |
Zoom objective |
0.67×-4.5× |
● |
● |
|
Auxiliary objective |
0.3×, W.D. 287mm |
○ |
○ |
|
|
0.5×, W.D. 177mm |
○ |
○ |
||
|
0.7×, W.D. 113mm |
○ |
○ |
||
|
0.75×, W.D. 116mm |
○ |
○ |
||
|
1.5×, W.D. 47mm |
○ |
○ |
||
|
2×, W.D. 26mm |
○ |
○ |
||
|
Zoom Ratio |
1:6.7 |
● |
● |
|
|
Magnification |
6.7×-45×, can be extended to 2×-270× |
● |
● |
|
|
Working Distance |
105mm |
● |
● |
|
|

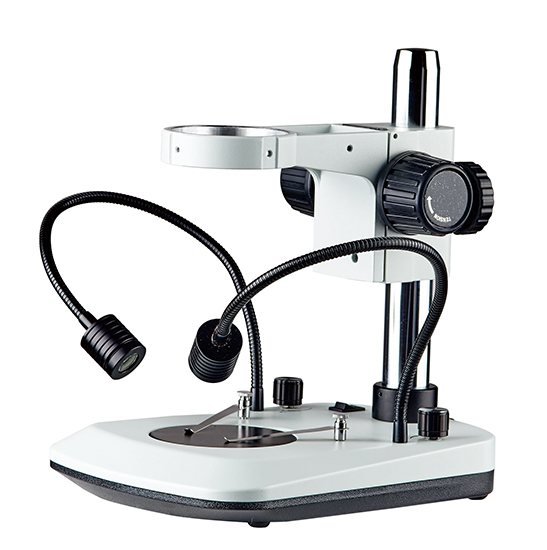

Focusing |
Coarse focus knob with tension adjustable, focusing arm moving range: 50mm. Focusing arm diameter: 76mm |
● |
● |
|
|
Column Height |
Round pole, height 240mm, diameter φ32mm |
● |
● |
|
|
Round pole, height 500mm, diameter φ32mm (used with 0.3× and 0.5× auxiliary objective) |
○ |
○ |
||
|
Base Size |
205×275×40mm, with clips |
● |
● |
|
|
Illumination |
Reflected illumination: 5V 3W double LED light guide, independent switch, brightness adjustable |
● |
● |
|
|
Transmitted illumination: 5V 3W LED, brightness adjustable |
○ |
○ |
||
|
Power supply |
Built-in wide voltage power supply: 110V-240V |
● |
● |
|
|
Stage Plate |
Glass Insert Plate, Diameter 95mm |
● |
● |
|
|
White&Black round plate, Diameter 95mm |
● |
● |
||
|
Attachment |
0.5× C-mount adapter (adjustable) |
|
● |
|
|
Trinocular tube 23.2mm(for digital eyepiece) |
|
○ |
||
|
Packing |
1pc/carton, 51cm*37cm*31cm, Net weight: 5.5kg, Gross weight: 6.5kg |
● |
● |
|
