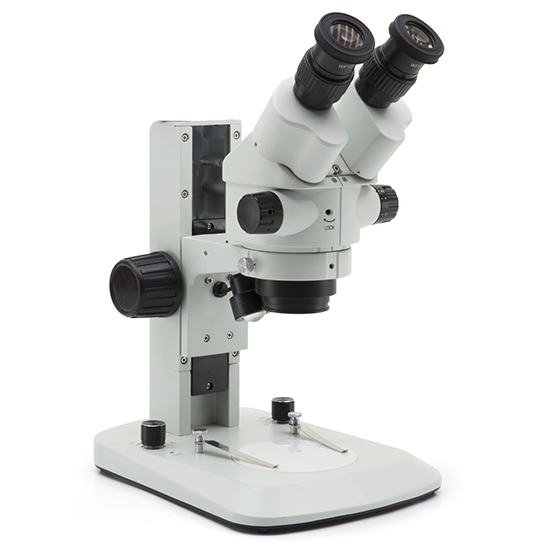

BS-3026B1 Binocular Zoom Stereo Microscope
Introduction
BS-3026B1 Stereo Zoom Microscope offers sharp 3D images that remain clear throughout the zoom range. This microscope is highly popular and cost-effective. Optional eyepieces and auxiliary objectives can expand the magnification range and working distances.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
BS-3026B1 Stereo Zoom Microscope offers sharp 3D images that remain clear throughout the zoom range. This microscope is highly popular and cost-effective. Optional eyepieces and auxiliary objectives can expand the magnification range and working distances. Cold light and ring light can be chosen for this microscope.
Features
1.Larger magnification
7×-45× zoom magnification power with sharp images, can be extended to 3.5×-180× with optional eyepiece and auxiliary objective.
2.Eyepieces
High eyepoint WF10×/20mm eyepiece.
3.Overlong effective working distance
Long working distance to create enough space for the users.
4.Structure design of ergonomics
Ergonomic design, sharp image, wide viewing field, high depth of field and easy to operate, less fatigue when long time use.
5.Wide application
Ideal instrument in education, medical and industrial field.
Specification
|
Item |
Specification |
BS-3026 B1 |
BS-3026 B2 |
BS-3026 T1 |
BS-3026 T2 |
|
|
Viewing Head |
45° inclined binocular head, 360° rotatable, interpupillary distance: 54-76mm, visual adjustment: ±5 diopter. Zoom objective 0.7X-4.5X, working distance: 100mm |
● |
● |
|
|
|
|
45° inclined trinocular head, 360° rotatable, interpupillary distance: 54-76mm, visual adjustment: ±5 diopter. Zoom objective 0.7X-4.5X, working distance: 100mm |
|
|
● |
● |
||
|
45° inclined binocular head with fixed eyepiece tube, 360° rotatable, interpupillary distance: 54-76mm. Zoom objective 0.7X-4.5X, working distance: 100mm |
○ |
○ |
|
|
||
|
45° inclined trinocular head with fixed eyepiece tube, 360° rotatable, interpupillary distance: 54-76mm. Zoom objective 0.7X-4.5X, working distance: 100mm |
|
|
○ |
○ |
||
|
Eyepiece |
High eyepoint wide field eyepiece WF10X/20mm |
● |
● |
● |
● |
|
|
High eyepoint wide field eyepiece WF10X/20mm, with micrometer |
○ |
○ |
○ |
○ |
||
|
High eyepoint wide field eyepiece WF10X/20mm, with adjustable diopter |
○ |
○ |
○ |
○ |
||
|
High eyepoint wide field eyepiece WF10X/20mm, with micrometer and adjustable diopter |
○ |
○ |
○ |
○ |
||
|
High eyepoint wide field eyepiece WF15X/15mm |
○ |
○ |
○ |
○ |
||
|
High eyepoint wide field eyepiece WF15X/15mm, with micrometer |
○ |
○ |
○ |
○ |
||
|
High eyepoint wide field eyepiece WF15X/15mm, with adjustable diopter |
○ |
○ |
○ |
○ |
||
|
High eyepoint wide field eyepiece WF15X/15mm, with micrometer and adjustable diopter |
○ |
○ |
○ |
○ |
||
|
High eyepoint wide field eyepiece WF20X/10mm |
○ |
○ |
○ |
○ |
||
|
High eyepoint wide field eyepiece WF20X/10mm, with micrometer |
○ |
○ |
○ |
○ |
||
|
High eyepoint wide field eyepiece WF20X/10mm, with adjustable diopter |
○ |
○ |
○ |
○ |
||
|
High eyepoint wide field eyepiece WF20X/10mm, with micrometer and adjustable diopter |
○ |
○ |
○ |
○ |
||
|
Objective |
Zoom objective |
0.7×-4.5× |
● |
● |
● |
● |
|
Auxiliary objective |
2×, W.D.: 30mm |
○ |
○ |
○ |
○ |
|
|
1.5×, W.D.: 45mm |
○ |
○ |
○ |
○ |
||
|
0.75×, W.D.: 105mm |
○ |
○ |
○ |
○ |
||
|
0.5×, W.D.: 165mm |
○ |
○ |
○ |
○ |
||
|
Zoom Ratio |
1:6.3 |
● |
● |
● |
● |
|
|
Working Distance |
100mm |
● |
● |
● |
● |
|
|
Head Mount |
76mm |
● |
● |
● |
● |
|
|
Focusing Arm |
Focus holder BSZ-A1, tension adjustable, moving range 48.5mm, pillar hole size: Ф32mm, microscope mount size: Ф76mm, distance between the 2 holes: 155mm |
● |
|
● |
|
|
|
Stand |
BSZ-B4 Pillar stand small fan-shaped base, pole diameter Φ32mm, pole height 260mm. Base size: 273*206mm, Φ100 black & white plate, with clips. No illumination. |
● |
|
● |
|
|
|
BSZ-BL12 Pillar stand and small fan-shaped base, pole diameter Φ32mm, pole height 260mm. Base size: 273*206mm, Φ100 black & white plate, with clips. Stand height 260mm, incident (1pc LED lamp angel adjustable) and transmitted (14pcs LED lamps) LED illumination with separate control, color temperature 5700-6500K, brightness 20-22LM, 3pcs NiMH rechargeable battery. External wide range AC adapter, input voltage 100V-240V, output 5V 1A. Focusing arm tension adjustable, moving range 110mm. |
|
● |
|
● |
||
|
Illumination |
Epi-illuminator, 12V 15W, adapt to BSZ-A1 |
○ |
|
○ |
|
|
|
Gem Clap |
Gem clap |
○ |
○ |
○ |
○ |
|
|
C-Mount |
0.35× C-mount |
|
|
○ |
○ |
|
|
0.5× C-mount |
|
|
○ |
○ |
||
|
1× C-mount |
|
|
○ |
○ |
||
|
Measurement Stage |
Precision measurement stage (0-25mm/150*150mm), with mechanical micrometer. Installation size 95mm |
○ |
○ |
○ |
○ |
|
|
Precision measurement stage (0-25mm/150*150mm), with digital micrometer. Installation size 95mm |
○ |
○ |
○ |
○ |
||
|
Package |
1pc/1carton,51cm*42cm*30cm, Net/Gross Weight: 6/7kg |
● |
● |
● |
● |
|
Note: ● Standard Outfit, ○ Optional
Application
BS-3026B1 microscope is widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science and veterinary industries. The microscope can be used for circuit board repair and inspection, SMT work, electronics inspection, dissection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.
Optical Parameters
|
Objective |
Standard Objective/ W.D.100mm |
0.5× Auxiliary Objective/ W.D.165mm |
1.5× Auxiliary Objective/ W.D.45mm |
2× Auxiliary Objective/ W.D.30mm |
||||
|
Mag. |
FOV |
Mag. |
FOV |
Mag. |
FOV |
Mag. |
FOV |
|
|
WF10×/20mm |
7.0× |
28.6mm |
3.5× |
57.2mm |
10.5× |
19mm |
14.0× |
14.3mm |
|
45.0× |
4.4mm |
22.5× |
8.8mm |
67.5× |
2.9mm |
90.0× |
2.2mm |
|
|
WF15×/15mm |
10.5× |
21.4mm |
5.25× |
42.8mm |
15.75× |
14.3mm |
21.0× |
10.7mm |
|
67.5× |
3.3 mm |
33.75× |
6.6mm |
101.25× |
2.2mm |
135.0× |
1.67mm |
|
|
WF20×/10mm |
14.0× |
14.3mm |
7.0× |
28.6mm |
21.0× |
9.5mm |
28.0× |
7.1mm |
|
90.0× |
2.2mm |
45.0× |
4.4mm |
135.0× |
1.5mm |
180.0× |
1.1mm |
|
