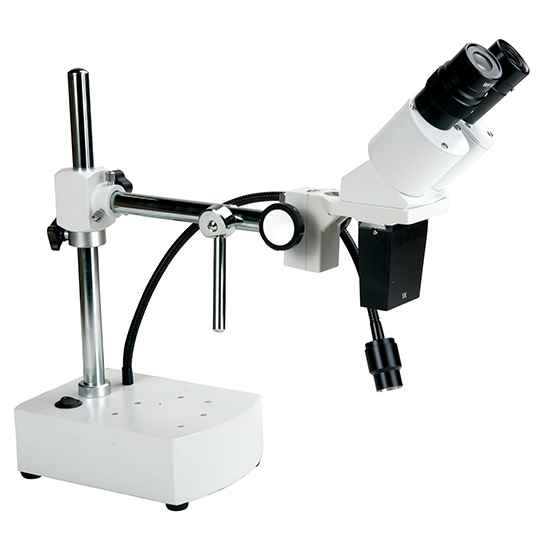

BS-3003 Long Working Distance Stereo Microscope
BS-3003 Long Working Distance Stereo Microscope

BS-3003 Long Working Distance Stereo Microscope

Introduction

BS-3003 Long working distance stereo microscope is a smart and cost-effective stereo microscopes. A variety of eyepieces and objectives are available for different requirements. The long working distance feature provides more choice for different samples and works. It is widely used in electric factories, schools laboratories, sculpture, families and so on.

Details

Model:BS-3003
Magnification:2.5x-40x
Eyepiece:10×
Objective:
Illumination:LED
Viewing Head:Binocular
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BS-3003 Long working distance stereo microscope is a smart and cost-effective stereo microscopes. A variety of eyepieces and objectives are available for different requirements. The long working distance feature provides more choice for different samples and works. It is widely used in electric factories, schools laboratories, sculpture, families and so on.

Features

  1. Sharp stereo erect image over a wide field of view.
  2. 45° Inclined binocular head with locked-in eyepiece. The left ocular-tube with diopter adjustment ±5dp.
  3. V-shape inserted objective with locked-in structure, easy to replace.
  4. Come with high brightness 3W LED lamp.
  5. A wide range of accessories for selection.

Application

BS-3003 stereo microscope is widely applied in school education, circuit board inspection and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts.

Specification

Item

Specification

BS-3003

Viewing Head

Binocular Viewing Head, 45° Inclined, Interpupilary Distance 55-75mm, diopter adjustment ±5dp on left ocular-tube, Tube diameter 23.2mm

Eyepiece

WF5×/20mm

WF10×/20mm

WF15×/15mm

WF20×/10mm

Objective

0.5×, Working distance 250mm

1×, Working distance 230mm

2×, Working distance 80mm

Illumination

Incident 3W LED illumination

Power supply

110V/60HZ or 220V/50HZ, 110V-240V Wide input voltage is optional

Package

1pcs/carton, 41cm*20cm*43cm, Gross weight 7.5kg, Net weight 6kg

Note: ● Standard Outfit, ○ Optional
