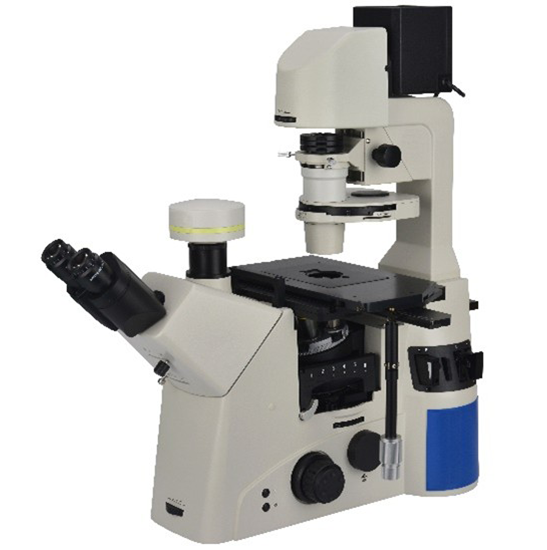

BS-2095A Research Inverted Microscope
Introduction
BS-2095 Inverted Biological Microscope is a research level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this research inverted biological microscope makes your works enjoyable. It has a trinocular head, so digital camera or digital eyepiece can be add to the trinocular head to take photos and videos.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 2-4 Weeks after Receiving Payment
Introduction
Introduction
As a research grade inverted microscope designed to meet advanced life science research, BS-2095 can meet your various needs. It is an all-around microscope that can achieve observation methods such as bright field, phase contrast, polarization, DIC, fluorescence, etc. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this research inverted biological microscope makes your works enjoyable. It has a trinocular head, so digital camera or digital eyepiece can be added to the trinocular head to take photos and videos.
Fully considering the user’s operating habits and adopting ergonomic design, it greatly reduces mechanical fatigue caused by long-term observation work. BS-2095C adopts high-speed electric control to simplify and visualize complex operations, making them easier and more convenient to operate.
Features
1.Different models for different needs
BS-2095A is a manual research inverted microscope for bright field, phase contrast, fluorescence and DIC observation methods. A large display screen is added on BS-2095B for easier operation in darkroom. BS-2095C is full motorized research inverted microscope with operation screen to achieve fully motorized control.
2.Semi-apochromatic plan objectives
With multi-layer coating technology, semi-apochromatic objectives can compensate for spherical aberration and chromatic aberration from ultraviolet to near-infrared. The 20X and 40X semi-apochromatic objectives have built-in correction rings that can correct coverage errors caused by non-standard cover glass thickness.
3.Tilting transmitted illumination column
Tiltable transmitted illumination column ensures the users have a large workspace and easy for sample replacement.
4.Condenser meets various needs
The condenser can meet different observation methods including bright field, phase contrast and DIC, to provide maximum selection space for your experiment.
5.Multi optical ports
The left side of the microscope is equipped with an optical path output selection dial, which facilitates the allocation of optical images to different ports and provides expansion space for more optical image applications.
6.Intermediate magnification available
Through smooth dial operation, the intermediate magnification can achieve quick switching between 1x and 1.5x.
7.Touch screen
For easier operation in darkroom, BS-2095B has added a 4.3-inch touch screen display on the front panel to show the microscope usage status.
8.X/Y axis electric motorized stage
Equipped with the motorized stage with large stroke and high precision, BS-2095C can achieve quick positioning and is suitable for multi-point observation.
9.Motorized condenser turntable
The condenser module of BS-2095C can be motorized converted.
10.Z-axis auto focusing
BS-2095C can achieve fast and precise motorized Z-axis control.
11.Electric motorized nosepiece
BS-2095C can achieve motorized conversion of 6 objectives freely.
12.Electric fluorescent module turntable
BS-2095C can achieve motorized conversion of 6-hole fluorescent modules on the turntable.
13.Full motorized control
An operation screen is added at the front of BS-2095C, which can achieve almost all microscope controls, including motorized focusing, stage movement, objectives selection, condenser module conversion, intermediate magnification conversion, side optical port output selection, aperture adjustment, multifunctional turntable conversion and other functions. The control handle is integrated on the right side of the body, greatly saving space.
Application
BS-2095 Inverted microscope is used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.
1.Bright Field
The unique NIS infinite optical system, combined with semi-apochromatic fluorescent objectives, effectively eliminates imaging problems such as field curvature, chromatic aberration, spherical aberration and coma, resulting in brighter images with higher resolution and flatness at all magnifications.
2.Phase Contrast
Phase contrast is an optical contrast technique that uses a phase contrast objective and a focusing ring. High efficiency halogen lamp can provide bright light sources for the system. Even at high magnification, clear images can be obtained.
3.DIC
Differential interference is a highly cost-effective optical technology that does not require expensive optical components. The relief contrast only needs a bright field objective and 2 phase contrast adjustment sliders. For thicker samples, such as induced pluripotent stem cells, differential interferometry can provide pseudo three-dimensional glare free images, while traditional phase contrast observation methods often result in halos. In addition, differential interferometry can be used in glass culture dishes and is a highly applicable observation technique.
4.Fluorescent
Adopting the latest coating technology
Adopting the latest advanced secondary ripple elimination coating technology, the transmittance of fluorescence is higher, the cutoff is more sensitive, and the detection efficiency is higher.
Fluorescence observation is more comfortable
All fluorescent filter components are equipped with ultra-high performance color filters. The fluorescent lighting pillar can be equipped with six color filter groups, which can simultaneously image multiple stained specimens. High sensitivity fluorescence can achieve bright and high contrast imaging effects. The leading coating technology also reduces scattered light and spontaneous fluorescence, ensuring a higher signal-to-noise ratio.
FITC Filters
DAPI Filters
TRITC Filters
B/G Filters
Specification
Item |
Specification |
BS-2095A |
BS-2095AF |
BS-2095AF (LED) |
||
Optical System |
Infinite optical system |
● |
● |
● |
||
Eyepiece |
SW10X/25mm, Φ30mm |
● |
● |
● |
||
SW10X/22mm, Φ30mm |
○ |
○ |
○ |
|||
EW12.5X/17.5mm, Φ30mm |
○ |
○ |
○ |
|||
WF15X/16mm, Φ30mm |
○ |
○ |
○ |
|||
WF20X/12mm, Φ30mm |
○ |
○ |
○ |
|||
Viewing Head |
Trinocular head with Bertrand lens, inclined at 45°, Interpupillary 47-78mm, 3 position beam split ratio: 50/50, 100/0, 0/100 |
● |
● |
● |
||
Binocular ERGO head |
○ |
○ |
○ |
|||
Objectives |
Infinite Plan Semi-APO Phase Contrast Objectives |
4X/ NA=0.13, WD=16.5mm, cover glass 0-2mm |
○ |
○ |
○ |
|
10X/ NA=0.3, WD=8.1mm, cover glass 1.2mm |
● |
● |
● |
|||
20X/ NA=0.45, WD=7.5-8.8mm, cover glass 0-2mm |
● |
● |
● |
|||
40X/ NA=0.60, WD=3-4.4mm, cover glass 0-2mm |
● |
● |
● |
|||
60X/ NA=0.70, WD=1.8-2.6mm, cover glass 0.1-1.3mm |
○ |
○ |
○ |
|||
Infinite Semi-APO Fluorescent Objectives |
4X/ NA=0.13, WD=17mm |
○ |
○ |
○ |
||
10X/ NA=0.3, WD=7.4mm, cover glass 1.2mm |
○ |
○ |
○ |
|||
20X/ NA=0.45, WD=8mm, cover glass 1.2mm |
○ |
○ |
○ |
|||
40X/ NA=0.60, WD=3.3mm, cover glass 1.2mm |
○ |
○ |
○ |
|||
60X/ NA=0.70, WD=1.8-2.6mm |
○ |
○ |
○ |
|||
Infinite Plan Apochromatic Objectives |
10X/ NA=0.45, WD=4.0mm |
○ |
○ |
○ |
||
20X/ NA=0.75, WD=1.1mm |
○ |
○ |
○ |
|||
40X/ NA=0.95, WD=0.21mm |
○ |
○ |
○ |
|||
(Oil) 60X/ NA=1.42, WD=0.25mm |
○ |
○ |
○ |
|||
100X/ NA=1.45, WD=0.13mm |
○ |
○ |
○ |
|||
Nosepiece |
6-hole nosepiece with DIC slot (DIC for transmitted and reflected) |
● |
● |
● |
||
Condenser |
Long working distance condenser, NA0.55, WD=26mm, with 6-position plate |
● |
● |
● |
||
Illumination |
Kohler illumination, 12V/100W halogen lamp |
● |
● |
● |
||
ECO Auto-off function (automatically shut off in 15 mins if no users) |
○ |
● |
● |
|||
Focusing |
Coaxial coarse & fine focusing. Movement range 9mm, coarse adjustment 2mm/rotation, fine adjustment 0.2mm/rotation |
● |
● |
● |
||
Internal Magnification |
1X, 1.5X |
● |
● |
● |
||
Side Video Port |
Switchable by turning plate, 3 models: left side port/eyepiece=50/50; right side port/eyepiece=20/80; left & right sides port/eyepiece=0/100 |
● |
● |
● |
||
Dark Field |
Dark field kit |
○ |
○ |
○ |
||
Phase Contrast |
Phase contrast kit |
● |
● |
● |
||
DIC |
DIC kit |
○ |
○ |
○ |
||
Hoffman Phase Contrast Attachment |
Condenser |
○ |
○ |
○ |
||
Hoffman phase contrast 10X, 20X, 40X plug-in kit |
||||||
Hoffman Phase Contrast Objectives |
10X/ NA=0.25, WD=10.2mm |
|||||
20X/ NA=0.24, WD=12mm |
||||||
40X/ NA=0.6, WD=2.2mm |
||||||
Centering telescope |
||||||
Stage |
Three-layer mechanical stage, stage size: 340×230mm, movement range 130×85mm, flexible knob. Different small sizes stage could be attached to main stage |
● |
● |
● |
||
Fluorescent Attachment |
Epi-fluorescence attachment with 100W HBO mercury lamp and B, G, UV fluorescent filters, field diaphragm, center adjustable. |
○ |
● |
○ |
||
Epi-fluorescence attachment with 5W LED lamp of B, G, UV, R and B, G, UV fluorescent filters (input voltage: 100V-240V), field diaphragm, center adjustable. |
○ |
○ |
● |
|||
Multi-model plate structure, total 6 position, could be taken out from main frame and change different cube easily. |
● |
● |
● |
|||
V, FITC, DAPI, TRITC, Red, mCherry (Texas Red), FL-BG fluorescent filters |
○ |
○ |
○ |
|||
C-mount Adapter |
0.5X C-mount adapter |
○ |
○ |
○ |
||
1× C-mount Adapter |
○ |
○ |
○ |
Note: ● Standard Outfit, ○ Optional
Accessories
1.Fluorescence module turntable
Adopting a multifunctional six-hole turntable structure, fluorescence modules can be easily removed from the main unit, making it convenient to replace various fluorescence excitation modules.
2.Diaphragm sliders
The three different types of light barrier sliders, including reflective field diaphragm, iris diaphragm and filter insert, enhance the multifunctionality of BS-2095 in live cell researches. When used in conjunction with iris diaphragm and fluorescence filter insert, the optimal fluorescence intensity can be adjusted according to the selected fluorescence module and objectives.
3.Fluorescent illumination
Mercury lamp
Standard OSRAM 100W HBO ultra-high pressure spherical mercury lamp, with high fluorescence brightness and uniform field of view. At the same time, a light gate is installed at the front of the vertical illuminator to cut off the fluorescent lighting at any time and protect the sample.
LED lamp
4-color LED illuminator, brightness adjustable. The lifespan of the bulb can be up to 10,000 hours. Low phototoxicity is friendly to fine samples such as cells. It solves the problems of traditional fluorescent mercury lamp requiring preheating, cooling, and high temperatures during use.
4.Hoffman phase contrast
Hoffman phase contrast attachment, including condenser, Hoffman phase contrast 10X, 20X, 40X plug-in, 10X, 20X, 40X Hoffman phase contrast objectives and centering telescope.
Sample Images
Dimension
BS-2095AF
BS-2095BF (LED)
BS-2095CF (LED)
