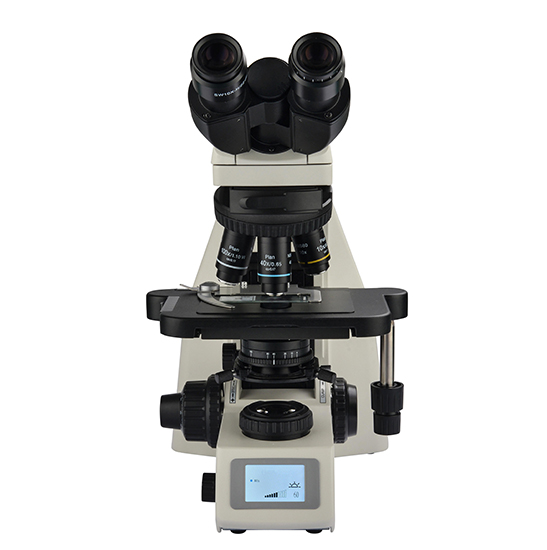

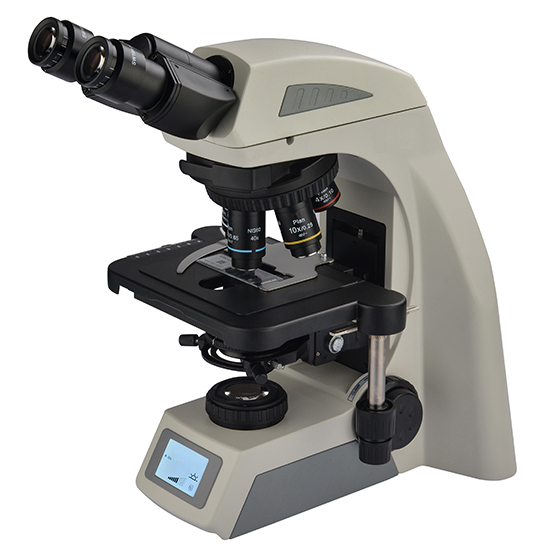

BS-2074B Binocular Biological Microscope
Introduction
BS-2074 series microscopes are high level microscopes which are specially designed for college education, medical and laboratory research. With excellent optical quality, large field of view, excellent objective lens performance, clear and reliable imaging. Ergonomically designed to provide better comfort and experience, focus on the user's operating habits, and constantly optimize the details. The modular design allows for various viewing modes such as brightfield, darkfield, phase contrast, fluorescence and simple polarizing. The intelligent design makes the microscope teaching more flexible and the teaching effect is better. Low maintenance costs and environmentally friendly.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 2-4 Weeks after Receiving Payment
Introduction
BS-2074 series microscopes are high level microscopes which are specially designed for college education, medical and laboratory research. With excellent optical quality, large field of view, excellent objective lens performance, clear and reliable imaging. Ergonomically designed to provide better comfort and experience, focus on the user’s operating habits, and constantly optimize the details. The modular design allows for various viewing modes such as brightfield, darkfield, phase contrast, fluorescence and simple polarizing. The intelligent design makes the microscope teaching more flexible and the teaching effect is better. Low maintenance costs and environmentally friendly.
Features
- Excellent Optical Design.
- Infinite Plan Objectives.
- This is an unbounded microscope.
- Easier to store and transport.
- Ergonomic Design.
- Intelligent operating system.
Application
BS-2074 series microscopes are ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
Specification
|
Item |
Specification |
BS-2074B |
BS-2074T |
|
Optical System |
Infinite Optical System |
● |
● |
|
Eyepiece |
Extra Wide Field Eyepiece EW10×/22mm |
● |
● |
|
Wide Field Eyepiece WF15×/16mm |
○ |
○ |
|
|
Wide Field Eyepiece WF20×/12mm |
○ |
○ |
|
|
Viewing Head |
Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Anti-Fungus, Tube Diameter 30mm |
● |
|
|
Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Splitting ratio 5:5, Anti-Fungus, Tube Diameter 30mm |
|
● |
|
|
Seidentopf Binocular Viewing Head with Built-in 5.0MP Digital Camera, HDMI and Wifi output interface, Inclined at 30°, 360° Rotatable, Interpupillary 47-78mm, Anti-Fungus, Tube Diameter 30mm |
○ |
○ |
|
|
Objective |
NIS60 Infinite Plan Achromatic Objective 4× (N.A.:0.10, W.D.:30mm) |
● |
● |
|
NIS60 Infinite Plan Achromatic Objective 10× (N.A.:0.25, W.D.:10.2mm) |
● |
● |
|
|
NIS60 Infinite Plan Achromatic Objective 40× (N.A.:0.65, W.D.:1.5mm) |
● |
● |
|
|
NIS60 Infinite Plan Achromatic Objective 100× (Water, N.A.:1.10, W.D.:0.2mm) |
● |
● |
|
|
NIS60 Infinite Plan Achromatic Objective 20× (N.A.:0.40, W.D.:4.0mm) |
○ |
○ |
|
|
NIS60 Infinite Plan Achromatic Objective 60× (N.A.:0.80, W.D.:0.3mm) |
○ |
○ |
|
|
NIS60 Infinite Plan Achromatic Objective 100× (Oil, N.A.:1.25, W.D.:0.3mm) |
○ |
○ |
|
|
NIS60 Infinite Plan Phase Contrast Achromatic Objective 10×, 20×, 40×, 100× |
○ |
○ |
|
|
NIS60 Infinite Plan Semi-APO Fluorescent Objectives 4×, 10×, 20×, 40×, 100× |
○ |
○ |
|
|
Nosepiece |
Backward Quintuple Nosepiece(Coding) |
● |
● |
|
Stage |
Rackless stage, Size 230×150mm, Moving Range 78×54mm |
● |
● |
|
Condenser |
Inserted Abbe Condenser NA1.25(Including Empty Plate) |
● |
● |
|
Bright Field-Phase Contrast Plate (4x-100x Universal) |
○ |
○ |
|
|
Bright Field-Dark Field Plate |
○ |
○ |
|
|
Focusing |
Coaxial coarse and fine adjustment, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation, Fine division 0.002mm, Moving range 30mm |
● |
● |
|
Illumination |
3W S-LED (LCD Display Magnification, Timing Sleep, Brightness Indication and Lock, etc.) |
● |
● |
|
Fluorescent Attachment |
3W LED, Two Filter Cubes (B, B1, G, U, V, R, Auramine O can be combined), Fly-eye Lens Illumination |
○ |
○ |
|
Other Accessories |
1× C-mount adapter |
○ |
○ |
|
0.5× C-mount adapter |
○ |
○ |
|
|
Simple Polarization Set |
○ |
○ |
|
|
Digital Camera |
○ |
○ |
|
|
Filter |
Green |
● |
● |
|
Blue, Yellow, Red |
○ |
○ |
|
|
Package |
1pc/carton, Carton size: 48cm*33cm*60cm, Net/Gross Weight: 10.5kg/12.5kg |
● |
● |
Note: ●Standard Outfit, ○Optional
