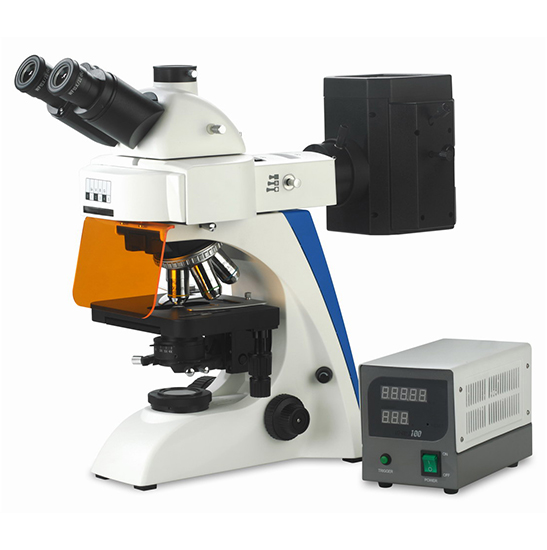

BS-2063FT Fluorescence Trinocular Microscope
BS-2063FT Fluorescence Trinocular Microscope
BS-2063FT Fluorescence Trinocular Microscope
BS-2063FT Fluorescence Trinocular Microscope
BS-2063FT Fluorescence Trinocular Microscope
BS-2063FT Fluorescence Trinocular Microscope
BS-2063FT Fluorescence Trinocular Microscope
BS-2063FT Fluorescence Trinocular Microscope
BS-2063FT Fluorescence Trinocular Microscope
BS-2063FT Fluorescence Trinocular Microscope
BS-2063FT Fluorescence Trinocular Microscope
BS-2063FT Fluorescence Trinocular Microscope

BS-2063FT Fluorescence Trinocular Microscope

Introduction

The BS-2063FB microscope is a high-level microscope specially designed for college education, medical, and laboratory studies. It adopts an infinite optical system, features a beautiful structure, and has an ergonomic design.

Details

Model:BS-2063FT
Viewing Head:Trinocular
Magnification:40x-1000x
Eyepiece:WF10x
Objective:4×, 10×, 20×, 40×, 100×
Illumination:6V/30W Halogen Lamp
Condenser:N.A.0.9/0.13
Fluorescent Attachment100W Mercury Epi-Fluorescence Unit
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-4 Weeks after Receiving Payment

Introduction

The BS-2063FB microscope is a high-level microscope specially designed for college education, medical, and laboratory studies. It adopts an infinite optical system, features a beautiful structure, and has an ergonomic design. With its innovative optical and structural design, excellent optical performance, and easy-to-operate system, this biological microscope makes your work enjoyable.

Features

1.Excellent infinite optical system

Excellent infinite optical system with high resolution and perfect definition.



2.Wide field eyepiece

Wide field eyepiece, view field up to Φ22mm, more comfortable for observation.



3.Viewing head

Trinocular head with light distribution 100:0 (100% for eyepiece) and 80:20(80% for trinocular head and 20% for eyepiece).



4.Rackless stage

Rackless (integrated) stage is safer than traditional stage.





5.Various accessories for upgrading

100X water objective is available for convenient viewing.



Quintuple turret phase contrast unit with 10X/20X/40X/100X infinite plan phase contrast objective for phase contrast and bright field observation.





N.A.0.9/0.13 Swing-out Condenser.

Dark field condenser (dry) available to 4X-40X Objective.

Dark field condenser (oil) available to 100X Objective.





Infinite Plan Objectives





Mercury and LED fluorescent attachment with six-holes disk fluorescence unit, more fluorescence filters can be supplied.



BS-2063FT



BS-2063FT(LED) with B/G Filter



 BS-2063FT(LED) with UV/V/B/G Filter





Simple polarizing unit with polarizer and analyzer.



Specification



Item

Specification

BS-2063FB

BS-2063FT

Optical System

Color Corrected Infinite Optical System

Viewing Head

Inclined 30° binocular tube, 360° rotatable, interpupillary distance: 48-76mm



Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48-76mm, splitting ratio: eyepiece: trinocular=100:0 or 20:80



Eyepiece

Wide field eyepiece WF10X/22mm, diopter adjustable, tube diameter: 30mm

WF15×/16mm, diopter adjustable

WF10×/22mm with 0.1mm eyepiece micrometer

Infinite Plan Achromatic Objective

2X/ NA 0.06

4X/ NA 0.10, WD=12.10mm

10X/ NA 0.25, WD4.64mm

20X/ NA 0.40 (S), WD=2.41mm

40X/ NA 0.66 (S), WD=0.65mm

60X/ NA 0.80 (S), WD=0.33mm

(Oil) 100X/ NA 1.25 (S), WD=0.12mm

(Water) 100X/ NA 1.15 (S), WD=0.19mm

Infinity Plan Semi-Apochromatic Fluorescent Objectives

4X/NA=0.16, WD=17.15mm

10X/NA=0.30, WD=7.68mm

20X/NA=0.50, WD=1.96mm

40X/NA=0.75, WD=0.78mm

40X/NA=0.75, WD=0.78mm (for TB, no correction of slide cover)

(Oil) 100X/NA=1.3, WD=0.15mm

Nosepiece

Backward quintuple nosepiece

Stage

Rackless (integrated) stage, size: 182mm*140mm, travel range: 77mm*52mm, with two slide holders

Stage size: 175mm*145mm. Travel: 78mm*55mm, scale: 0.1mm. With two slide holders

Condenser

Swing-out condenser NA 0.9/0.13, with iris diaphragm

Dark field condenser, dry, apply to 4X-40X objective

Dark field condenser, wet, apply to 100X objective

Focusing

Coaxial coarse and fine focusing knob, coarse focusing travel range: 25mm, coarse stroke 42.4mm/rotation, fine stroke 0.2mm/rotation, fine division: 2µm

Field Diaphragm

Field diaphragm

Koehler Illumination

6V/30W Halogen lamp

5W LED lamp

Polarizing Unit

Analyzer and polarizer

Phase Contrast Unit

Quintuple hole turret unit with 10X/20X/40X/100X phase contrast objective

Independent slot with 10X/20X/40X/100X phase contrast objective

Fluorescent Attachment

B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G and another filters), 100W mercury lamp.

UV/V/B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G and another filters), 100W mercury lamp.

B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G), 5W-LED fluorescence lamp.

UV/V/B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G), 5W-LED fluorescence lamp.

B or G fluorescence unit, 5W-LED fluorescence lamp.

Auramine long pass fluorescence unit, with 5W LED fluorescence lamp

B/G fluorescence unit, 5W-LED fluorescence lamp.

Video Adapter

0.35X C-mount adapter, adjustable focus



0.5X C-mount adapter, adjustable focus



0.75X C-mount adapter, adjustable focus



1X C-mount adapter, adjustable focus



Trinocular digital eyepiece interface



Photo Adapter

Used for CANON/NIKON/OLYMPUS/ SONY DLSR cameras



Filter

Blue filter (Φ45)

Green filter (Φ45)

Amber filter (Φ45)

Power Supply

Wide voltage input: 100V~240V

Packing

1 carton/set, Packing Size: 565mm × 310mm × 410mm, Gross Weight: 12 kgs, Net Weight: 10 kgs

Note: ●Standard Outfit, ○Optional

Fluorescent Filters

Auramine O

Wavelength (nm)

Exciter

470Sp

Dichroic

480DRLP

Barrier

485LP



B Excitation

Wavelength (nm)

Exciter

470/37

Dichroic

505LP

Barrier

515LP



G Excitation

Wavelength (nm)

Exciter

500-550

Dichroic

575

Barrier

590



Uv Excitation

Wavelength (nm)

Exciter

330-380

Dichroic

400

Barrier

435



V Excitation

Wavelength (nm)

Exciter

380-420

Dichroic

430

Barrier

460

Application



The BS-2063FT microscope is a high-level microscope specially designed for college education, medical, and laboratory studies. It adopts an infinite optical system, features a beautiful structure, and has an ergonomic design. With its innovative optical and structural design, excellent optical performance, and easy-to-operate system, this biological microscope makes your work enjoyable.
