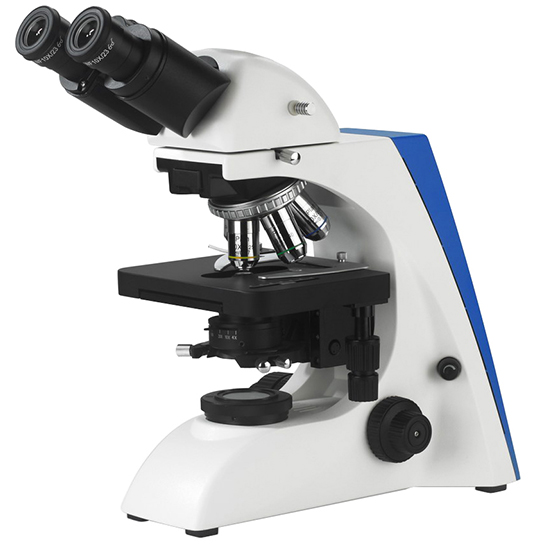

BS-2063B Binocular Biological Microscope
Introduction
The BS-2063B microscope is a high-level microscope specially designed for college education, medical, and laboratory studies. It adopts an infinite optical system, features a beautiful structure, and has an ergonomic design.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 2-4 Weeks after Receiving Payment
Introduction
The BS-2063B microscope is a high-level microscope specially designed for college education, medical, and laboratory studies. It adopts an infinite optical system, features a beautiful structure, and has an ergonomic design. With its innovative optical and structural design, excellent optical performance, and easy-to-operate system, this biological microscope makes your work enjoyable.
Features
1.Excellent infinite optical system
Excellent infinite optical system with high resolution and perfect definition.
2.Wide field eyepiece
Wide field eyepiece, view field up to Φ22mm, more comfortable for observation.

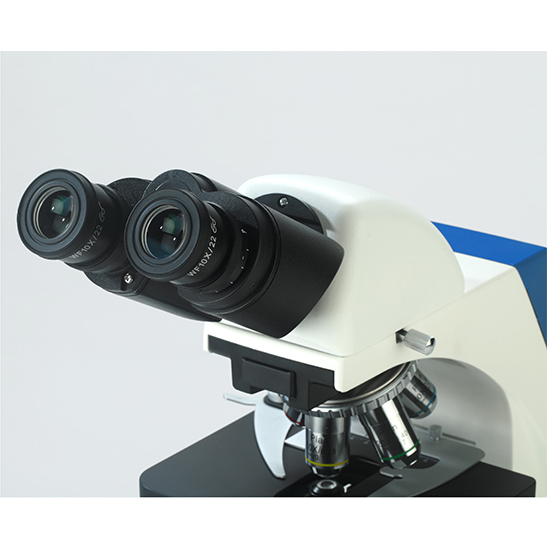

3.Viewing head
Trinocular head with light distribution 100:0 (100% for eyepiece) and 80:20(80% for trinocular head and 20% for eyepiece).
4.Rackless stage
Rackless (integrated) stage is safer than traditional stage.
5.Various accessories for upgrading
100X water objective is available for convenient viewing.
Quintuple turret phase contrast unit with 10X/20X/40X/100X infinite plan phase contrast objective for phase contrast and bright field observation.
N.A.0.9/0.13 Swing-out Condenser.
Dark field condenser (dry) available to 4X-40X Objective.
Dark field condenser (oil) available to 100X Objective.
Infinite Plan Objectives
Mercury and LED fluorescent attachment with six-holes disk fluorescence unit, more fluorescence filters can be supplied.
BS-2063FT
BS-2063FT(LED) with B/G Filter
BS-2063FT(LED) with UV/V/B/G Filter
Simple polarizing unit with polarizer and analyzer.
Specification
|
Item |
Specification |
BS-2063B |
BS-2063T |
|
Optical System |
Color Corrected Infinite Optical System |
● |
● |
|
Viewing Head |
Inclined 30° binocular tube, 360° rotatable, interpupillary distance: 48-76mm |
● |
|
|
Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48-76mm, splitting ratio: eyepiece: trinocular=100:0 or 20:80 |
|
● |
|
|
Eyepiece |
Wide field eyepiece WF10X/22mm, diopter adjustable, tube diameter: 30mm |
● |
● |
|
WF15×/16mm, diopter adjustable |
○ |
○ |
|
|
WF10×/22mm with 0.1mm eyepiece micrometer |
○ |
○ |
|
|
Infinite Plan Achromatic Objective |
2X/ NA 0.06 |
○ |
○ |
|
4X/ NA 0.10, WD=12.10mm |
● |
● |
|
|
10X/ NA 0.25, WD4.64mm |
● |
● |
|
|
20X/ NA 0.40 (S), WD=2.41mm |
● |
● |
|
|
40X/ NA 0.66 (S), WD=0.65mm |
● |
● |
|
|
60X/ NA 0.80 (S), WD=0.33mm |
○ |
○ |
|
|
(Oil) 100X/ NA 1.25 (S), WD=0.12mm |
● |
● |
|
|
(Water) 100X/ NA 1.15 (S), WD=0.19mm |
○ |
○ |
|
|
Infinity Plan Semi-Apochromatic Fluorescent Objectives |
4X/NA=0.16, WD=17.15mm |
○ |
○ |
|
10X/NA=0.30, WD=7.68mm |
○ |
○ |
|
|
20X/NA=0.50, WD=1.96mm |
○ |
○ |
|
|
40X/NA=0.75, WD=0.78mm |
○ |
○ |
|
|
40X/NA=0.75, WD=0.78mm (for TB, no correction of slide cover) |
○ |
○ |
|
|
(Oil) 100X/NA=1.3, WD=0.15mm |
○ |
○ |
|
|
Nosepiece |
Backward quintuple nosepiece |
● |
● |
|
Stage |
Rackless (integrated) stage, size: 182mm*140mm, travel range: 77mm*52mm, with two slide holders |
● |
● |
|
Stage size: 175mm*145mm. Travel: 78mm*55mm, scale: 0.1mm. With two slide holders |
○ |
○ |
|
|
Condenser |
Swing-out condenser NA 0.9/0.13, with iris diaphragm |
● |
● |
|
Dark field condenser, dry, apply to 4X-40X objective |
○ |
○ |
|
|
Dark field condenser, wet, apply to 100X objective |
○ |
○ |
|
|
Focusing |
Coaxial coarse and fine focusing knob, coarse focusing travel range: 25mm, coarse stroke 42.4mm/rotation, fine stroke 0.2mm/rotation, fine division: 2µm |
● |
● |
|
Field Diaphragm |
Field diaphragm |
● |
● |
|
Koehler Illumination |
6V/30W Halogen lamp |
● |
● |
|
5W LED lamp |
○ |
○ |
|
|
Polarizing Unit |
Analyzer and polarizer |
○ |
○ |
|
Phase Contrast Unit |
Quintuple hole turret unit with 10X/20X/40X/100X phase contrast objective |
○ |
○ |
|
Independent slot with 10X/20X/40X/100X phase contrast objective |
○ |
○ |
|
|
Fluorescent Attachment |
B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G and another filters), 100W mercury lamp. |
○ |
○ |
|
UV/V/B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G and another filters), 100W mercury lamp. |
○ |
○ |
|
|
B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G), 5W-LED fluorescence lamp. |
○ |
○ |
|
|
UV/V/B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G), 5W-LED fluorescence lamp. |
○ |
○ |
|
|
B or G fluorescence unit, 5W-LED fluorescence lamp. |
○ |
○ |
|
|
Auramine long pass fluorescence unit, with 5W LED fluorescence lamp |
○ |
○ |
|
|
B/G fluorescence unit, 5W-LED fluorescence lamp. |
○ |
○ |
|
|
Video Adapter |
0.35X C-mount adapter, adjustable focus |
|
○ |
|
0.5X C-mount adapter, adjustable focus |
|
● |
|
|
0.75X C-mount adapter, adjustable focus |
|
○ |
|
|
1X C-mount adapter, adjustable focus |
|
○ |
|
|
Trinocular digital eyepiece interface |
|
○ |
|
|
Photo Adapter |
Used for CANON／NIKON／OLYMPUS/ SONY DLSR cameras |
|
○ |
|
Filter |
Blue filter (Φ45) |
● |
● |
|
Green filter (Φ45) |
○ |
○ |
|
|
Amber filter (Φ45) |
○ |
○ |
|
|
Power Supply |
Wide voltage input: 100V～240V |
● |
● |
|
Packing |
1 carton/set, Packing Size: 565mm × 310mm × 410mm, Gross Weight: 12 kgs, Net Weight: 10 kgs |
● |
● |
Note: ●Standard Outfit, ○Optional
Application
The BS-2063B microscope is a high-level microscope specially designed for college education, medical, and laboratory studies. It adopts an infinite optical system, features a beautiful structure, and has an ergonomic design. With its innovative optical and structural design, excellent optical performance, and easy-to-operate system, this biological microscope makes your work enjoyable.
Sample Image
