BS-10803DWF 2D/3D Monocular Video Microscope with Large FOV
Introduction
BS-10803DWF 2D/3D Monocular Video Microscope with Large FOV supports two observation method: 2D or 3D side view 360° rotation observation. The FOV of 3D observation can reach 70mm.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
BS-10803DWF 2D/3D Monocular Video Microscope with Large FOV supports two observation method: 2D or 3D side view 360° rotation observation. The FOV of 3D observation can reach 70mm.
BS-10803DWF is widely used in circuit board, microelectronics, precision electronics, precision hardware, deep hole wall, life science, animal and plant morphology.
Features
1.2D/3D observation
Infinity optical system. 0.6-5.0X optical zoom body. Support two observation method: 2D or 3D side view 360° rotation observation.
2.45° objective viewing angle
Working distance and center position always maintain same when you switch 2D to 3D observation, no need to adjust the focus again. Adjust to any magnification and get a best image without adjustable.
3.Standard C mount
0.5X standard CTV mount, 0.3X, 0.75X, 1X, 1.5X CTV mount for optional.
4.Large FOV
The FOV of 3D observation can reach 70mm. Equipped with 1/2” sensor camera, the field of view is full image without dark edge image at minimum magnification.
Product Details
Specification
|
Item |
Specification |
BS-10803DWF |
|
Optical System |
Infinite apochromatic parallel optical system |
● |
|
Zoom Lens |
Optical zoom magnification: 0.6X-5.0X |
● |
|
Zoom ratio |
1:8.3 |
● |
|
Mounting Size |
Φ50mm |
● |
|
LCD Digital Camera |
BLC-480A LCD digital camera with HDMI2.0, USB3.0 and WIFI multi output, 60fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. |
○ |
|
BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. |
○ |
|
|
BLC-580A LCD digital camera with HDMI2.0, USB, LAN and WIFI multi output, 60fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. |
○ |
|
|
BLC-580AF LCD digital camera with HDMI2.0, USB and WIFI multi output, with built-in Auto Focus system, 60fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. |
○ |
|
|
C-mount Adapter |
0.3X C-mount adapter |
○ |
|
0.5X C-mount adapter |
● |
|
|
0.75X C-mount adapter |
○ |
|
|
1.0X C-mount adapter |
○ |
|
|
1.5X C-mount adapter |
○ |
|
|
Ring Light |
BAL-80A LED Ring light, brightness adjustable |
○ |
|
BAL-52AP LED polarizing ring light, brightness adjustable |
○ |
|
|
BAL-52ASL LED side ring light, brightness adjustable |
○ |
|
|
BAL-228A Four-zone lighting control separately big area LED ring light |
● |
|
|
BAL-228AG LED four-zone ring light with frosted glass |
○ |
|
|
BAL-16P LED polarizing ring light, brightness adjustable |
○ |
|
|
BAL-52A LED Ring light, brightness adjustable |
○ |
|
|
Back Light |
BTL-60A LED back light |
○ |
|
Point Light |
BPL-3A LED point light, 3W, brightness adjustable. |
○ |
|
BPL-3MC LED multi color point light, 3W, white, purple, blue, yellow, red, green and mixed light, brightness adjustable |
○ |
|
|
BPL-4A LED point light with numerically adjustable light adapter, 4W, brightness adjustable |
○ |
|
|
Bar Light |
BBL-5A bar LED illuminator, 60 LED, 12V/5W |
○ |
|
Cold Light Source |
BSL-3B LED light source with dual goose neck light guide, 6.5W |
○ |
|
BSL-15A-2 Cold LED light source with Dual Light Guide, 15W LED lamp |
○ |
|
|
BSL2-150A-2 Cold light source with Dual Light Guide, 21V/150W Halogen lamp |
○ |
|
|
Stage |
BMS-302 X-Y moving stage |
○ |
|
BMS-303 X-Y moving stage |
○ |
|
|
BMS-311 X-Y measuring stage |
○ |
|
|
BMS-316A X-Y measuring stage |
○ |
|
|
BMS-316B X-Y measuring stage |
○ |
|
|
BMS-400A large working stage |
○ |
|
|
BMS-260A XY working stage |
○ |
|
|
Stand and focus Arm |
BA1 Round type column plain stand with coarse focus arm. Stroke: 50mm. |
○ |
|
BA2 Round type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 50mm. |
○ |
|
|
BA3 Round type column plain stand with coarse and fine focus arm. Stroke: 67mm, fine precision: 0.002mm. |
○ |
|
|
BA4 Round type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 67mm, fine precision: 0.002mm. |
○ |
|
|
BA5 Square type column plain stand with coarse focus arm. Stroke: 150mm. |
○ |
|
|
BA6 Square type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 150mm. |
○ |
|
|
BA7 Square type column plain stand with coarse and fine focus arm. Stroke: 260mm, fine precision: 0.002mm. |
○ |
|
|
BA8 Square type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 260mm, fine precision: 0.002mm. |
○ |
|
|
BA9 multi-angle column plain stand with coarse focus arm. Stroke: 60mm. |
○ |
|
|
BA10 multi-angle column plain stand with coarse and fine focus arm. Stroke: 60mm, fine precision: 0.002mm. |
○ |
|
|
BA11 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 50mm. |
○ |
|
|
BA12 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
|
|
BA13 Round type column large plain stand with coarse focus arm. Column height: 320mm, Φ25mm, stroke: 50mm, base size: 380mm*260mm. Gross weight: 1.5kg. |
○ |
|
|
BFA-1 coarse focus arm. Stroke: 50mm. |
○ |
|
|
BFA-2 coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
|
|
BFA-3 multi-angle coarse focus arm, angle adjustable. Stroke: 50mm. |
○ |
|
|
BFA-4 multi-angle coarse and fine focus arm, angle adjustable. Stroke: 60mm, fine precision: 0.002mm. |
○ |
|
|
BFA-5 electric coarse and fine focus arm, supporting manual focusing and electric focusing. It has 5 preset positions, paired with 5 different magnification objectives. Stroke: 65mm, fine precision: 0.005mm. |
○ |
|
|
BFA-6 N interface coarse focus arm. Stroke: 50mm. |
○ |
|
|
BFA-7 N interface coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
Note: ●Standard Outfit, ○Optional
Optical Parameter
|
Model |
BS-10803DWF |
|
|
Optical magnification |
2D: 0.23X-1.88X |
3D: 0.09X-0.75X |
|
Zoom body |
0.6-5.0X |
|
|
C mount |
0.5X |
|
|
Objective |
2D: 0.75X |
3D: 0.3X |
|
Working distance |
2D: 105mm |
3D: 50mm |
|
FOV |
2D: 30*17mm-3.7*2mm |
3D: 70*45mm-9*5mm |
|
Lens mount |
Standard C mount |
|
|
Observation mode |
2D or 3D observation |
|
|
3D viewer angle |
45° |
|
Accessories

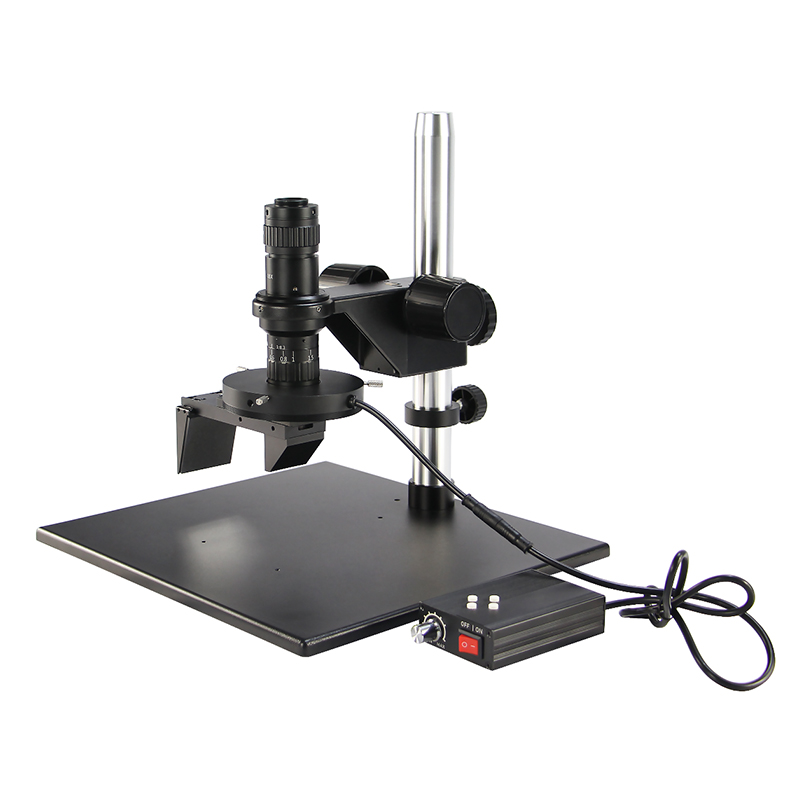

BS-10803DWF with BA1 stand
BS-10803DWF with BA13 stand
Sample Image
