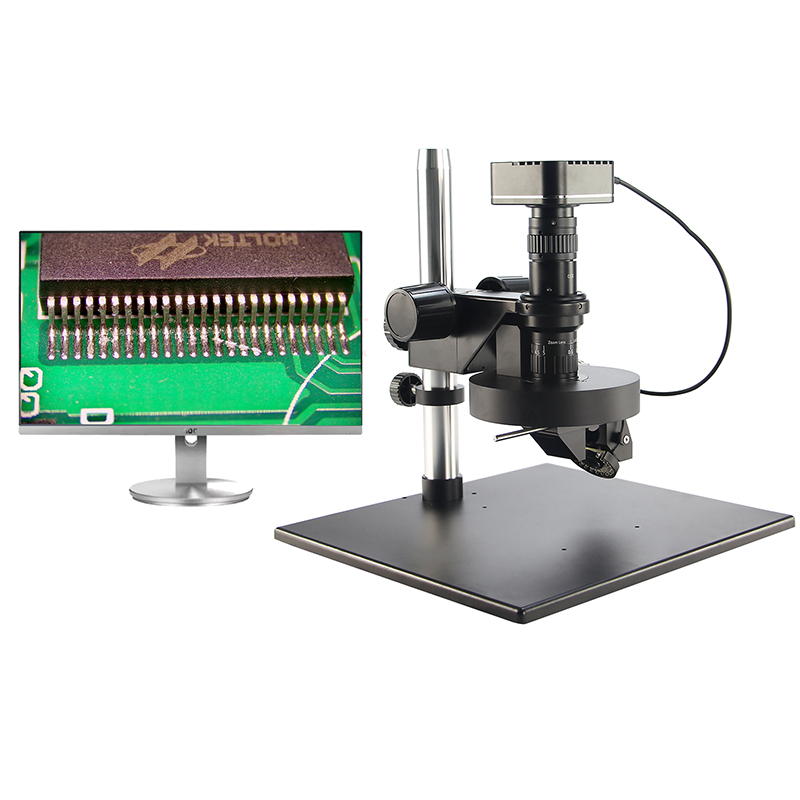

BS-10803DAMR 2D/Motor 3D Monocular Video Microscope with Camera
Introduction
BS-10803DAMR 2D/Motor 3D Monocular Video Microscope supports two observation method: 2D or motor 3D side view 360° rotation observation.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
BS-10803DAMR 2D/Motor 3D Monocular Video Microscope supports two observation method: 2D or motor 3D side view 360° rotation observation. Equipped with 1/1.8” 1920*1080 HDMI camera, support take photo and video. The built-in software of the camera can control 3D rotation and lights, operated by mouse.
BS-10803DAMR is widely used in circuit board, microelectronics, precision electronics, precision hardware, deep hole wall, life science, animal and plant morphology.
Features
1.2D/Motor 3D observation
Infinity optical system. 0.6-5.0X optical zoom body. Support two observation method: 2D or motor 3D side view 360° rotation observation.
2.45° objective viewing angle
Working distance and center position always maintain same when you switch 2D to 3D observation, no need to adjust the focus again.
3.Standard C mount
0.5X standard CTV mount, 0.3X, 0.75X, 1X, 1.5X CTV mount for optional.
4.Large FOV
Large depth of view. Equipped with 1/1.8” sensor camera, the field of view is full image without dark edge image at minimum magnification.
5.Illumination
LED ring light with four-zone control and an integrated side light. The side light follows 360° rotation of the 3D viewer, perfectly solving the problem of light dark angle.
6.Camera
Equipped with 1/1.8” 1920*1080 HDMI camera, support take photo and video. The built-in software of the camera can control 3D rotation and lights, operated by mouse. It’s easy and convenient.
Operation windows
Microscope with 1/1.8″ 4K HDMI camera and built-in control program.
With built-in measurement software, we can measure dimensions under 2D observation.
Product Details
Specification
|
Item |
Specification |
BS-10803DAMR |
|
Optical System |
Infinite apochromatic parallel optical system |
● |
|
Zoom Lens |
Optical zoom magnification: 0.6X-5.0X |
● |
|
Zoom ratio |
1:8.3 |
● |
|
Mounting Size |
Φ50mm |
● |
|
Illumination |
Ring light: 267 PCS LED, color temperature 6000K, brightness 0-100% adjustable |
● |
|
Side light: 31 PCS LED, color temperature 6000K, brightness 0-100% adjustable |
● |
|
|
Camera |
Camera with HDMI output, 1/1.8” SONY CMOS, 8.3 mega-pixel, resolution: 3840*2160, frame: 60FPS, pixels size: 2.0μm*2.0μm. Built-in software controlling 3D rotation and light. |
● |
|
C-mount Adapter |
0.3X C-mount adapter |
○ |
|
0.5X C-mount adapter |
● |
|
|
0.75X C-mount adapter |
○ |
|
|
1.0X C-mount adapter |
○ |
|
|
1.5X C-mount adapter |
○ |
|
|
Ring Light |
BAL-80A LED Ring light, brightness adjustable |
○ |
|
BAL-52AP LED polarizing ring light, brightness adjustable |
○ |
|
|
BAL-52ASL LED side ring light, brightness adjustable |
○ |
|
|
BAL-228A Four-zone lighting control separately big area LED ring light |
○ |
|
|
BAL-228AG LED four-zone ring light with frosted glass |
○ |
|
|
BAL-16P LED polarizing ring light, brightness adjustable |
○ |
|
|
BAL-52A LED Ring light, brightness adjustable |
○ |
|
|
Back Light |
BTL-60A LED back light |
○ |
|
Point Light |
BPL-3A LED point light, 3W, brightness adjustable. |
○ |
|
BPL-3MC LED multi color point light, 3W, white, purple, blue, yellow, red, green and mixed light, brightness adjustable |
○ |
|
|
BPL-4A LED point light with numerically adjustable light adapter, 4W, brightness adjustable |
○ |
|
|
Bar Light |
BBL-5A bar LED illuminator, 60 LED, 12V/5W |
○ |
|
Cold Light Source |
BSL-3B LED light source with dual goose neck light guide, 6.5W |
○ |
|
BSL-15A-2 Cold LED light source with Dual Light Guide, 15W LED lamp |
○ |
|
|
BSL2-150A-2 Cold light source with Dual Light Guide, 21V/150W Halogen lamp |
○ |
|
|
Stage |
BMS-302 X-Y moving stage |
○ |
|
BMS-303 X-Y moving stage |
○ |
|
|
BMS-311 X-Y measuring stage |
○ |
|
|
BMS-316A X-Y measuring stage |
○ |
|
|
BMS-316B X-Y measuring stage |
○ |
|
|
BMS-400A large working stage |
○ |
|
|
BMS-260A XY working stage |
○ |
|
|
Stand and focus Arm |
BA1 Round type column plain stand with coarse focus arm. Stroke: 50mm. |
○ |
|
BA2 Round type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 50mm. |
○ |
|
|
BA3 Round type column plain stand with coarse and fine focus arm. Stroke: 67mm, fine precision: 0.002mm. |
○ |
|
|
BA4 Round type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 67mm, fine precision: 0.002mm. |
○ |
|
|
BA5 Square type column plain stand with coarse focus arm. Stroke: 150mm. |
○ |
|
|
BA6 Square type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 150mm. |
○ |
|
|
BA7 Square type column plain stand with coarse and fine focus arm. Stroke: 260mm, fine precision: 0.002mm. |
○ |
|
|
BA8 Square type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 260mm, fine precision: 0.002mm. |
○ |
|
|
BA9 multi-angle column plain stand with coarse focus arm. Stroke: 60mm. |
○ |
|
|
BA10 multi-angle column plain stand with coarse and fine focus arm. Stroke: 60mm, fine precision: 0.002mm. |
○ |
|
|
BA11 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 50mm. |
○ |
|
|
BA12 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
|
|
BA13 Round type column large plain stand with coarse focus arm. Column height: 320mm, Φ25mm, stroke: 50mm, base size: 380mm*260mm. Gross weight: 1.5kg. |
○ |
|
|
BFA-1 coarse focus arm. Stroke: 50mm. |
○ |
|
|
BFA-2 coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
|
|
BFA-3 multi-angle coarse focus arm, angle adjustable. Stroke: 50mm. |
○ |
|
|
BFA-4 multi-angle coarse and fine focus arm, angle adjustable. Stroke: 60mm, fine precision: 0.002mm. |
○ |
|
|
BFA-5 electric coarse and fine focus arm, supporting manual focusing and electric focusing. It has 5 preset positions, paired with 5 different magnification objectives. Stroke: 65mm, fine precision: 0.005mm. |
○ |
|
|
BFA-6 N interface coarse focus arm. Stroke: 50mm. |
○ |
|
|
BFA-7 N interface coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
Note: ●Standard Outfit, ○Optional
Optical Parameter
|
Model |
BS-10803DAMR |
|
|
Zoom body |
0.6-5.0X |
|
|
C mount |
0.5X |
|
|
Working distance |
2D: 86mm |
3D: 50mm |
|
FOV |
25.6mm*14.4mm-3.0mm*1.7mm |
|
|
Mount |
Standard C mount |
|
|
Observation mode |
2D observation Motor 360° rotation 3D side view observation |
|
|
Front light |
267 PCS LED, color temperature 6000K, brightness 0-100% adjustable |
|
|
Side light |
31 PCS LED, color temperature 6000K, brightness 0-100% adjustable |
|
|
Sensor |
1/1.8” SONY CMOS |
|
|
Resolution |
3840×2160 |
|
|
Pixel |
8.3MP |
|
|
Frame |
60 FPS |
|
|
Pixel size |
2.0μm*2.0μm |
|
|
Output |
HDMI output |
|
|
Memory function |
Take photo and video to U disk |
|
|
Measuring function |
Support measuring of line, angle, circle, radian, rectangle, polygon etc. |
|
Accessories
BS-10803DAMR with BA1 stand
BS-10803DAMR with BA13 stand
Sample Image
