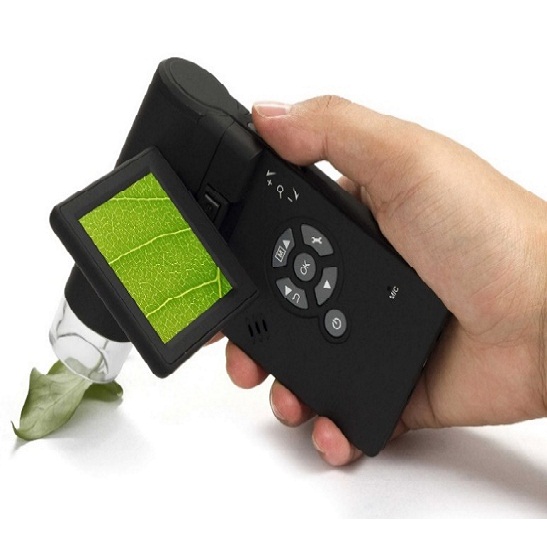

BPM-350P Portable Digital Microscope
Introduction
BPM-350P portable digital microscope provides powers from 20× and 300× with 5.0MP Image sensor, the LCD screen is 3inch. It can take images and videos and save in the micro SD card. It also can be connected to PC and take image, take video and do measurement with software. It is ideally suited for Medical, Industrial Inspection, Engineering, educational and Science Applications to examine coins, stamps, rocks, relics, insects, plants, skin, gems, circuit boards, various materials and many other objects.
Details
Overview
Quick Details
Model:BPM-350P
Magnification:20× to 300×
LCD Screen:3 Inches
Light Source:8 LED
Weight:400g
Image Sensor:5.0MP CMOS Sensor
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
BPM-350P portable digital microscope provides powers from 20× and 300× with 5.0MP Image sensor, the LCD screen is 3inch. It can take images and videos and save in the micro SD card. It also can be connected to PC and take image, take video and do measurement with software. It is ideally suited for Medical, Industrial Inspection, Engineering, educational and Science Applications to examine coins, stamps, rocks, relics, insects, plants, skin, gems, circuit boards, various materials and many other objects.
Features
1. Can work independently, portable and easy to operate.
2. 20×and 300×Magnification.
3. 3 inches LCD screen, resolution 320×240.
4. Images and videos can be saved in micro SD card, up to 32G.
5. 5.0 Mega Pixels CMOS sensor.
6. Manual Focus from 10mm to 50mm.
7. LED illumination with8pcs LED lamps, brightness adjustable.
8. Compatible with Windows XP/Vista/Win7/8/10, 32bit&64 bit and Mac operation system.
Application
BPM-350P portable digital microscope can be used for: Hobbyists, Educators, Medical Labs, Industrial Inspection, Engineering Applications, Teachers, Students, Science Applications, Doctor’s Offices, Police Agencies, Government Testing, and general use by consumers. It is ideally suited for examining solid objects such as coins, stamps, rocks, relics, insects, plants, skin, gems, circuit boards, various materials, and many other objects.
Specification
|
Item |
Specification |
|
Image Sensor |
5.0 Mega Pixels CMOS sensor (interpolated to 12.0MP) |
|
LCD Screen |
3 inches LCD screen, resolution 320×240 |
|
Capture Resolution |
12M, 9M, 5M, 3M, 1.3M, VGA |
|
Focus Range |
Manual Focus From 10mm to 50mm |
|
Frame Rate |
Max 30f/s under 600 Lus Brightness |
|
Magnification Ratio |
20× to 300×(Digital Magnification can be 1200× ) |
|
TV output |
Available to any monitor with TV in |
|
Card Slot |
Support MicroSD Card(not included) slot up to 32GB |
|
Light Source |
8 LED (adjustable by control wheel) |
|
Battery |
Rechargeable lithium battery (recharged by power adapter or USB) |
|
Measurement |
By software when connected to PC |
|
OSD Language |
English, German, Spanish, French, Russian |
|
Bundled Software |
PortableCapture Pro with measurement & calibration function |
|
Microscope Size |
130mm*112mm*28 |
|
Weight |
400g |
|
Package Content |
Microscope, Power Adapter, USB cable, TV cable, CD with Software, User’s manual |
|
Packing Info |
Gift box, 6pcs/carton, 9.0kgs/carton, 43.5×41.5x35cm |
|
Image Sensor |
5.0 Mega Pixels CMOS sensor (interpolated to 12.0MP) |
