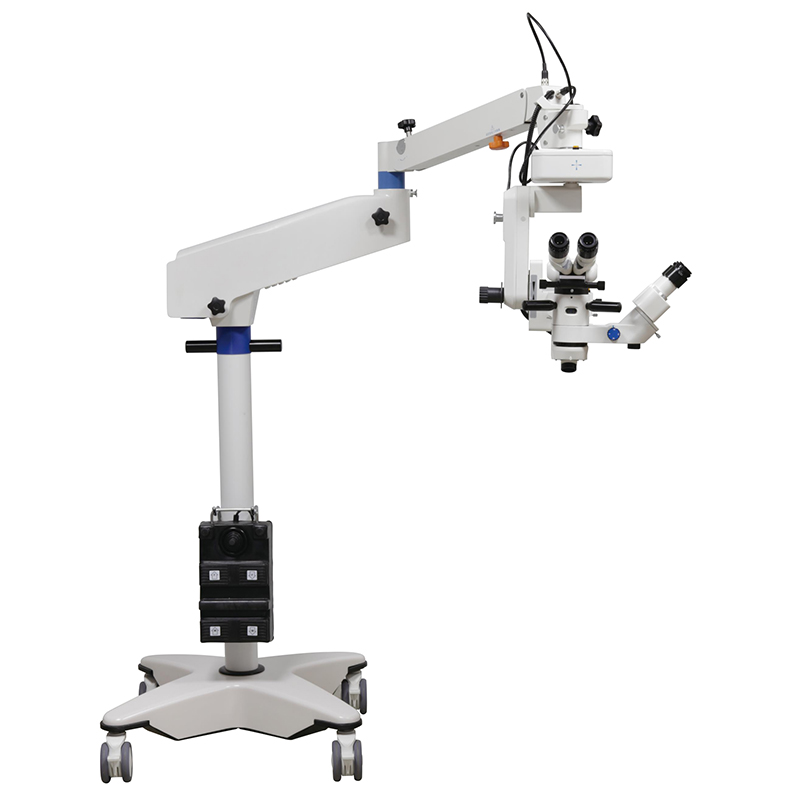

BOM-280 Operation Microscope
Introduction

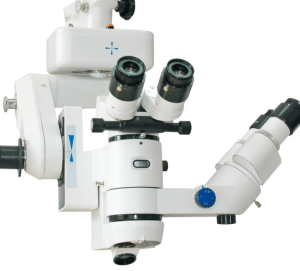

BOM-280 operation microscope is a double binocular operation microscope designed for two users. It has excellent optical performance and it is comfortable to be used. The main microscope has zoom magnification system, foot control switch, it can bring the clear image, the instrument is mainly used for ophthalmology operation.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 3-4 Weeks after Receiving Payment
Introduction
BOM-280 operation microscope is a double binocular operation microscope designed for two users. It has excellent optical performance and it is comfortable to be used. The main microscope has zoom magnification system, foot control switch, it can bring the clear image, the instrument is mainly used for ophthalmology operation.
Features
1. Germany Schott optics ensure the surgeon bright, balanced and fine observation.
2. Apochromatic optical balance technology is used in the optical design to provide good binocular fusion, strong stereoscopic sense and good color restoration, which ensures coaxial light focus and provides clearer field of view.
3. Space Balancing System is used in the instrument to make the microscope lens and arm to push and pull in any direction with ease.
4. Module design is used in electrical design to provide the instrument with fault self-diagnosis function and simple maintenance.

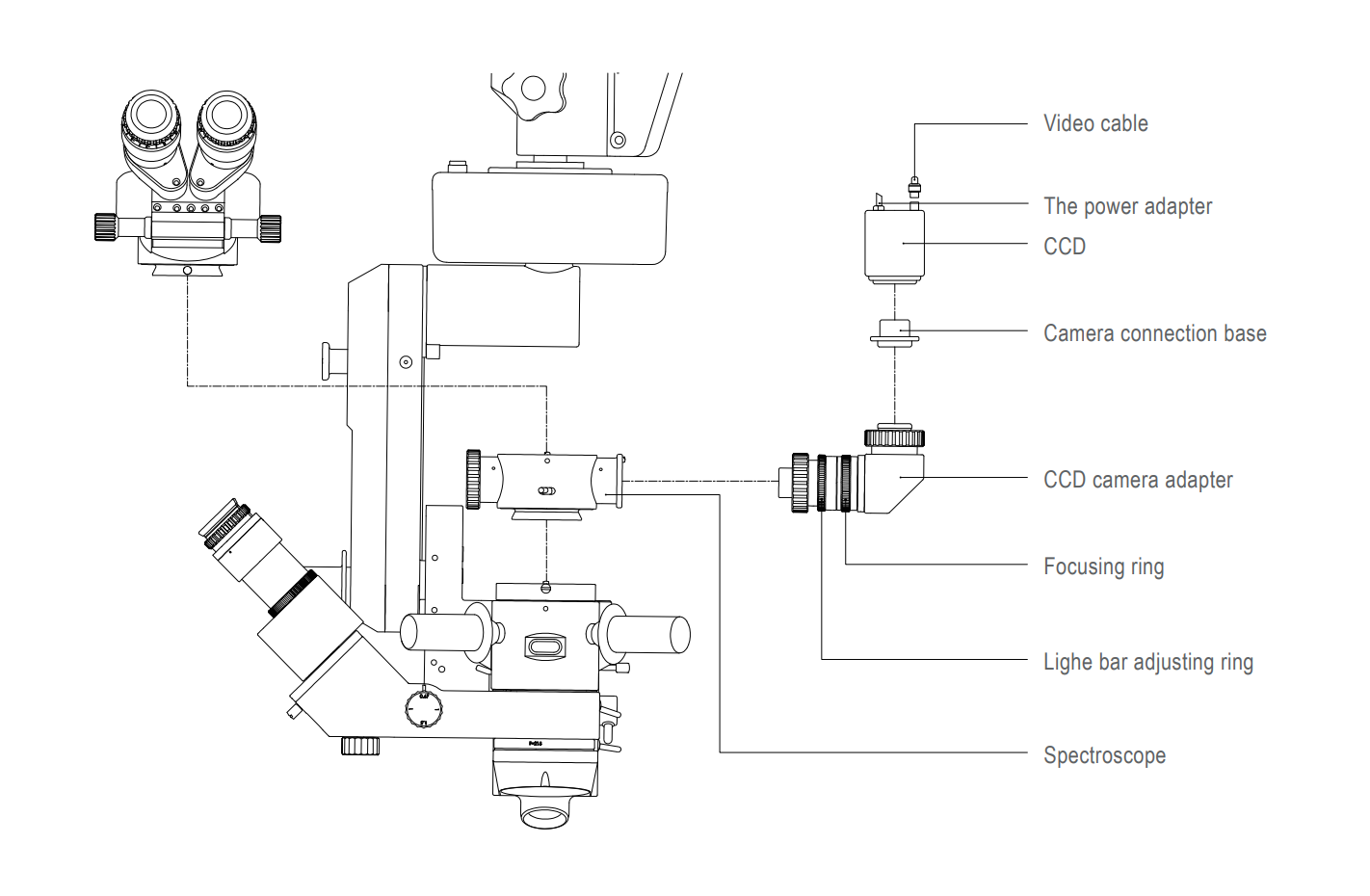

5. Good extensibility to add teaching microscope, image device and image system.
6. Lock device under the microscope arm ensures the safe distance and prevents accidents.
Application
BOM-280 has complete functions, it is mainly used in clinic and hospitals for operations and examinations of ophthalmic surgery.
Specification
|
Item |
Specification |
|
Eyepiece Magnification |
12.5× |
|
Magnification for Main Microscope |
f=200 |
|
Working Distance |
170mm |
|
Diopter Adjustment |
±5D |
|
Magnification for Main Microscope |
4.6×-27× motorized and manual control continuous magnification |
|
Magnification for Assistant Microscope |
6×, 10×, 16× |
|
Diameter of Field |
F46mm-F8.5mm |
|
Pupillary Adjustment |
55 mm – 75 mm (main microscope is 45-80mm) |
|
Focus for Assistant Microscope |
≥30mm |
|
Maximum Resolution |
119 LP/mm |
|
Light Source |
12V/100W, medical cold reflection halogen lamp |
|
Illumination Type |
6°+0° coaxial illumination of cold light source and 26° oblique illumination |
|
Coaxial Illuminance |
≥60,000 Lx, 1-9 level, panel operated |
|
Oblique Illuminance |
≥60,000 Lx, 1-9 level, panel operated |
|
Reaching Radius of Arm |
1230 mm |
|
Adjustable Vertical Range |
880-1420 mm |
|
Fine Focusing Speed and Range |
≤2 mm/s, ≥50 mm |
|
Speed for X/Y and Range |
≤2 mm/s, 50 mm×50 mm |
|
Input Voltage |
AC 220V/110V±10%, 50Hz/60Hz |
|
Power Consumption |
170 VA |
|
Fuse |
AC 250V T4.0A, AC 125V T8.0A |
|
Electrical Safety Standard |
IEC 60601-1, Class I |
|
Packing Volume |
0.756 m3, 5 cartons |
|
Total Weight |
215 kg |
