BMM2-1080A Big FOV Auto Focus Microscope
Introduction
BMM2-1080A Big FOV Auto Focus Microscope adopt auto focus system, focusing accurately, quickly and smoothly. Integrated lens, operated with mouse and pictures can be save on USB disk in real time.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
BMM2-1080A Big FOV Auto Focus Microscope adopt auto focus system, focusing accurately, quickly and smoothly. Integrated lens, operated with mouse and pictures can be save on USB disk in real time. A variety bracket and arms for option. This microscope is designed for the applications in the fields of machine vision, industrial inspection and scientific research.
Features
1.Auto focus function
The auto focus function realizes the variability of working distance, focusing accurately, quickly and conveniently. With built-in auto focus system, fast, accurate and smooth focusing can be achieved.
2.Built-in integrated lens
No additional lens. Built-in integrated lens with a variety of bracket or arm, more flexible application.
3.USB disk storage function
BMM2-1080A can take photos of the samples and save it on a USB disk in real time.
4.Mouse operation
Mouse operation is convenient and quick.

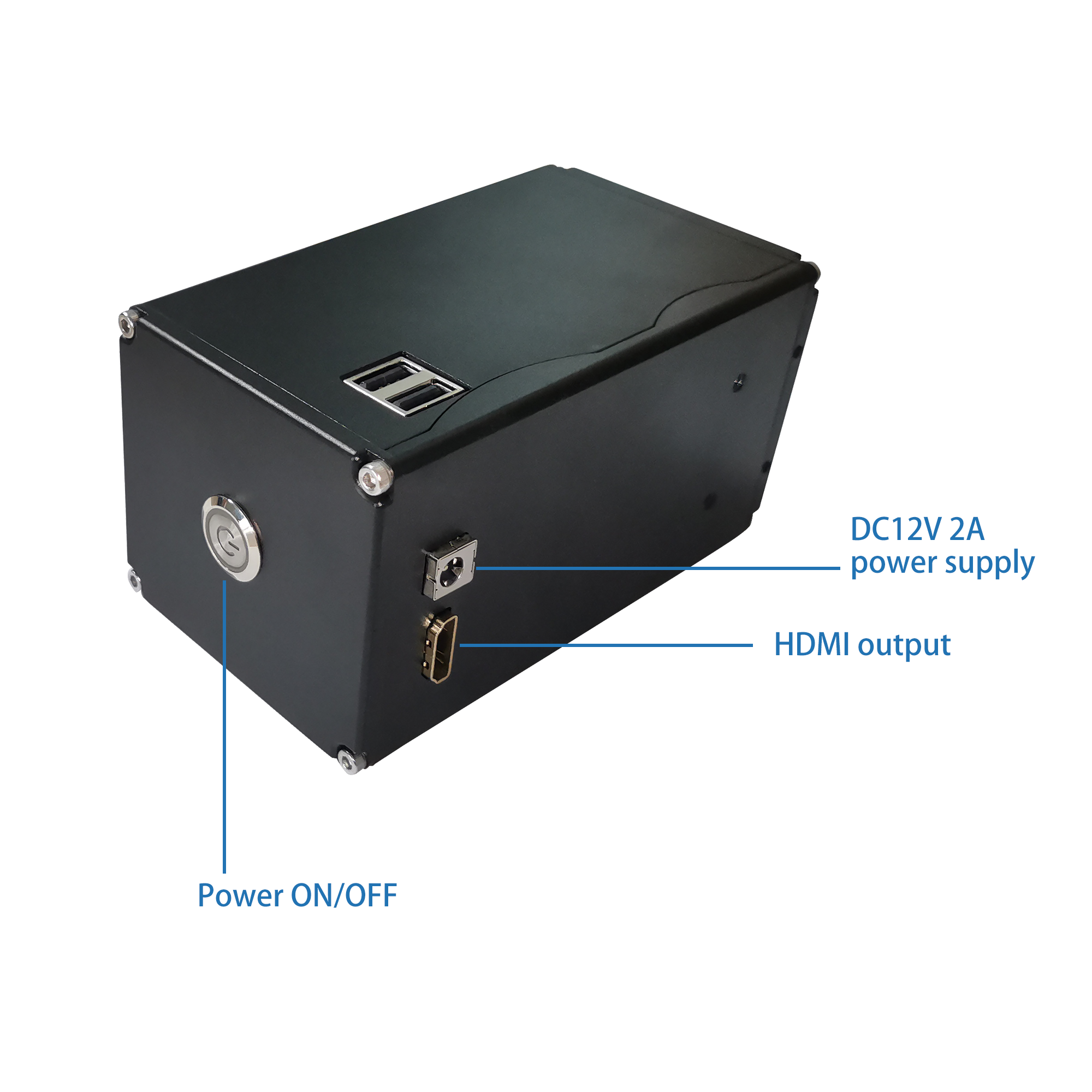

Product Details
Main Function
Shortcut function key
Multiple increase shortcut key
Multiple decrease shortcut key
Auto focus shortcut key
Auto white balance shortcut key
Auto exposure shortcut key
Photo trigger shortcut key
Photo browsing shortcut key
Image freezing shortcut key
Focusing control：
One key focusing mode
Auto focusing mode
Manual focusing mode
Specification
|
Item |
Specification |
BMM2-1080A |
|
Lens Magnification |
1X-14X |
● |
|
Built-in Camera |
1/2.5”, resolution :1920*1080, pixel size: 3.24μm, frame rate: 60fps, HDMI output |
● |
|
Focusing |
Auto Focus |
● |
|
Ring Light |
BAL-80A LED Ring light, brightness adjustable |
○ |
|
BAL-52AP LED polarizing ring light, brightness adjustable |
○ |
|
|
BAL-52ASL LED side ring light, brightness adjustable |
○ |
|
|
BAL-228A Four-zone lighting control separately big area LED ring light |
○ |
|
|
BAL-228AG LED four-zone ring light with frosted glass |
○ |
|
|
BAL-16P LED polarizing ring light, brightness adjustable |
○ |
|
|
BAL-52A LED Ring light, brightness adjustable |
○ |
|
|
Back Light |
BTL-60A LED back light |
○ |
|
Point Light |
BPL-3A LED point light, 3W, brightness adjustable. |
○ |
|
BPL-3MC LED multi color point light, 3W, white, purple, blue, yellow, red, green and mixed light, brightness adjustable |
○ |
|
|
BPL-4A LED point light with numerically adjustable light adapter, 4W, brightness adjustable |
○ |
|
|
Bar Light |
BBL-5A bar LED illuminator, 60 LED, 12V/5W |
● |
|
Cold Light Source |
BSL-3B LED light source with dual goose neck light guide, 6.5W |
○ |
|
BSL-15A-2 Cold LED light source with Dual Light Guide, 15W LED lamp |
○ |
|
|
BSL2-150A-2 Cold light source with Dual Light Guide, 21V/150W Halogen lamp |
○ |
|
|
Stage |
BMS-302 X-Y moving stage |
○ |
|
BMS-303 X-Y moving stage |
○ |
|
|
BMS-311 X-Y measuring stage |
○ |
|
|
BMS-316A X-Y measuring stage |
○ |
|
|
BMS-316B X-Y measuring stage |
○ |
|
|
BMS-400A large working stage |
○ |
|
|
BMS-260A XY working stage |
○ |
|
|
Stand and Focus Arm |
Round type column plain stand with coarse focus arm. Height：518mm. |
● |
|
BA1 Round type column plain stand with coarse focus arm. Stroke: 50mm. |
○ |
|
|
BA2 Round type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 50mm. |
○ |
|
|
BA3 Round type column plain stand with coarse and fine focus arm. Stroke: 67mm, fine precision: 0.002mm. |
○ |
|
|
BA4 Round type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 67mm, fine precision: 0.002mm. |
○ |
|
|
BA5 Square type column plain stand with coarse focus arm. Stroke: 150mm. |
○ |
|
|
BA6 Square type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 150mm. |
○ |
|
|
BA7 Square type column plain stand with coarse and fine focus arm. Stroke: 260mm, fine precision: 0.002mm. |
○ |
|
|
BA8 Square type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 260mm, fine precision: 0.002mm. |
○ |
|
|
BA9 multi-angle column plain stand with coarse focus arm. Stroke: 60mm. |
○ |
|
|
BA10 multi-angle column plain stand with coarse and fine focus arm. Stroke: 60mm, fine precision: 0.002mm. |
○ |
|
|
BA11 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 50mm. |
○ |
|
|
BA12 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
|
|
BA13 Round type column large plain stand with coarse focus arm. Column height: 320mm, Φ25mm, stroke: 50mm, base size: 380mm*260mm. Gross weight: 1.5kg. |
○ |
|
|
BFA-1 coarse focus arm. Stroke: 50mm. |
○ |
|
|
BFA-2 coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
|
|
BFA-3 multi-angle coarse focus arm, angle adjustable. Stroke: 50mm. |
○ |
|
|
BFA-4 multi-angle coarse and fine focus arm, angle adjustable. Stroke: 60mm, fine precision: 0.002mm. |
○ |
|
|
BFA-5 electric coarse and fine focus arm, supporting manual focusing and electric focusing. It has 5 preset positions, paired with 5 different magnification objectives. Stroke: 65mm, fine precision: 0.005mm. |
○ |
|
|
BFA-6 N interface coarse focus arm. Stroke: 50mm. |
○ |
|
|
BFA-7 N interface coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
Note: ●Standard Outfit, ○Optional
Application
BMM2-1080A Big FOV Auto Focus Microscope is widely used in educational demonstration, agriculture research, industrial material, semi-conductor, integrated circuit board inspection area and so on. Widely used in electric equipment, semi-conductor, LCD and LED, for digital image observation, inspection and measurement.
Optical Parameter
|
Model |
BMM2-1080A |
|
Resolution |
1920*1080 |
|
Pixel Size |
3.24μm |
|
Optical Size |
1/2.5″ |
|
Color Depth |
12:12:12 RGB |
|
Frame Rate |
60 fps |
|
Color Adjustment |
Manual / Auto |
|
Luminance Adjustment |
Manual / Auto |
|
Storage function |
Take photo saved with BMP /JPG format, supporting online preview |
|
Lens Magnification |
1X-14X |
|
Working distance |
100mm-∞ |
|
Power Input |
DC 12V, 2A |
|
Work Moisture |
5%-85% |
|
Work Temperature |
0-60°C |
|
Display Interface |
HDMI Output |
|
Stand |
330*300mm base size, height：518mm, coarse focus |
|
Optical Magnification |
FOV (100mm working distance) |
FOV (300mm working distance) |
|
1X |
172mm*92mm |
460mm*240mm |
|
2X |
96mm*50mm |
230mm*130mm |
|
5X |
53mm*29mm |
116mm*60mm |
|
8X |
40mm*22mm |
74mm*40mm |
|
10X |
34mm*19mm |
62mm*34m |
|
14X |
24mm*14mm |
47mm*26mm |
