BMM-4K8MPB Electric Controlled Continuous Zoom and Autofocus Digital Macro Microscope
Introduction
BMM is a series of electric controlled continuous zoom and autofocus all-in-one digital microscope with a large field of view. It is integrated with HDMI camera, Electric Controlled Continuous Zoom Auto-focus Objective and LED Integrated Illumintaion Light. BMM is the abbreviation of BestScope Macro Microscope. Different products in the BMM series can be formed with different part to satisfy the application requirement.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
BMM is a series of electric controlled continuous zoom and autofocus all-in-one digital microscope with a large field of view. It is integrated with HDMI camera, Electric Controlled Continuous Zoom Auto-focus Objective and LED Integrated Illumintaion Light. BMM is the abbreviation of BestScope Macro Microscope. Different products in the BMM series can be formed with different part to satisfy the application requirement.
BMM can be assembled with various brackets or arms and offer a continuous zooming ratio with different lens. BMM also supports autofocus mode and manual focus mode.
BMM comes with a high-performance SONY CMOS sensor. It also has an embedded ARM core, allowing the camera to be connected directly to the HDMI monitor. The camera has XFCAMView software built within it, including Camera Control Panel, Auto Focus Control Panel, Measurement Toolbar, and Synthesis Camera Control Toolbar. Users can directly control the camera and perform various operations through a USB mouse. The images and videos captured by BMM can be saved on an SD card for on-site analysis and follow-up research.
BMM-4K8MPB supports HDMI/USB/LAN/WiFi control and video output (ImageView). The frame rate of the output is 4K/30FPS, and the zoom range is 1X~18X. It also supports electric zoom and auto focusing.
Features
1. 5 groups 16 elements lens with 0.0218~0.392X, 18X zoom ratio, supports auto and manual focus;
2. 250mm standard working distance with 205~255mm depth of field;
3. At standard working distance, the large field of view 255mm*145mm at low magnification, helping users to quickly locate the target object, the small field of view 14.2mm*8mm at higher magnification, helping users to observe microscopically;
4. Sony 1/2.8” 4K Starvis CMOS with high signal-to-noise ratio;
5. 4K HDMI/USB/ETH/WiFi multiple video outputs;
6. 4K/1080P auto switching according to monitor resolution;
7. SD card/USB flash drive for captured image and video storage, support local preview and playback;
8. Built-in mouse control software XFCAMView, all functions can be realized with USB mouse;
9. Embedded mouse Camera Control Panel, Measurement Toolbar, Synthesis Control Toolbar, AF Control Panel;
10. Multi-language support;
11. Head suction LED ring light, the brightness can be directly controlled by XFCAMView;
12. With the adapter bracket of 76mm diameter, a electric controlled continuous zoom BMM can be built.
Application

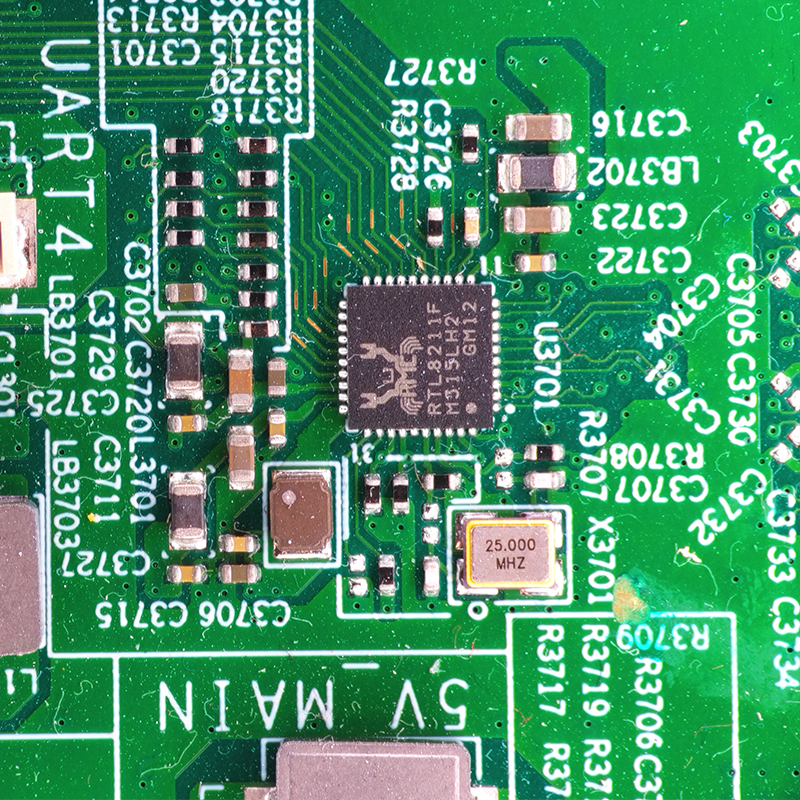

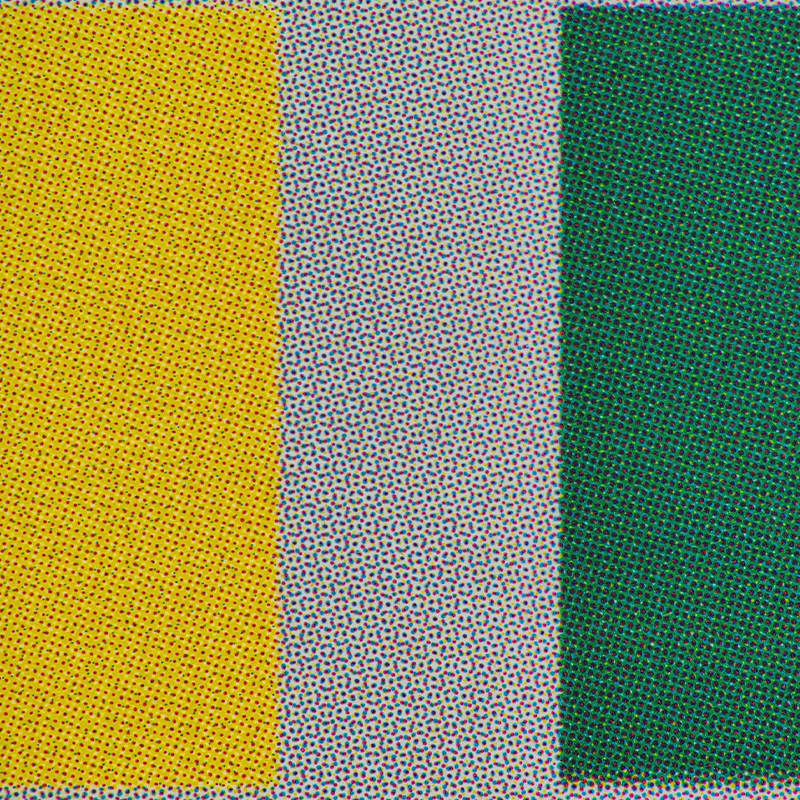

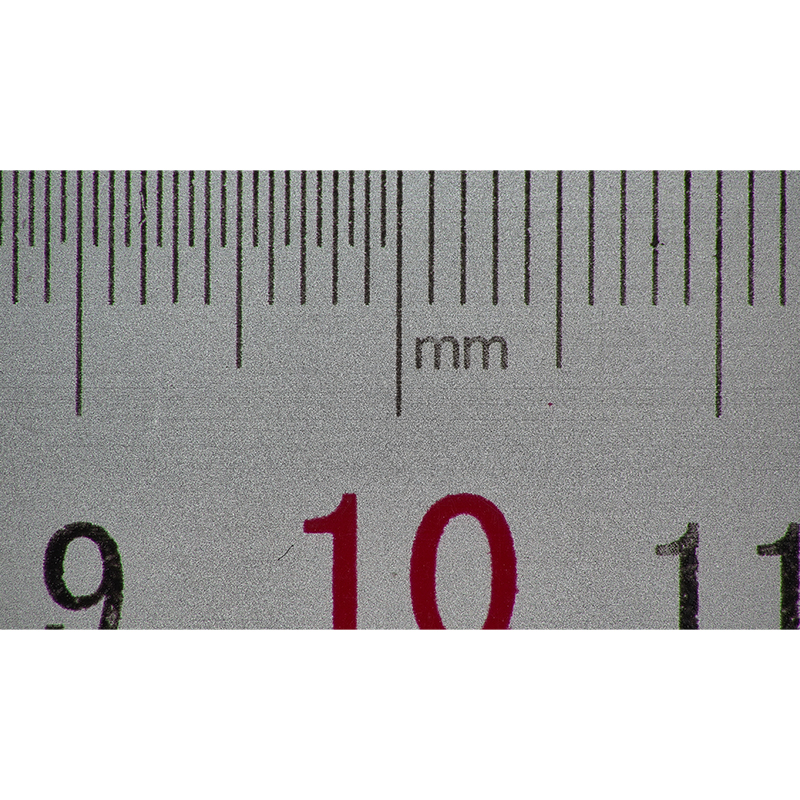

BMM can be widely used in industrial inspection, medical observation, teaching and scientific research, automation system, and other fields.
Specification
BMM Camera Module Datasheet
|
Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity/ Dark Signal |
FPS/Resolution |
Binning |
Exposure(ms) |
|
BMM-4K8MPB |
Sony IMX415LQR-C |
1.45×1.45 |
300mv/0.13 with 1/30s |
30@3840*2160(HDMI) |
1×1 |
0.04~1000 |
C: Color; M: Monochrome;
BMM Lens Module Datasheet
|
Order Code |
Working Distance (mm) |
Zoom Range |
MTF(lp/mm) |
Distortion |
FOV@1X(mm) |
FOV@18X(mm) |
|
BMM-18X |
205~255 |
0.021X~0.39X |
160 |
0.5% |
255×145 |
14.2×8 |
1X and 18x are defined as the normalized magnification, which is only used to represent the relative relationship between the lowest and highest magnification. Here, the normalized equations are 1x = 0.021/0.021; 18X=0.39/0.021;
BMM Light Module
|
Order Code |
LED |
Power |
Inner Dia.(mm) |
Out Dia.(mm) |
|
BRL-8A |
8 CREE xpes |
3V/3A |
50 |
76 |
BRL: BestScope ring light with adjustable brightness
Specification of BMM-4K8MPB
|
Interface & Button Functions |
||
|
USB Mouse |
USB mouse for XFCAMView control |
|
|
USB2.0 |
Connect USB flash drive to save pictures and videos Connect 5G WLAN module to transfer video wirelessly in real time with ImageView/ ImageLite |
|
|
HDMI |
Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
|
|
USB Video |
Connect PC or other host device to realize video image transmission with ImageView/ ImageLite |
|
|
LAN |
LAN port to connect router and switch to transfer video with ImageView/ ImageLite |
|
|
ON/OFF |
Power on/off switch |
|
|
LED |
Power LED indicator |
|
|
SD |
Comply with SDIO3.0 standard and SD card could be inserted for video and images saving |
|
|
DC12V3A |
DC12V3A power input |
|
|
XFCAMView Software Funcitons |
||
|
UI Operation |
With USB mouse to operate on the embedded XFCAMView |
|
|
Image Capture |
8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive |
|
|
Video Record |
Video format：8M(3840*2160) H264/H265 encoded MP4 file Video saving frame rate:30fps |
|
|
Camera Control Panel |
Including Exposure, Gain, White Balance, Sharpness, Denoise, Denoise, Saturation, Gamma, Contrast, Brightness, Power Frequency control |
|
|
Measurement Toolbar |
Including Calibration, Measurement, and measurement parameter Export functions |
|
|
Synthesis Control Toolbar |
Including software Zoom, Flip, Freeze, Crosshair, LED Control, Auto-focus, Comparison, Browser , Setting, Version Check function |
|
|
Auto Focus Control Panel |
Including Zoom, Auto Focus, One Push, Manual Focus, Reset, and other functions |
|
|
Software ImageView Environment under LAN/WLAN/USB Video Output |
|
|
White Balance |
Auto White Balance |
|
Color Technique |
Ultra-Fine Color Engine |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
|
Recording System |
Still Picture or Movie |
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)/ View OSx(Mac OS X)/ Lite Linux/ Lite |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 4GB or More |
|
|
Ethernet Port: RJ45 Ethernet Port |
|
|
Display:19” or Larger |
|
|
CD-ROM |
|
|
Operating Environment |
||
|
Operating Temperature(in Centidegree) |
-10~ 50 |
|
|
Storage Temperature(in Centidegree) |
-20~ 60 |
|
|
Operating Humidity |
30~80%RH |
|
|
Storage Humidity |
10~60%RH |
|
|
Dimension |
||
|
Length x Width x Height |
80mm x 80mm x 80mm |
|
|
Shipping Weight |
0.75kg |
|
Dimension of BMM-4K8MPB
Packing Information of BMM-4K8MPB
Packing Information of BMM-4K8MPB
|
Standard Packing List |
|||
|
A |
Gift box: L:220cm W:220cm H:110cm (1pcs, 2.0kg/box) |
||
|
B |
BMM-4K8MPB |
||
|
C |
Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 3A |
American Standard: Model: HKA03612030-7K : UL/CE/FCC(With American Standard AC Power Cable) European Standard: Model: HKA03612030-7K : UL/CE/FCC(With European Standard AC Power Cable) EMI Standard: FCC Part 15 Subpart B EMS Standard: EN61000-4-2,3,4,5,6 |
|
|
D |
USB Mouse |
||
|
E |
HDMI Cable |
||
|
F |
USB2.0 A male to A male gold-plated connectors cable /2.0m |
||
|
G |
CD (Driver & utilities software, Ø12cm) |
||
|
Optional Accessory |
|||
|
H |
Ethernet cable |
||
|
I |
LED Ring Light(BRL-8A) |
||
|
J |
USB flash drive |
||
|
K |
USB WLAN adapter |
||
|
L |
SD card(16G) |
||
|
M |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
|
