BLM5-342 LCD Digital Zoom Stereo Microscope
Introduction
Adopted Greenough optical system, BLM5-342 LCD Digital Zoom Stereo Microscope comes with compact structure, high quality optics and reliable illuminations.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 2-4 Weeks after Receiving Payment
Introduction
Introduction
Adopted Greenough optical system, BLM5-342 LCD Digital Zoom Stereo Microscope comes with compact structure, high quality optics and reliable illuminations. New designed optical path and click stop function, make it more precision and practical for inspection of electronic components and PCB board in industrial field, they are also available for scientific research, education and antiques identification etc. Optional eyepieces, auxiliary objectives, stands and illumination device can expand the applications to meet various requirements.

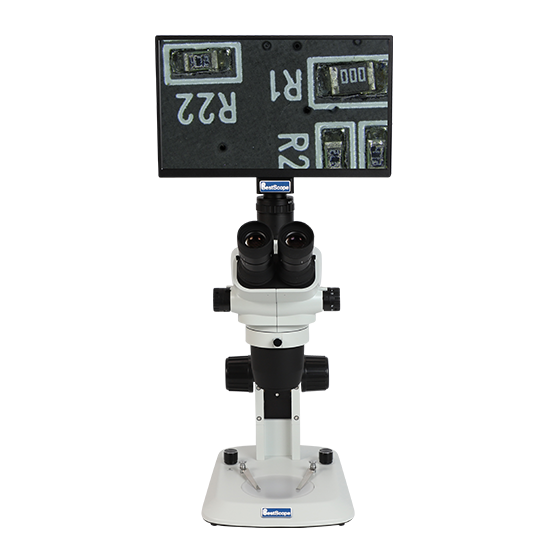

BLM5-342 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.

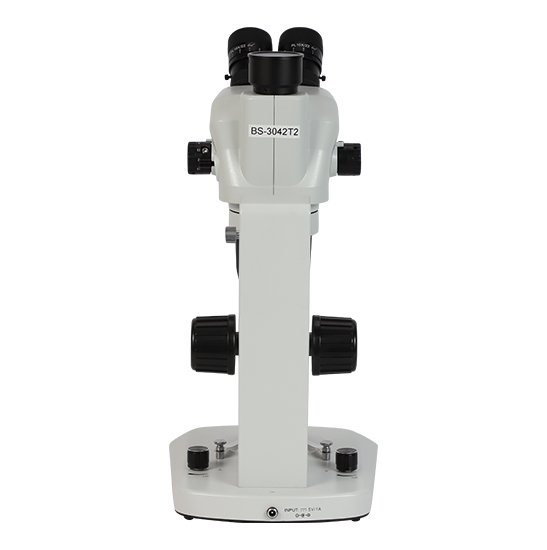

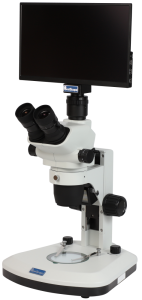

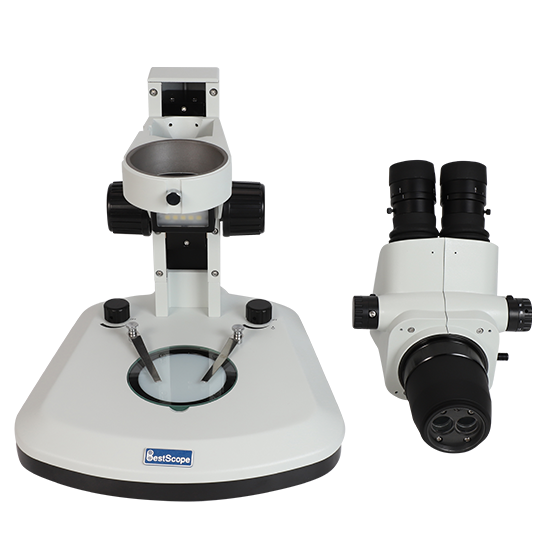

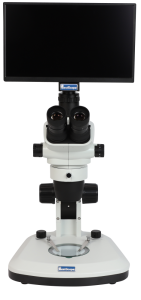

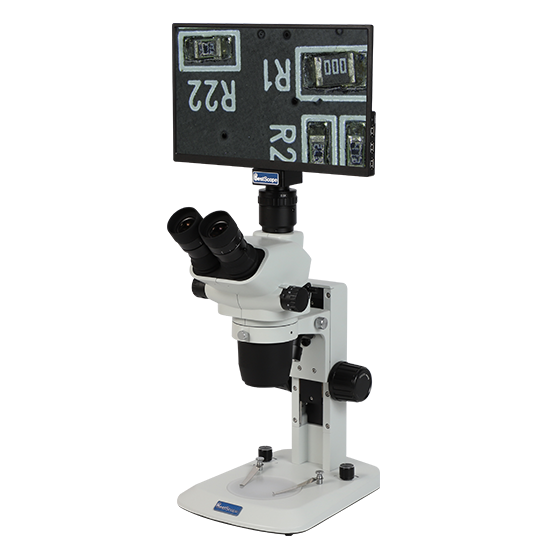

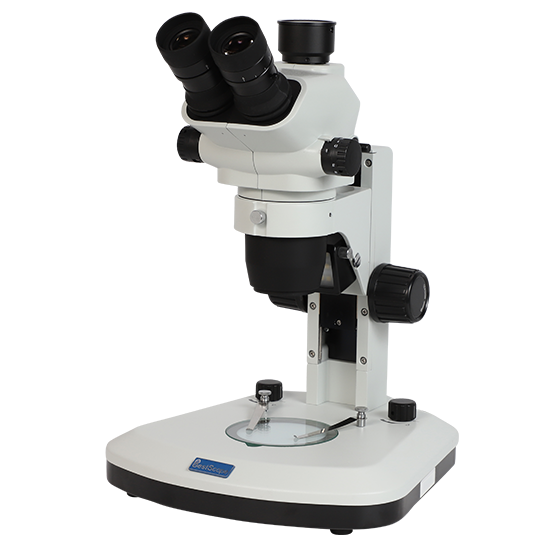

BLM5-342 is a combination of BS-3042T-BL12 and BLC-480B all-in-one camera.
Features

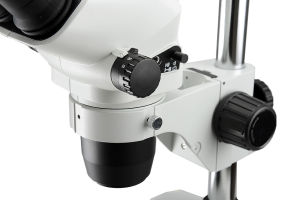

1.Click stop function

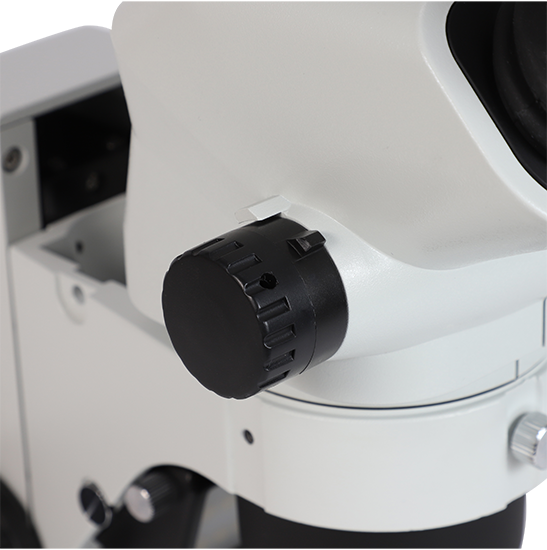

New main magnification freeze frame function has been added, which can accurately and repeatedly locate the same magnification, effectively solving the problem of magnification calculation when observing objects. The zoom handwheel feels lightweight and comfortable, effectively avoiding fatigue caused by long-term operation.
2.Flatnessand depth of view
Greenough optical system with convergence angle of 10 degree, and working with wide field plan eyepieces, ensures the excellent flatness and depth of field.
3.Diverse auxiliary objectives

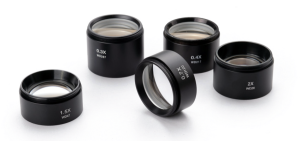

Various auxiliary objectives 0.3X, 0.4X, 0.5X, 0.7X, 1.5X, 2X for option, to expand BS-3042 series stereo microscopes’ magnification from 2X to 180X. The Max. working distance is 287mm while the Min. is 26mm, to meet all the requirements from different applications.
4.Abundant illumination systems.
LED/halogen/fluorescence illuminations for option, either built-in illuminator or external type is available, provide the best image by choosing a suitable light.
5.All-in-one camera

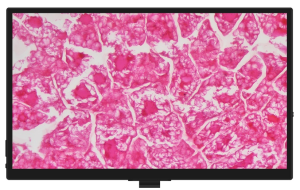

BLM5-342 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.
Application
BLM5-342 series microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing and in the medical, forensic science and veterinary industries. The microscopes can be used for circuit board repair and inspection, semiconductor inspection, SMT work, electronics inspection, dissection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.
Specification
|
Item |
Specification |
BLM5-342 |
|
|
LCD Digital Camera |
BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. |
● |
|
|
Viewing Head |

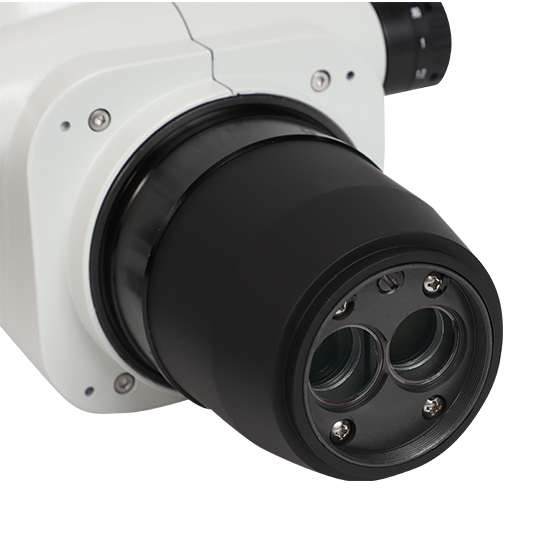

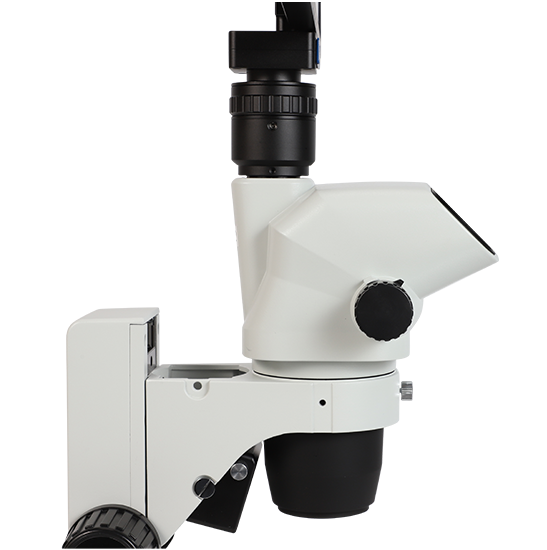

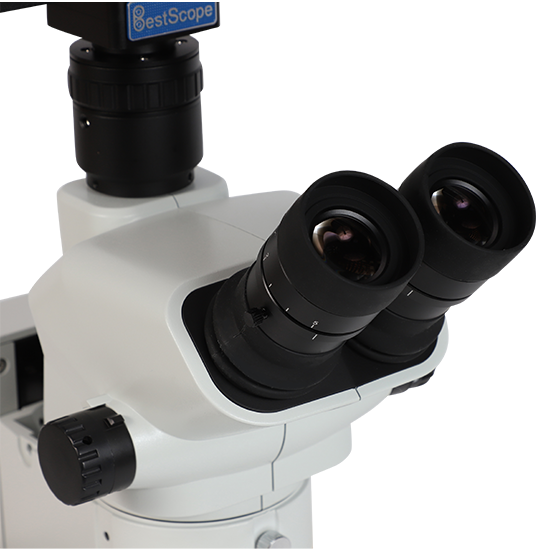

45° inclined trinocular head with fixed eyepiece tube, interpupillary distance: 52-76mm, with click stop and interlock mechanism, 30mm tube. Zoom objective 0.67X – 4.5X, working distance: 110mm |
● |
|
|
Eyepiece |
High eyepoint wide field plan eyepiece PL10X/22mm, with adjustable diopter |
● |
|
|
High eyepoint wide field plan eyepiece PL15X/16mm, with adjustable diopter |
○ |
||
|
High eyepoint wide field plan eyepiece PL20X/12mm, with adjustable diopter |
○ |
||
|
Objective |
Zoom objective |
0.67×-4.5× |
● |
|
Auxiliary objective |
0.3X, WD=287mm |
○ |
|
|
0.4X, WD=217mm |
○ |
||
|
0.5X, WD=177mm |
○ |
||
|
0.75X, WD=120mm |
○ |
||
|
1.5X, WD=47mm |
○ |
||
|
2X, WD=26mm |
○ |
||
|
Zoom Ratio |
1:6.7 |
● |
|
|
Working Distance |
110mm |
● |
|
|
Head Mount |
76mm |
● |
|
|
Stand |

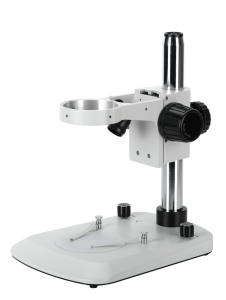

BSZ-BL12 Pillar stand and small fan-shaped base, pole diameter Φ32mm, pole height 260mm. Base size: 273*206mm, Φ100 black & white plate, with clips. Stand height 260mm, incident (1pc LED lamp, angel adjustable) and transmitted (14pcs LED lamps) LED illumination with separate control, color temperature 5700-6500K, brightness 20-22LM, 3pcs NiMH rechargeable battery. External wide range AC adapter, input voltage 100V-240V, output 5V 1A. Focusing arm tension adjustable, moving range 110mm. |
● |
|
|
C-Mount |
C-mount adapter and relay lens |
○ |
|
|
0.35X C-mount adapter, adjustable focus, with internal hexagonal spanner M4 |
○ |
||
|
0.5X C-mount adapter, adjustable focus, with internal hexagonal spanner M4 |
● |
||
|
0.65X C-mount adapter, adjustable focus, with internal hexagonal spanner M4 |
○ |
||
|
1X C-mount adapter, adjustable focus, with internal hexagonal spanner M4 |
○ |
||
|
Other |
Dust proof mirror, Ф54mm, installation thread 48mm |
○ |
|
|
Ring lamp connector, Ф54mm, installation thread 48mm |
○ |
||
Note: ● Standard Outfit, ○ Optional
|
Order Code |
Sensor & Size (mm) |
Pixel (μm) |
G Sensitivity Dark Signal |
FPS/Resolution ADC |
Binning |
Exposure |
|
BLM5-342 |
Sony IMX678(C) |
2.0×2.0 |
1364mv with 1/30s |
30@3840*2160 |
1×1 |
0.04~1000 |
|
Order Code |
Video Saving (FPS/Resolution) |
HDMI2.0 (FPS/Resolution) |
USB2.0 (FPS/Resolution) |
WiFi (FPS/Resolution) |
|
BLM5-342 |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |

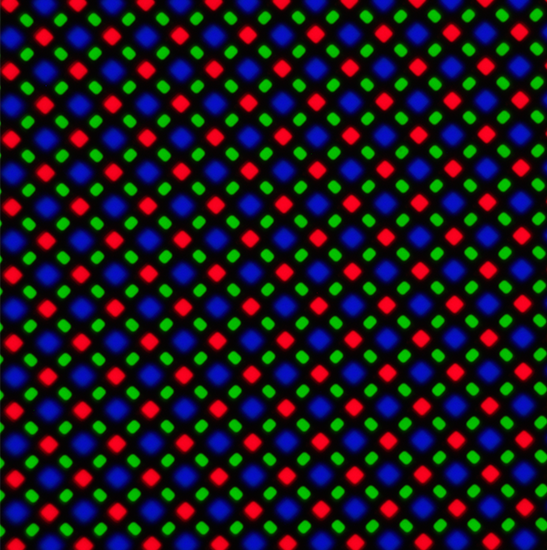

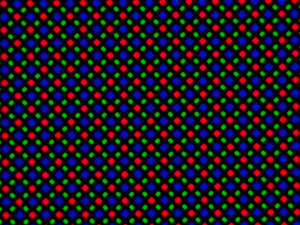

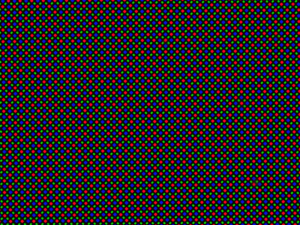

Sample Images
System Diagram
Dimension
Unit: mm
Accessories
BLM5-342 with BSZ-BL1 stand
Stand & Base
|
Code |
Photo |
Description |

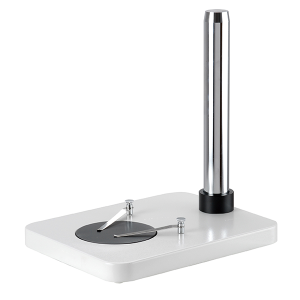

Focus Holder |
|

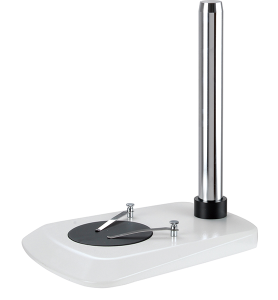

BSZ-B1 |
|
BSZ-B1 Pillar stand flat base, pole diameter Φ32mm, pole height 228mm. Base size: 200*255*22mm, Φ95 black & white plate, with clips. No illumination. |
BSZ-A1 |
|

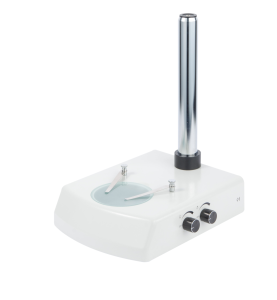

BSZ-B2 |
|
BSZ-B2 Pillar stand transmitted base, with halogen lamp 12V 15W as lower light source, brightness adjustable. Pole diameter Φ32mm, pole height 228mm. Base size: 200*255mm, Φ95 glass plate, with clips. |
BSZ-A1 |
|
BSZ-B4 |
|

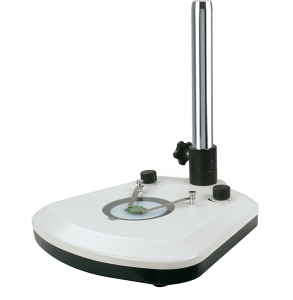

BSZ-B4 Pillar stand small fan-shaped base, pole diameter Φ32mm, pole height 260mm. Base size: 273*206mm, Φ100 black & white plate, with clips. No illumination. |
BSZ-A2 /BSZ-A3 /BSZ-A5 |
|
BSZ-B5 |
|

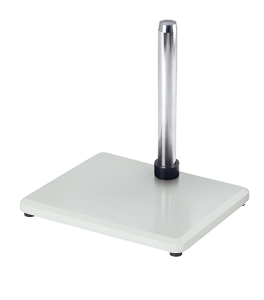

BSZ-B5 Pillar stand large flat base, pole diameter Φ32mm, pole height 260mm. Base size: 260*320mm. No illumination. |
BSZ-A1 /BSZ-A2 /BSZ-A3 /BSZ-A5 |
|

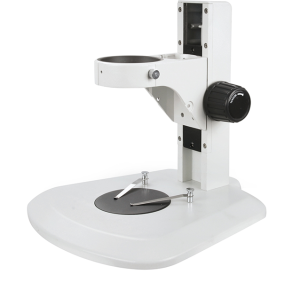

BSZ-B6 |
|
BSZ-B6 integrated stand and large fan-shaped base. Base size: 303*290mm, Φ100 black & white plate, with clips. With focus holder, focusing range 106mm. No illumination. |
With own focus holder |
|
BSZ-BL1 |
|

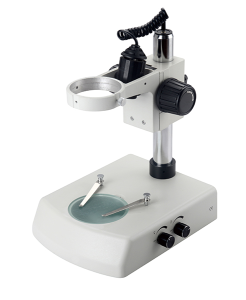

BSZ-BL1 Integrated stand and large fan-shaped base. Base size: 303*290mm, Φ100 glass plate, with clips. Stand height 245mm, incident (15pc LED lamp) and transmitted (70pcs LED lamps) LED illumination with separate control. Focusing arm tension adjustable, moving range 107mm, microscope mount size: Ф76mm. |
With own focus holder |
|

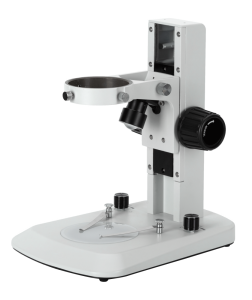

BSZ-BL3 |
|
BSZ-BL3 Pillar stand and large fan-shaped base, pole diameter Φ32mm, pole height 260mm. Base size: 303*290mm, Φ100 glass plate, with clips. Incident (15pc LED lamp) and transmitted (70pcs LED lamps) LED illumination with separate control. |
BSZ-A2 |
|
BSZ-BL6 |
|
BSZ-BL6 Pillar stand transmitted base, pole diameter Φ32mm, pole height 228mm. Base size: 255*200mm, Φ95 glass plate, with clips. Incident and transmitted (1pcs LED lamp, 5W) LED illumination with separate control. Low voltage safety, low power consumption, and low heat generation. |
With own focus holder |
|
BSZ-BL11 |
|

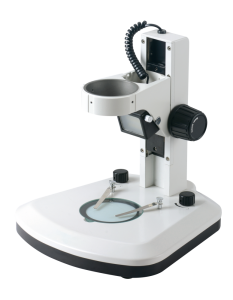

BSZ-BL11 Pillar stand and small fan-shaped base, pole diameter Φ32mm, pole height 260mm. Base size: 273*206mm, Φ100 black & white plate, with clips. Incident (1pc LED lamp, angel adjustable) and transmitted (14pcs LED lamps) LED illumination with separate control, color temperature 5700-6500K, brightness 20-22LM, with 3pcs NiMH rechargeable battery. External wide range AC adapter, input voltage 100V-240V, output 5V 1A. |
With own focus holder |
|
BSZ-BL12 |
|
BSZ-BL12 Pillar stand and small fan-shaped base, pole diameter Φ32mm, pole height 260mm. Base size: 273*206mm, Φ100 black & white plate, with clips. Stand height 260mm, incident (1pc LED lamp, angel adjustable) and transmitted (14pcs LED lamps) LED illumination with separate control, color temperature 5700-6500K, brightness 20-22LM, 3pcs NiMH rechargeable battery. External wide range AC adapter, input voltage 100V-240V, output 5V 1A. Focusing arm tension adjustable, moving range 110mm. |
With own focus holder |
|
BSZ-ST1 |
|

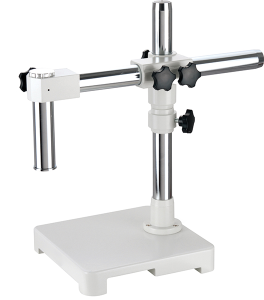

BSZ-ST1 single arm universal stand, can expand the operating range and observe objects in any direction and angle. Pole diameter: φ32mm, vertical column height: 380mm, focusing column height: 140mm, horizontal movement: 235mm. Base size: 210*260*20mm. No illumination. |
BSZ-A1 /BSZ-A2 /BSZ-A3 /BSZ-A5 |
|
BSZ-ST2 |
|

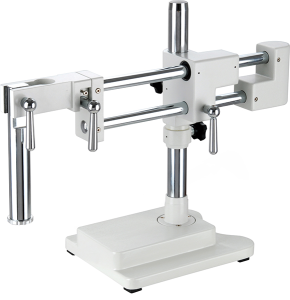

BSZ-ST2 double arm universal stand, can expand the operating range and observe objects in any direction and angle. Pole diameter: φ32mm, vertical column height: 380mm, focusing column height: 140mm, horizontal movement: 235mm. Base size: 210*260*20mm. No illumination. |
BSZ-A1 /BSZ-A2 /BSZ-A3 /BSZ-A5 |
