BLM5-340 LCD Digital Zoom Stereo Microscope
Introduction

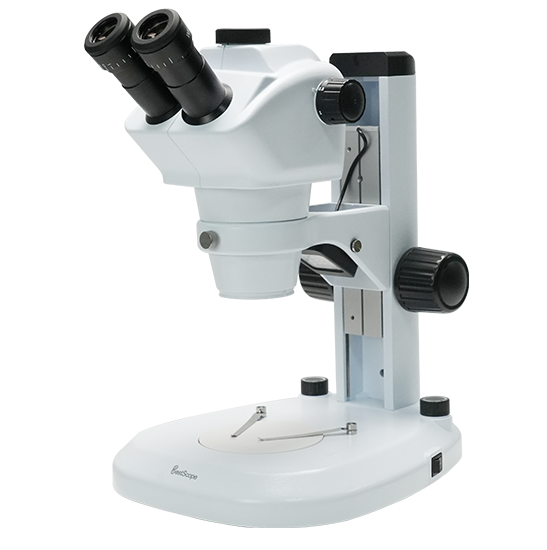

Stereo microscopes are also known as low magnification and dissecting microscopes. BLM5-340 LCD Digital Zoom Stereo Microscope on a post stand offers upright, un-reversed 3D images that remain in focus throughout the zoom range.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 2-4 Weeks after Receiving Payment
Introduction
Introduction
Stereo microscopes are also known as low magnification and dissecting microscopes. BLM5-340 LCD Digital Zoom Stereo Microscope on a post stand offers upright, un-reversed 3D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.
BLM5-340 LCD Digital Zoom Stereo Microscope is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary, BLM5-340 gives large range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!

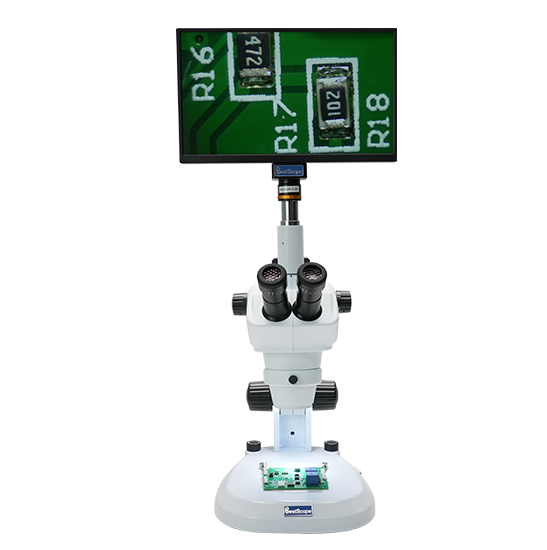

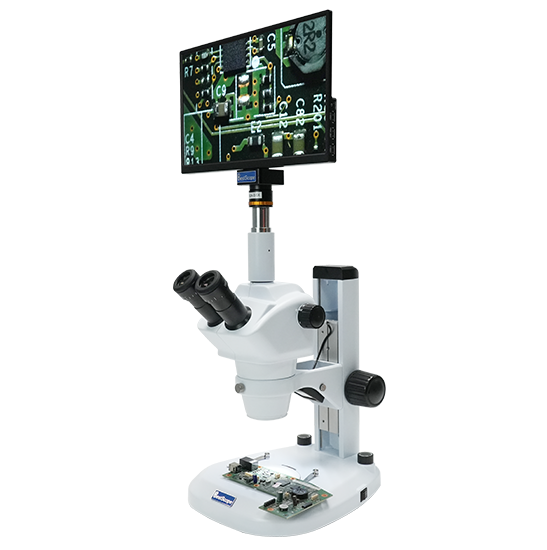

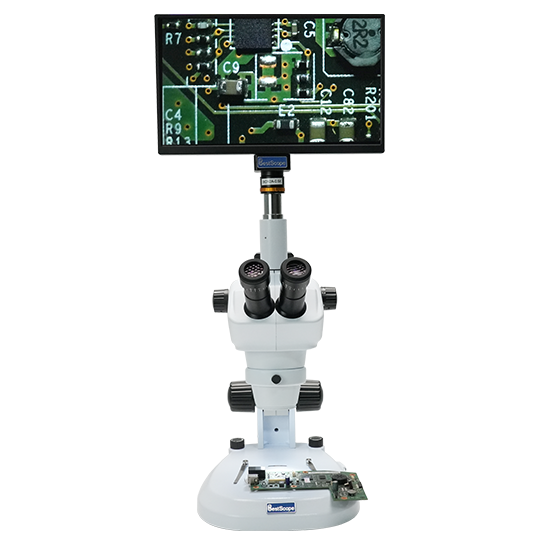

BLM5-340 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.
BLM5-340 is a combination of BS-3040T and BLC-480B all-in-one camera.
Features
1.With high quality optical components, providing sharp and striking contrast image and ensure flat image at large depth of field, Ease the tiredness with ergonomic design.
2.With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 20,000 hours.
3.With Complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field.
4.BLM5-340adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.
Application
BLM5-340 LCD Digital Zoom Stereo Microscope is of great value in a variety of applications such as circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.
Specification
|
Item |
Specification |
BLM5-340 |
|
LCD Digital Camera |
BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. |
● |
|
Viewing Head |

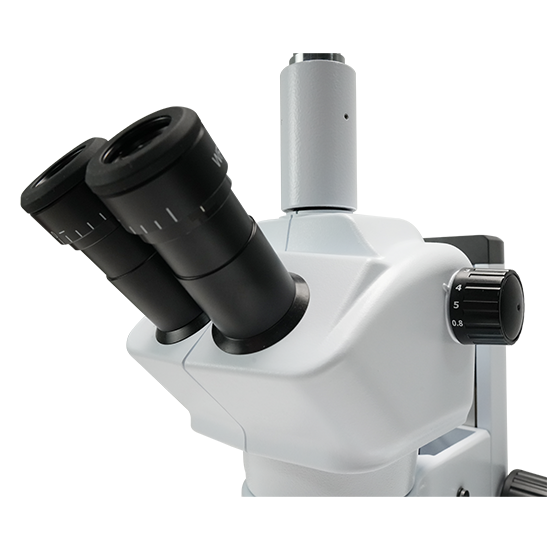

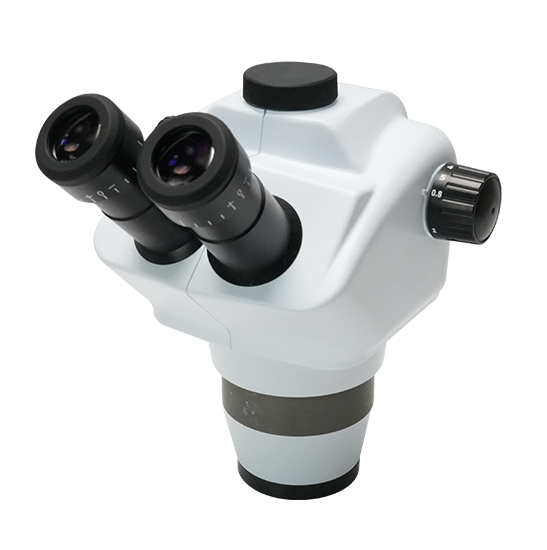

Trinocular viewing head, inclined at 45°, interpupillary distance 52-75mm |
● |
|
Eyepiece |
Extra wide field eyepiece EW10×/22mm |
● |
|
WF15×/Φ16mm |
○ |
|
|
WF20×/Φ12mm |
○ |
|
|
WF30×/Φ8mm |
○ |
|
|
Zoom Objective |
0.8×-5× |
● |
|
Zoom Ratio |
6.3:1 |
● |
|
Working Distance |
115mm |
● |
|
Auxiliary objective |
0.5×, WD=220mm |
○ |
|
0.7×, WD= 125mm |
○ |
|
|
2×, WD=45mm |
○ |
|
|
Stage Plate |
Glass insert plate, diameter 100mm |
● |
|
White & black round plate, diameter 100mm |
● |
|
|
Focusing Unit |
Coarse focus knob with tension adjustable, moving range 105mm |
● |
|
Illumination |

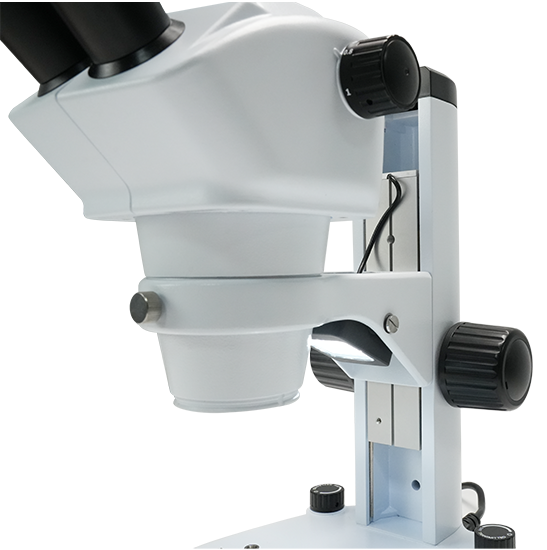

Incident illumination 100v-240v/ led |
● |
|

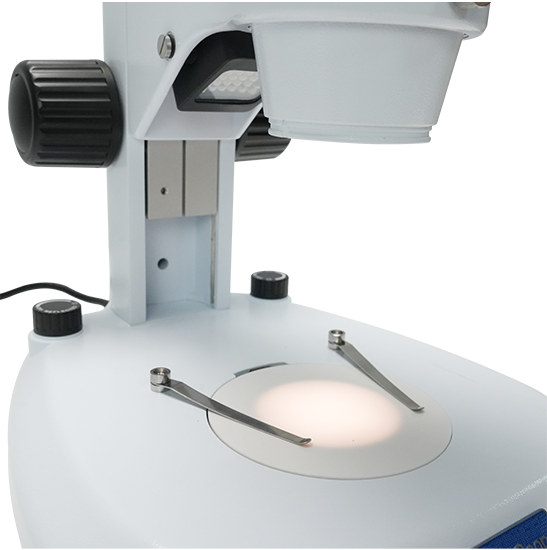

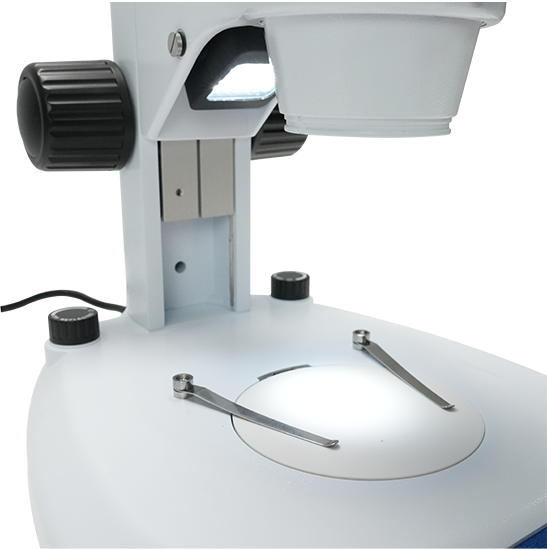

Transmitted illumination 100v-240v/ led |
● |
|
|
Attachment |
Photo attachment |
○ |
|
Video attachment |
● |
|
|
Eyepiece Adapter (Reduction Lens) |
BCN2A-0.5×, 0.5× eyepiece to C-mount microscope eyepiece adapter (adjustable) |
● |
Note: ● Standard Outfit, ○ Optional
|
Order Code |
Sensor & Size (mm) |
Pixel (μm) |
G Sensitivity Dark Signal |
FPS/Resolution ADC |
Binning |
Exposure |
|
BLM5-340 |
Sony IMX678(C) |
2.0×2.0 |
1364mv with 1/30s |
30@3840*2160 |
1×1 |
0.04~1000 |
|
Order Code |
Video Saving (FPS/Resolution) |
HDMI2.0 (FPS/Resolution) |
USB2.0 (FPS/Resolution) |
WiFi (FPS/Resolution) |
|
BLM5-340 |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |
System Diagram

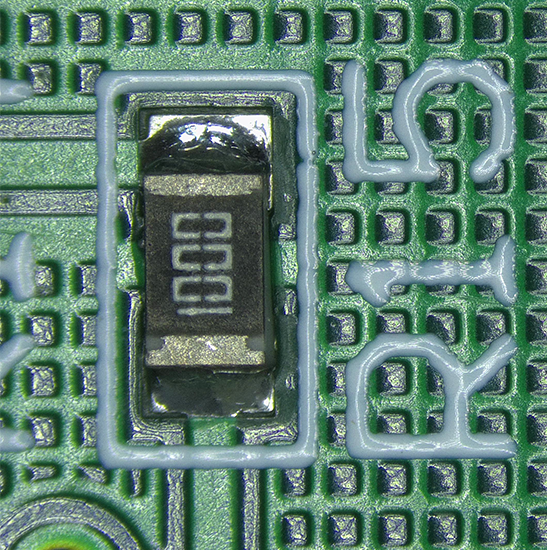

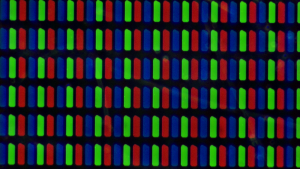

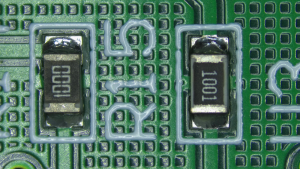

Sample Images
