BLM5-336 LCD Digital Zoom Stereo Microscope
Introduction
BLM5-336 LCD Digital Zoom Stereo Microscope has excellent and advanced optical performance, provides a plan and clear micro image, superior image is available even at the edge of viewing field.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 2-4 Weeks after Receiving Payment
Introduction
Introduction
BLM5-336 LCD Digital Zoom Stereo Microscope has excellent and advanced optical performance, provides a plan and clear micro image, superior image is available even at the edge of viewing field. New designed eyepiece with adjustable diopter, zoom objectives and varieties of auxiliary objectives, expand the magnification range to acquire clearer and brighter micro image. Brand new ergonomic design, long time use without fatigue, ensure easy and comfortable operation. BLM5-336 is widely applied to biological, medical scientific research, electronic industry online testing and other field, meeting the demand of high accuracy measurement.

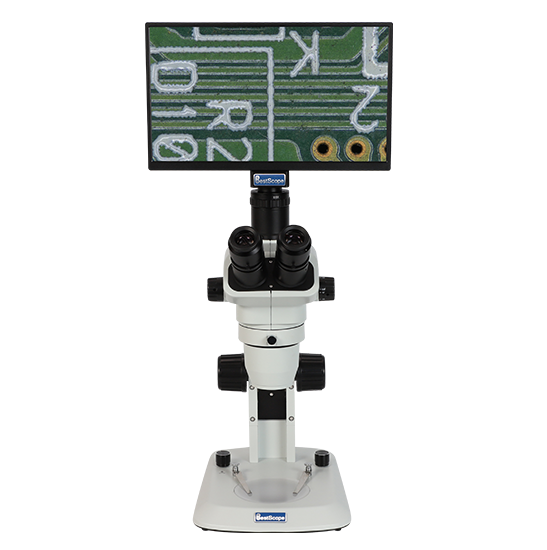

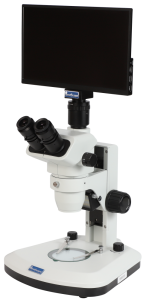

BLM5-336 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.

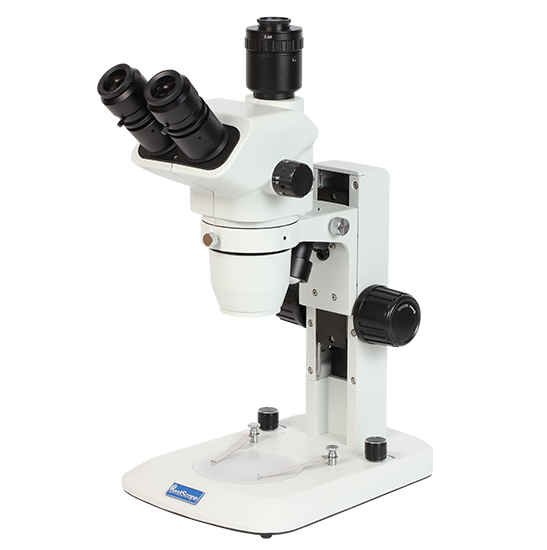

BLM5-336 is a combination of BS-3036T-BL12 and BLC-480B all-in-one camera.
Features

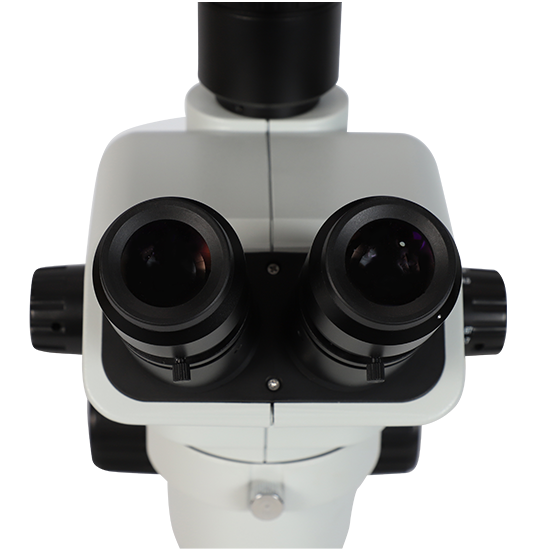

1.Eyepieces
High eyepoint, wide field eyepiece 10X/22mm (Standard). There are 15X/16mm, 20X/12mm and 30X/8mm for option to meet different requirements.

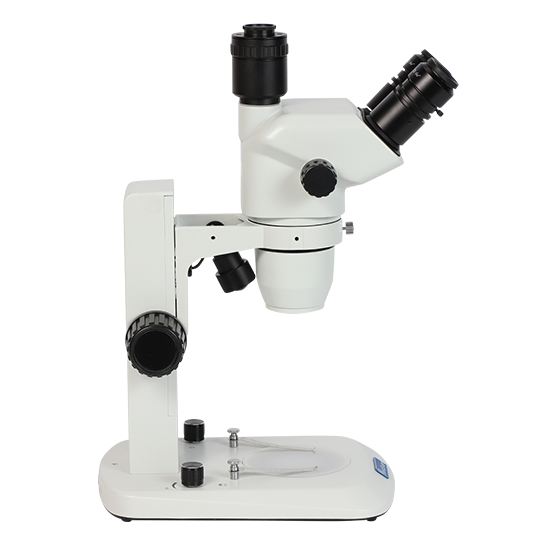

2.Viewing head

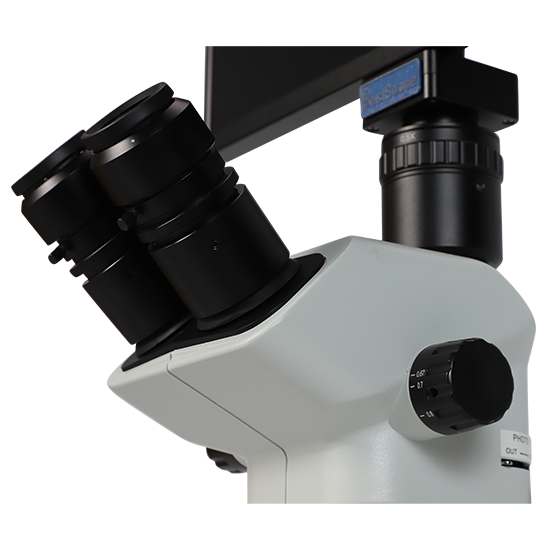

45° or 60° viewing head, according with ergonomics, is the best inclination for observation. To observe in comfortable position, long time and high efficiency working is available. Connect trinocular tube to camera system, image output, analysis and storage are available.

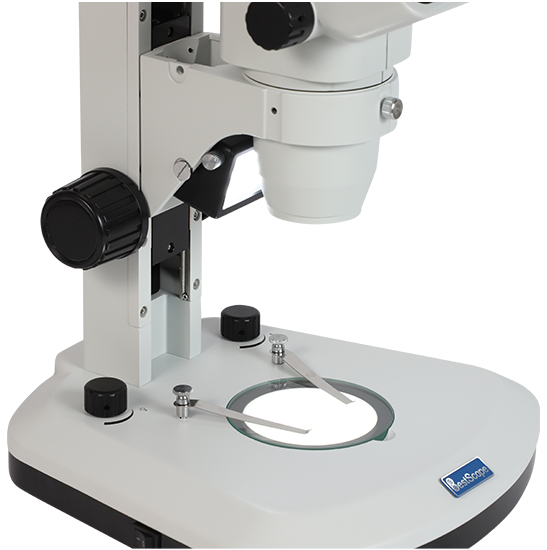

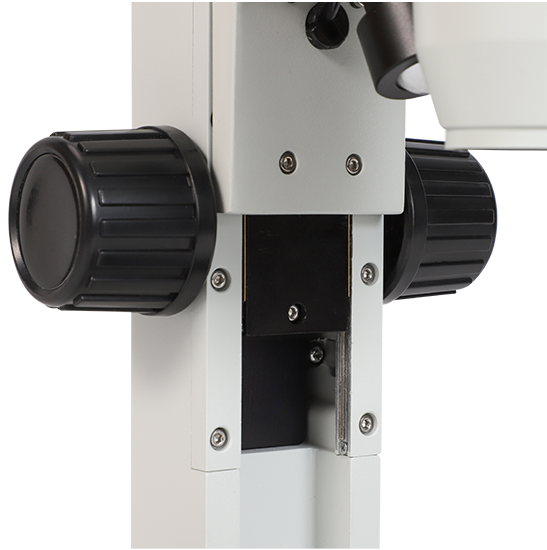

3.Focus system
Precision guide rail ensures flexible and accurate adjustment. Tension adjustable focusing knobs help flexible and comfortable operation. Both sides of zoom knobs are adjustable.

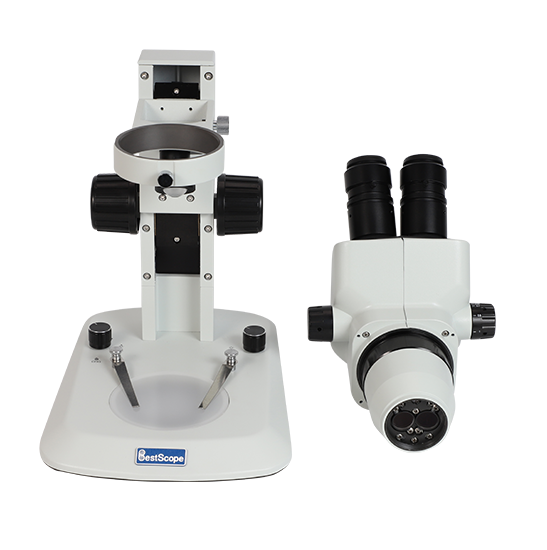

4.Multiple illumination and observation

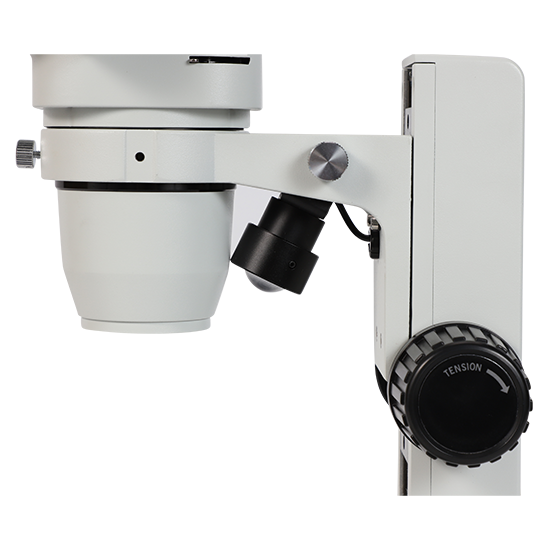

New integrated design, combine high bright LED with base & stand. Independent intensity adjustable switch for top and bottom illuminators, creates uniform, long-lasting and stable images under different magnification. Optional illuminators help you to meet different observation needs.
5.Different auxiliary objectives
Working distance and magnification can be accordingly adjusted by using different auxiliary objectives. There are 6 options: 0.3X, 0.4X 0.5X, 0.7X, 1.5X and 2X, to provide the best magnification system and suitable working distance for different needs.

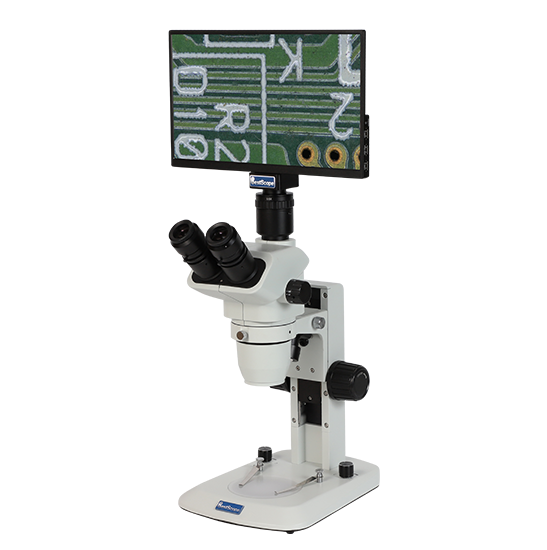

6.All-in-one camera
BLM5-336 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.
Application
Electronic industry inspection
BLM5-336 is widely used for industry inspection and analysis, such as for welding transistors spot, testing superficial phenomenon for different material crevices and stomatal corrosion. BLM5-336 can be assembled in machine equipment, used for manufacturing small precision components, monitor the producing process, test the components and assembly tools.

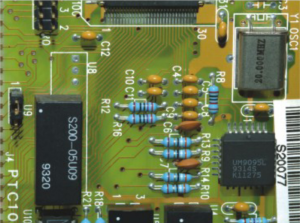

PCB

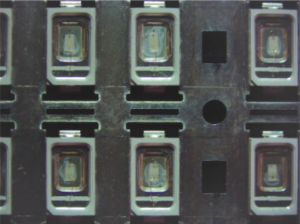

LED bracket
Biomedical research
BLM5-336 can be used for basic biology research of medical & science, and also suitable for teaching experiment course in schools and colleges. It is a useful assistant for studying zoology, botany, entomology, histology, anatomy, dermatology, etc.

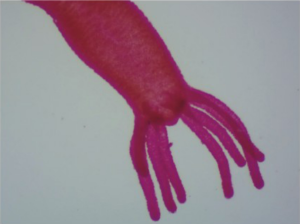

Hydra

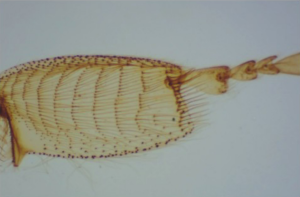

Bee leg
Specification
|
Item |
Specification |
BLM5-336 |
|
|
LCD Digital Camera |
BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. |
● |
|
|
Viewing Head |
45° inclined trinocular head, continuous zoom objective 0.67X-4.5X, working distance 100mm, interpupillary distance: 54-76mm, with built-in interlocking mechanism, fixed eyepiece tube |
● |
|
|
Eyepiece |
High eyepoint wide field eyepiece WF10TX/22mm, with adjustable diopter |
● |
|
|
High eyepoint wide field eyepiece WF10TX/22mm, with micrometer and adjustable diopter |
○ |
||
|
High eyepoint wide field eyepiece WF15TX/16mm, with adjustable diopter |
○ |
||
|
High eyepoint wide field eyepiece WF15TX/16mm, with micrometer and adjustable diopter |
○ |
||
|
High eyepoint wide field eyepiece WF20TX/12mm, with adjustable diopter |
○ |
||
|
High eyepoint wide field eyepiece WF20TX/12mm, with micrometer and adjustable diopter |
○ |
||
|
High eyepoint wide field eyepiece WF30TX/8mm, with adjustable diopter |
○ |
||
|
Objective |
Zoom objective |
0.67X-4.5X |
● |
|
0.8X-5X |
○ |
||
|
1X-6.7X |
○ |
||
|
Auxiliary objective |
0.3X, WD=287mm |
○ |
|
|
0.4X, WD=217mm |
○ |
||
|
0.5X, WD=177mm |
○ |
||
|
0.7X, WD=120mm |
○ |
||
|
1.5X, WD=47mm |
○ |
||
|
2X, WD=26mm |
○ |
||
|
Working Distance |
100mm |
● |
|
|
Focus Holder |
Focus holder BSZ-A2, tension adjustable, moving range 48.5mm, pillar hole size: Ф32mm, microscope mount size: Ф76mm, distance between the 2 holes: 150mm |
● |
|
|
Stand |
BSZ-BL12 Pillar stand and small fan-shaped base, pole diameter Φ32mm, pole height 260mm. Base size: 273*206mm, Φ100 black & white plate, with clips. Stand height 260mm, incident (1pc LED lamp, angel adjustable) and transmitted (14pcs LED lamps) LED illumination with separate control, color temperature 5700-6500K, brightness 20-22LM, 3pcs NiMH rechargeable battery. External wide range AC adapter, input voltage 100V-240V, output 5V 1A. Focusing arm tension adjustable, moving range 110mm. |
● |
|
|
Gem Clip |
Gem clip |
○ |
|
|
C-Mount |
0.35X C-mount adapter, adjustable focus |
○ |
|
|
0.5X C-mount adapter, adjustable focus |
● |
||
|
0.65X C-mount adapter, adjustable focus |
○ |
||
|
1X C-mount adapter, adjustable focus |
○ |
||
|
Electronic eyepiece connector |
○ |
||
|
Measurement Stage |
Precision measurement stage (0-25mm/150*150mm), with mechanical micrometer. Installation size 95mm |
○ |
|
|
Precision measurement stage (0-25mm/150*150mm), with digital micrometer. Installation size 95mm |
○ |
||
|
Other |
Dust proof mirror, Ф54mm, installation thread 48mm |
○ |
|
|
Ring lamp connector, Ф54mm, installation thread 48mm |
○ |
||
Note: ● Standard Outfit, ○ Optional
|
Order Code |
Sensor & Size (mm) |
Pixel (μm) |
G Sensitivity Dark Signal |
FPS/Resolution ADC |
Binning |
Exposure |
|
BLM5-336 |
Sony IMX678(C) |
2.0×2.0 |
1364mv with 1/30s |
30@3840*2160 |
1×1 |
0.04~1000 |
|
Order Code |
Video Saving (FPS/Resolution) |
HDMI2.0 (FPS/Resolution) |
USB2.0 (FPS/Resolution) |
WiFi (FPS/Resolution) |
|
BLM5-336 |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |
Optical Parameters
|
Objective |
Standard Objective/ W.D.100mm |
0.5× Auxiliary Objective/ W.D.165mm |
1.5× Auxiliary Objective/ W.D.45mm |
2× Auxiliary Objective/ W.D.30mm |
||||
|
|
Mag. |
FOV |
Mag. |
FOV |
Mag. |
FOV |
Mag. |
FOV |
|
WF10×/20mm |
7.0× |
28.6mm |
3.5× |
57.2mm |
10.5× |
19mm |
14.0× |
14.3mm |
|
|
45.0× |
4.4mm |
22.5× |
8.8mm |
67.5× |
2.9mm |
90.0× |
2.2mm |
|
WF15×/15mm |
10.5× |
21.4mm |
5.25× |
42.8mm |
15.75× |
14.3mm |
21.0× |
10.7mm |
|
|
67.5× |
3.3 mm |
33.75× |
6.6mm |
101.25× |
2.2mm |
135.0× |
1.67mm |
|
WF20×/10mm |
14.0× |
14.3mm |
7.0× |
28.6mm |
21.0× |
9.5mm |
28.0× |
7.1mm |
|
|
90.0× |
2.2mm |
45.0× |
4.4mm |
135.0× |
1.5mm |
180.0× |
1.1mm |

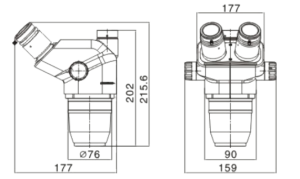

Dimension
Unit: mm
System Diagram
Accessories

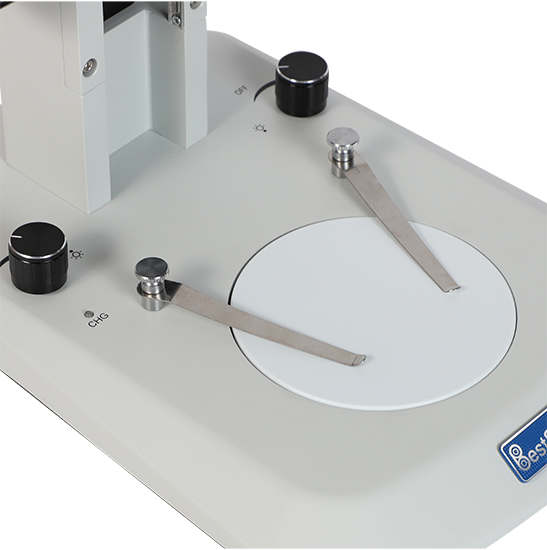

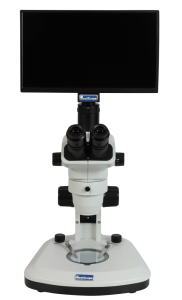

BLM5-336 with BSZ-BL1 stand
Stand & Base
|
Code |
Photo |
Description |
Focus Holder |
|
BSZ-B1 |
|
BSZ-B1 Pillar stand flat base, pole diameter Φ32mm, pole height 228mm. Base size: 200*255*22mm, Φ95 black & white plate, with clips. No illumination. |
BSZ-A1 |
|
BSZ-B2 |
|
BSZ-B2 Pillar stand transmitted base, with halogen lamp 12V 15W as lower light source, brightness adjustable. Pole diameter Φ32mm, pole height 228mm. Base size: 200*255mm, Φ95 glass plate, with clips. |
BSZ-A1 |
|
BSZ-B4 |
|
BSZ-B4 Pillar stand small fan-shaped base, pole diameter Φ32mm, pole height 260mm. Base size: 273*206mm, Φ100 black & white plate, with clips. No illumination. |
BSZ-A2 /BSZ-A3 /BSZ-A5 |
|
BSZ-B5 |
|
BSZ-B5 Pillar stand large flat base, pole diameter Φ32mm, pole height 260mm. Base size: 260*320mm. No illumination. |
BSZ-A1 /BSZ-A2 /BSZ-A3 /BSZ-A5 |
|
BSZ-B6 |
|
BSZ-B6 integrated stand and large fan-shaped base. Base size: 303*290mm, Φ100 black & white plate, with clips. With focus holder, focusing range 106mm. No illumination. |
With own focus holder |
|
BSZ-BL1 |
|
BSZ-BL1 Integrated stand and large fan-shaped base. Base size: 303*290mm, Φ100 glass plate, with clips. Stand height 245mm, incident (15pc LED lamp) and transmitted (70pcs LED lamps) LED illumination with separate control. Focusing arm tension adjustable, moving range 107mm, microscope mount size: Ф76mm. |
With own focus holder |
|
BSZ-BL3 |
|
BSZ-BL3 Pillar stand and large fan-shaped base, pole diameter Φ32mm, pole height 260mm. Base size: 303*290mm, Φ100 glass plate, with clips. Incident (15pc LED lamp) and transmitted (70pcs LED lamps) LED illumination with separate control. |
BSZ-A2 |
|
BSZ-BL6 |
|
BSZ-BL6 Pillar stand transmitted base, pole diameter Φ32mm, pole height 228mm. Base size: 255*200mm, Φ95 glass plate, with clips. Incident and transmitted (1pcs LED lamp, 5W) LED illumination with separate control. Low voltage safety, low power consumption, and low heat generation. |
With own focus holder |
|
BSZ-BL11 |
|
BSZ-BL11 Pillar stand and small fan-shaped base, pole diameter Φ32mm, pole height 260mm. Base size: 273*206mm, Φ100 black & white plate, with clips. Incident (1pc LED lamp, angel adjustable) and transmitted (14pcs LED lamps) LED illumination with separate control, color temperature 5700-6500K, brightness 20-22LM, with 3pcs NiMH rechargeable battery. External wide range AC adapter, input voltage 100V-240V, output 5V 1A. |
With own focus holder |
|
BSZ-BL12 |
|
BSZ-BL12 Pillar stand and small fan-shaped base, pole diameter Φ32mm, pole height 260mm. Base size: 273*206mm, Φ100 black & white plate, with clips. Stand height 260mm, incident (1pc LED lamp, angel adjustable) and transmitted (14pcs LED lamps) LED illumination with separate control, color temperature 5700-6500K, brightness 20-22LM, 3pcs NiMH rechargeable battery. External wide range AC adapter, input voltage 100V-240V, output 5V 1A. Focusing arm tension adjustable, moving range 110mm. |
With own focus holder |
|
BSZ-ST1 |
|
BSZ-ST1 single arm universal stand, can expand the operating range and observe objects in any direction and angle. Pole diameter: φ32mm, vertical column height: 380mm, focusing column height: 140mm, horizontal movement: 235mm. Base size: 210*260*20mm. No illumination. |
BSZ-A1 /BSZ-A2 /BSZ-A3 /BSZ-A5 |
|
BSZ-ST2 |
|
BSZ-ST2 double arm universal stand, can expand the operating range and observe objects in any direction and angle. Pole diameter: φ32mm, vertical column height: 380mm, focusing column height: 140mm, horizontal movement: 235mm. Base size: 210*260*20mm. No illumination. |
BSZ-A1 /BSZ-A2 /BSZ-A3 /BSZ-A5 |
