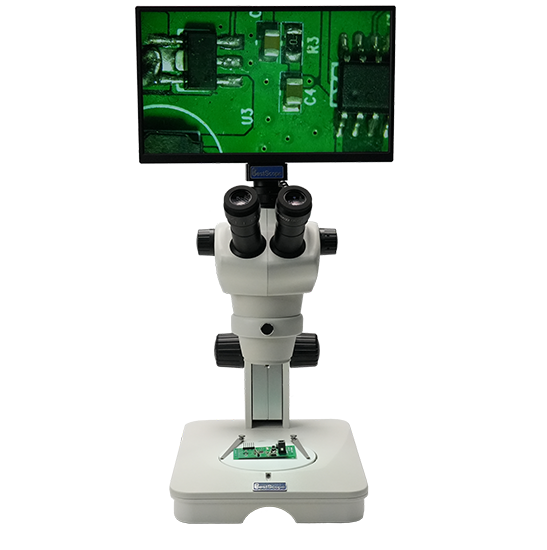

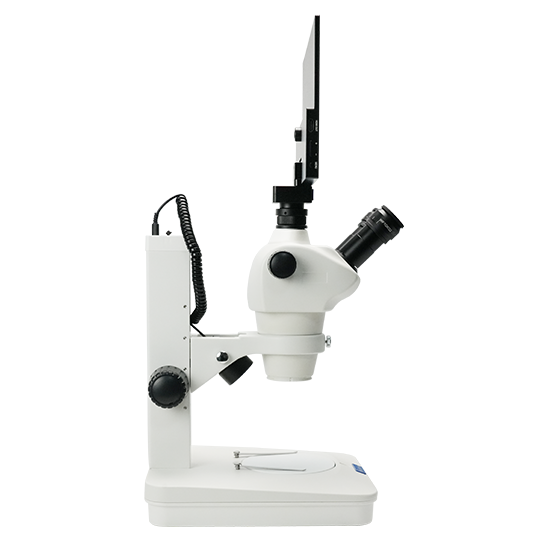

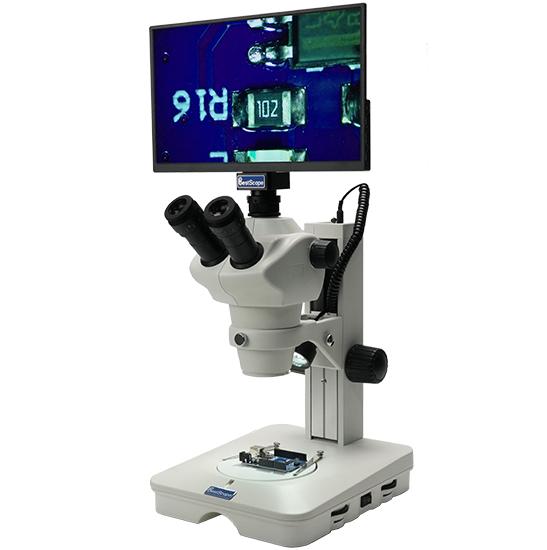

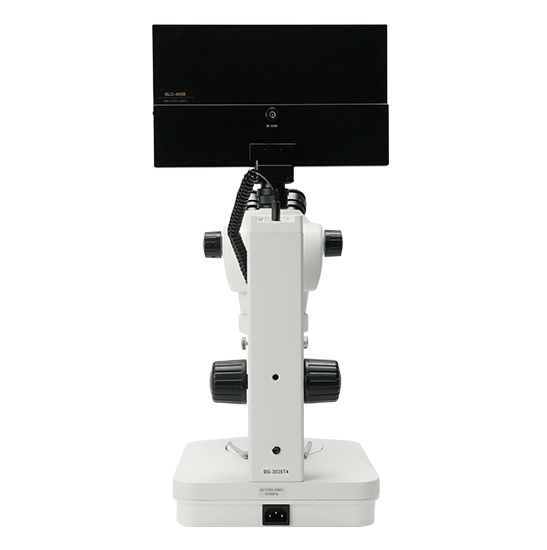

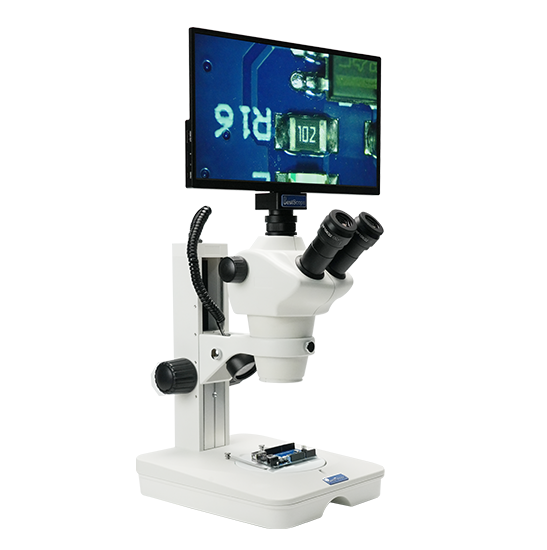

BLM5-335 LCD Digital Zoom Stereo Microscope
Introduction
BLM5-335 LCD Digital Zoom Stereo Microscope offers sharp 3D images with very competitive price. Optional auxiliary objectives, light source, stands and other accessories can fulfill different requirements.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 2-4 Weeks after Receiving Payment
Introduction
Introduction
BLM5-335 LCD Digital Zoom Stereo Microscope offers sharp 3D images with very competitive price. Optional auxiliary objectives, light source, stands and other accessories can fulfill different requirements.

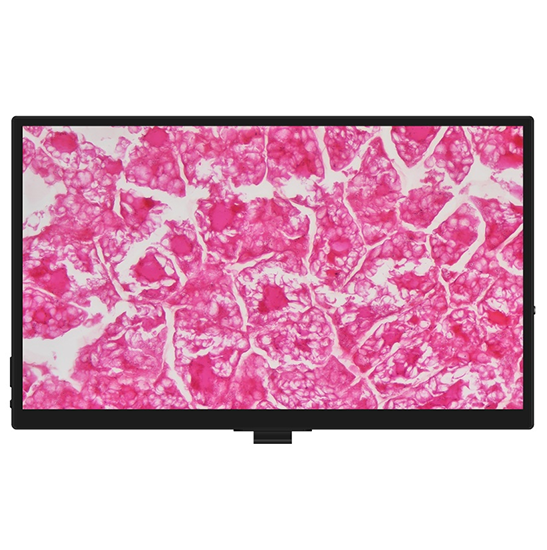

BLM5-335 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.
BLM5-335 is a combination of BS-3035T4 and BLC-480B all-in-one camera.
Features
1.Well-coated optical components, providing sharp and high contrast images and ensure large depth of field.
2.High quality optical system with zoom magnification 8×-50×, zoom ratio 1:6.3.
3.Various eyepieces, objectives and other accessories can meet different requirements.
4.BLM5-335adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.
Application
BLM5-335 LCD Digital Zoom Stereo Microscope is of great value in a variety of applications such as circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.
Specification
|
Item |
Specification |
BLM5-335 |
|
LCD Digital Camera |
BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. |
● |
|

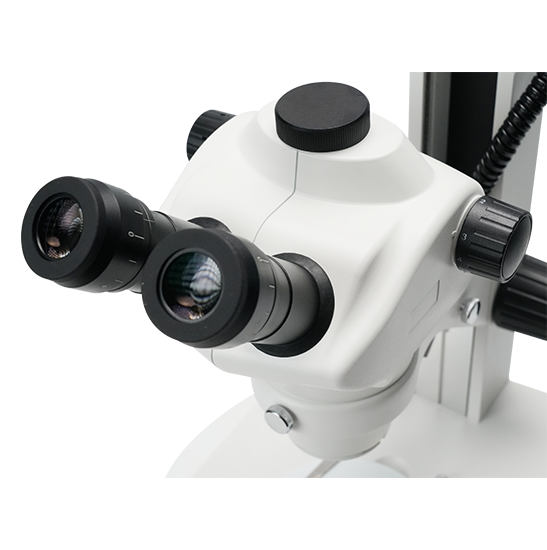

Viewing Head |
Trinocular Head, Inclined at 45°, Interpupillary Distance 52-75mm, 30:70 light distribution |
● |
|
Eyepiece |
Extra wide field eyepiece EW10×/22mm |
● |
|
Zoom Objective |
0.8×-5× |
● |
|
Zoom Ratio |
6.3:1 |
● |
|
Working Distance |
115mm |
● |
|
Auxiliary objective |
2×, WD 45mm |
○ |
|
Stage Plate |
Frosted Glass Plate, Diameter 100mm |
● |
|
White & Black round plate, Diameter 100mm |
● |
|
|

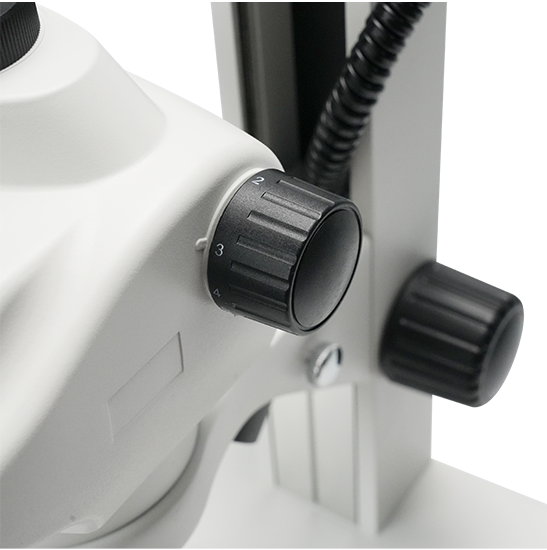

Focusing Unit |
Coarse Focus Knob with tension adjustable, Moving range 100mm |
● |
|
Stand |

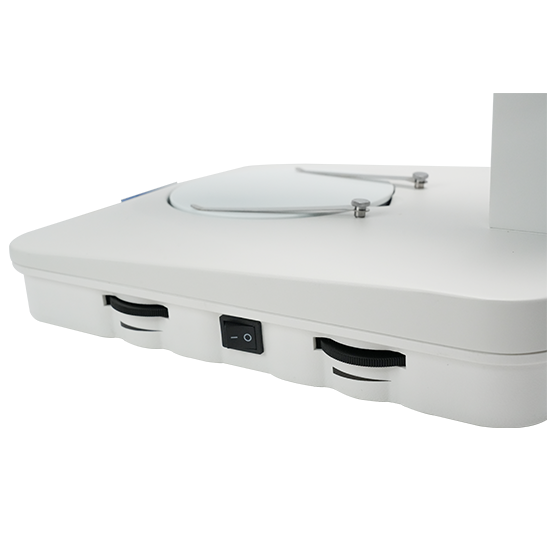

Stand with square base, with transmitted and Incident illumination |
● |
|

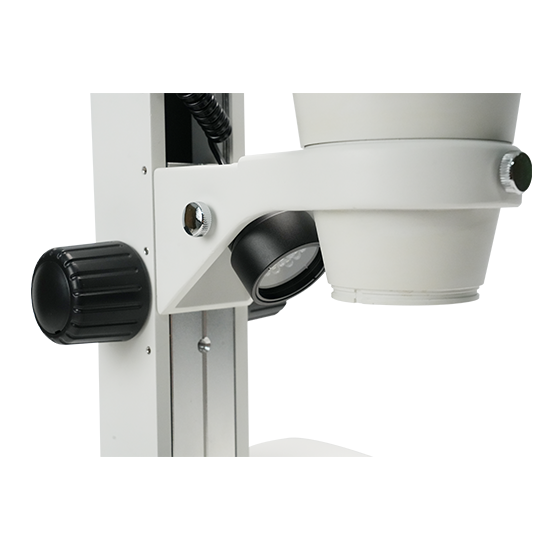

Illumination |
Incident Illumination 100V-240V/ LED |
● |
|
Transmitted Illumination 100V-240V/ LED |
● |
|
|
Attachment |
Photo Adapter (For Nikon, Canon, Olympus, Sony DSLR Cameras) |
○ |
|
0.5X C-mount Adapter |
● |
Note: ● Standard Outfit, ○ Optional
|
Order Code |
Sensor & Size (mm) |
Pixel (μm) |
G Sensitivity Dark Signal |
FPS/Resolution ADC |
Binning |
Exposure |
|
BLM5-335 |
Sony IMX678(C) |
2.0×2.0 |
1364mv with 1/30s |
30@3840*2160 |
1×1 |
0.04~1000 |
|
Order Code |
Video Saving (FPS/Resolution) |
HDMI2.0 (FPS/Resolution) |
USB2.0 (FPS/Resolution) |
WiFi (FPS/Resolution) |
|
BLM5-335 |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |

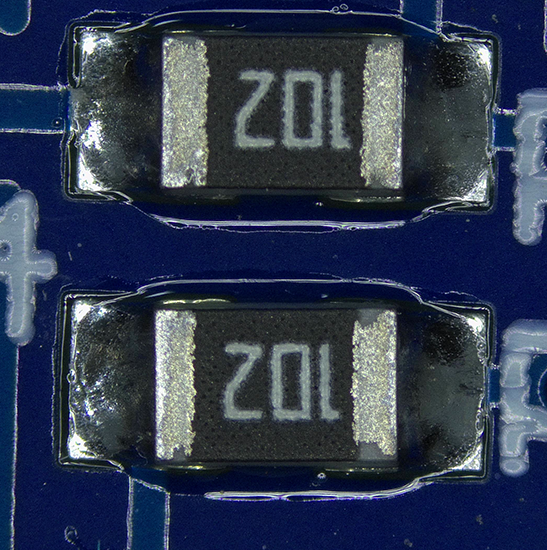

Sample Image
