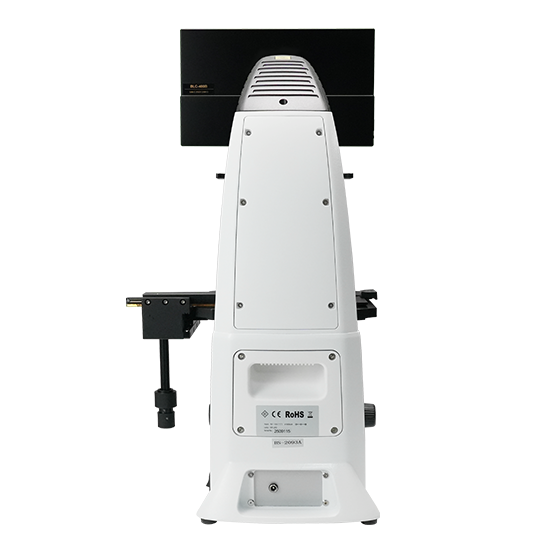

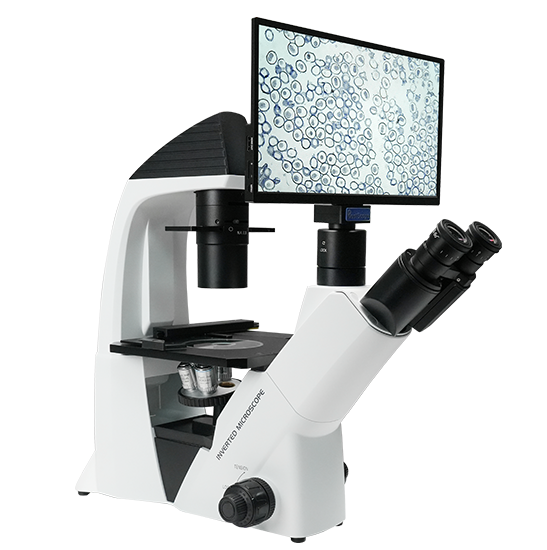

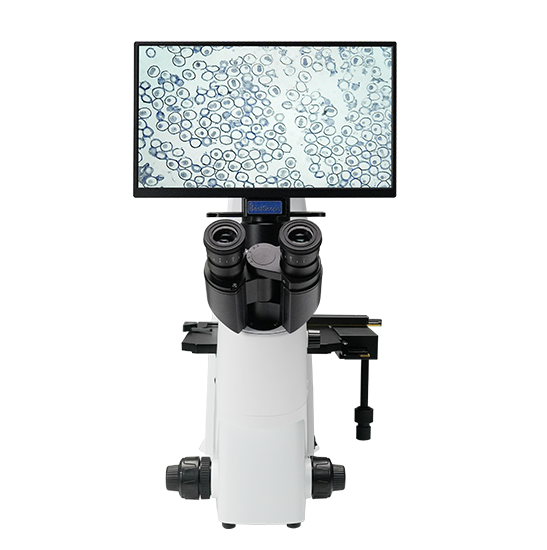

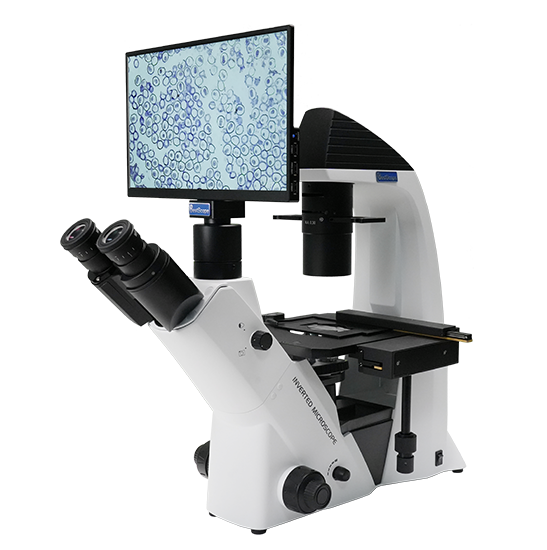

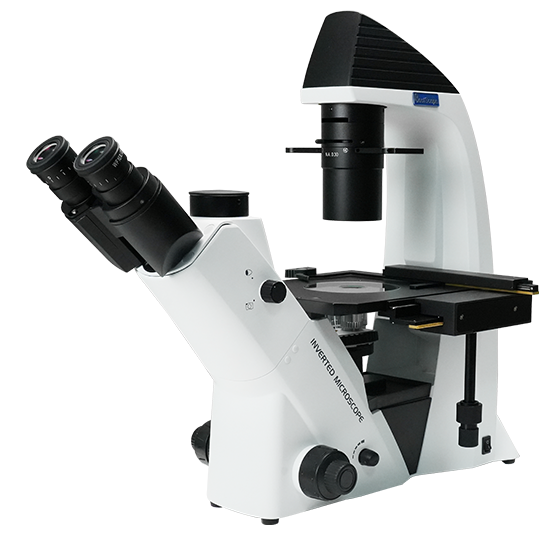

BLM5-293A LCD Digital Inverted Biological Microscope

Introduction

Details

Model：BLM5-293A

Eyepiece:PL10X/22mm

Sensor Size:1/1.8"

Objective: 4×, 10×, 20×, 40×

Condenser:N.A. 0.3

Nosepiece:Quintuple

Enquiry now

Leave a message

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-4 Weeks after Receiving Payment

Introduction

BLM5-293A LCD Digital Inverted Biological Microscope is a high-level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. With an innovative infinite optical system and ergonomic design, it has excellent optical performance and easy to operate features. This inverted biological microscope makes your work enjoyable. Digital cameras can be added to the trinocular head to take photos, videos and make measurement.

BLM5-293A adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.

BLM5-293A is a combination of BS-2093A and BLC-480B all-in-one camera.

Features

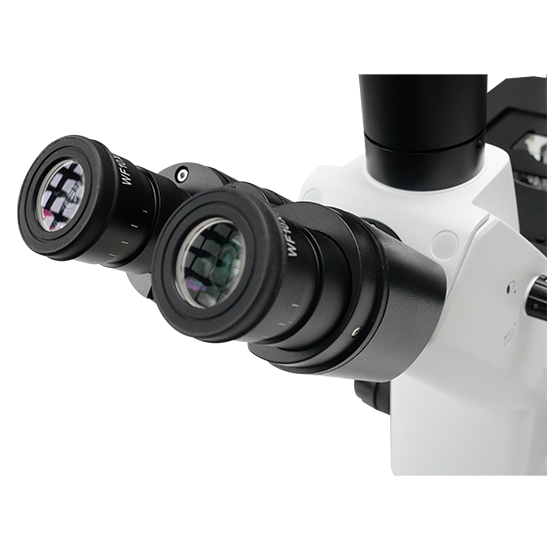

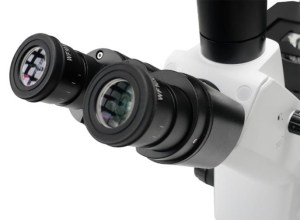

1.Wide field of view

Excellent infinite optical system, Wide field eyepiece, view field up to Φ22mm, more comfortable for observation.

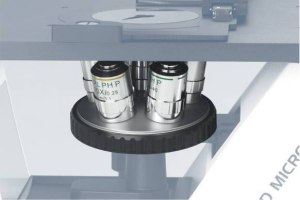

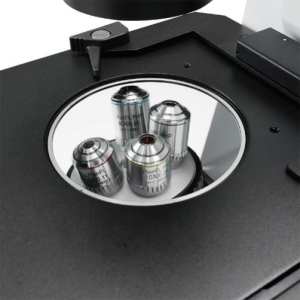

2.Better nosepiece

More objectives can be installed on the large diameter quintuple nosepiece, easier to change objective.

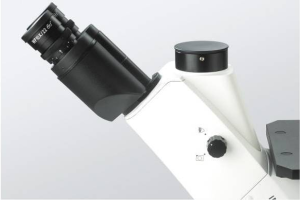

3.Viewing head with two splitting ratios

Light distribution (both): 100:0 (100% for eyepiece) or 80:20 (80% for trinocular head and 20% for eyepiece).

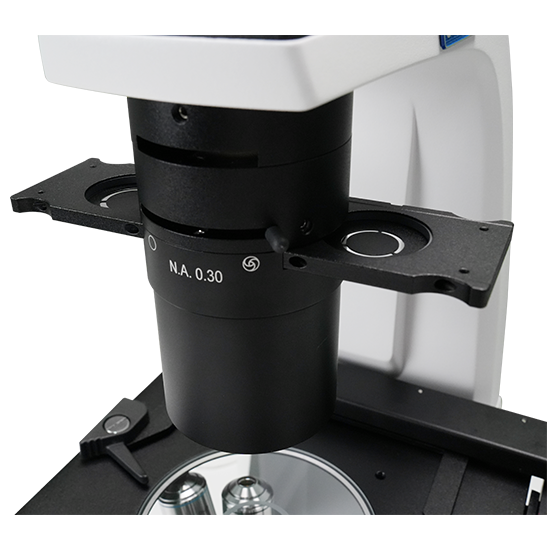

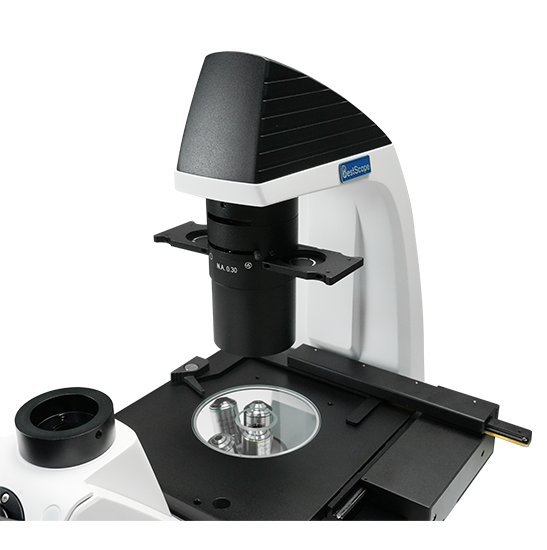

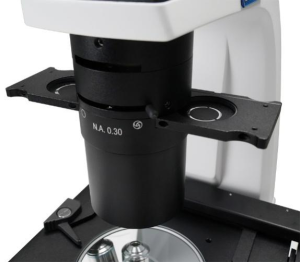

4.Long working distance condenser

Long working distance condenser, N.A. 0.30. Working distance: 72mm (with condenser).

Working distance: 195mm (without condenser), available for extra high culture dishes.

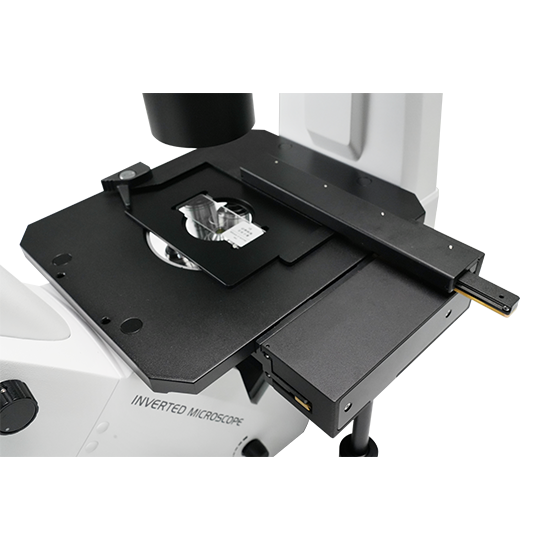

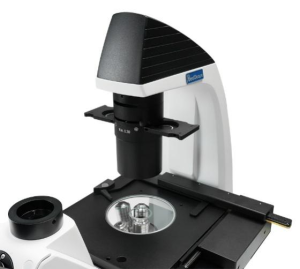

5.Large size stage

Large stage is convenient for research. Size: 210mm(X)*240mm(Y)mm, Moving range: 128mm(X)*80mm(Y).

Mechanical stage available for 96 holes plate.

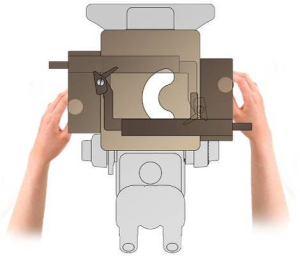

6.Convenient for both hands

The knob of X-Y mechanical stage can be changed by left or right.

7.LED Epi fluorescent unit

Newly designed BFL2LED (5W LED lamp, B/G fluorescent filter) & BFL3LED (5W LED lamp, UV/B/G fluorescent filter) LED fluorescent unit can provide higher intensity and get clear images.

All-in-one camera

Application

BLM5-293A LCD Digital Inverted Biological Microscope is used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.

Specification

Item	Specification		BLM5-293A
Optical System	Infinite Optical System		●
LCD Digital Camera	BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (38402160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 19201080.		●
Viewing Head	Inclined 45°trinocular tube, interpupillary distance: 48-76mm, splitting ratio: eyepiece: trinocular=100:0 or 20:80. Eyepiece tube diameter: 30mm		●
Eyepiece	Wide field plan eyepiece PL10X/22mm, with adjustable diopter		●
	Wide field eyepiece WF15×/ 16mm		○
	Wide field eyepiece WF20×/ 12mm		○
Objective	Long Working Distance Infinity Plan Achromatic Objective (L Plan FL)	2X/NA=0.06, WD=7.2mm	○
		4X/NA=0.11, WD=12.1mm	●
		10X/NA=0.25, WD=10.3mm	○
		20X/NA=0.45, WD=5.8mm	○
		40X/NA=0.65, WD=5.1mm	○
	Long Working Distance Infinity Plan Achromatic Phase Contrast Objective (L Plan FL PHP)	4X/NA=0.10, WD=9.2mm	○
		10X/NA=0.25, WD=10.3mm	●
		20X/NA=0.45, WD=5.8mm	●
		40X/NA=0.65, WD=5.1mm	●
	LWD Infinity Plan Fluor Objectives (L Plan Fluor)	10X/NA=0.3, WD=14mm	○
		20X/NA=0.45, WD=6.6mm	○
		40X/NA=0.65, WD=3.9mm	○
Nosepiece	Quintuple nosepiece		●
Condenser	Long working distance condenser, N.A. 0.3. Working distance: 72mm (with condenser), 195mm (without condenser)		●
Centering Telescope	Centering telescope (Φ30mm)		●
Phase Annulus	4X phase annulus plate		○
	10X phase annulus plate		●
	20X/40X phase annulus plate		●
Stage	Stage size: 210mm(X)*241mm(Y). Round size: Φ110mm. Coaxial coarse and fine adjustment, fine division 0.002mm, moving range 10mm		●
	Attached mechanical stage, available for 96 holes plate. X-Y coaxial control, moving range: 128mm(X)*80mm(Y)		●
	Φ65mm culture dish holder +Φ35mm culture dish holder		○
	Φ54mm culture dish holder		●
	Holder for blood cell counter		○
	Universal holder		○

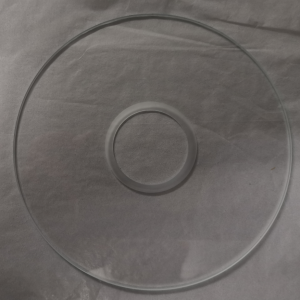

	Glass holder		○
Focusing	Coaxial coarse and fine adjustment, fine division 0.002mm, moving range 10mm		●
Koehler Illumination	12V/30W halogen lamp, input voltage: 100V-240V		●
	5W LED lamp, input voltage: 100V-240V		○
Filter	Blue filter (Φ34mm)		●
	Green filter (Φ34mm)		●
	Amber/Gray filter (Φ34mm)		○
C-mount	0.35X C-mount adapter, adjustable focus		○
	0.5X C-mount adapter, adjustable focus		●
	0.65X C-mount adapter, adjustable focus		○
	1X C-mount adapter, adjustable focus		○
	Trinocular digital eyepiece interface		○
Epi-Fluorescent Attachment	Two channel fluorescence module: one 100W mercury lamp and B/G filters		○
	BFL2LED Two channel fluorescence module: 5W LED and B/G filters. Synchronize LED bulbs with color filters. The fluorescence brightness is more than twice that of four channel LED fluorescence module.		○
	BFL3LED Three channel fluorescence module: 5W LED and UV/B/G filters. Synchronize LED bulbs with color filters. The fluorescence brightness is more than twice that of four channel LED fluorescence module.		○
	Four channel fluorescence module: one 100W mercury lamp and V/UV/B/G filters		○
	Four channel fluorescence module: 5W LED and V/UV/B/G filters		○

Note: ● Standard Outfit, ○ Optional

Order Code

Sensor & Size (mm)

Pixel (μm)

G Sensitivity

Dark Signal

FPS/Resolution

ADC

Binning

Exposure

BLM5-293A

Sony IMX678(C)
1/1.8″(7.68×4.32)

2.0×2.0

1364mv with 1/30s
0.15mv with 1/30s

30@3840*2160

1×1

0.04~1000

Order Code	Video Saving (FPS/Resolution)	HDMI2.0 (FPS/Resolution)	USB2.0 (FPS/Resolution)	WiFi (FPS/Resolution)
BLM5-293A	30@3840*2160	30@3840*2160	30@3840*2160	30@3840*2160

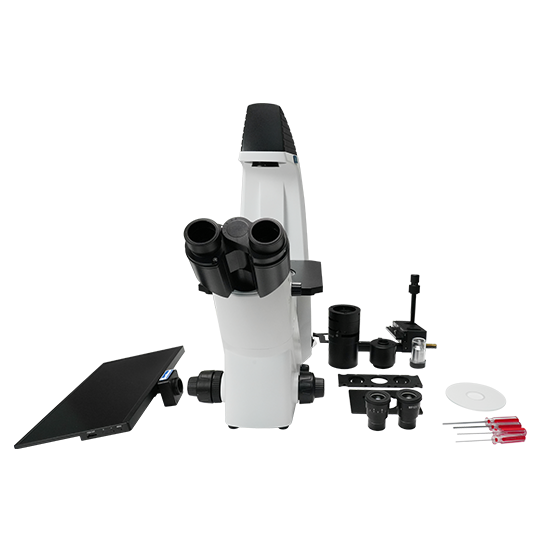

Accessories

1.Culture Dish Holder

Φ65mm

Φ54mm

Φ35mm

blood cell counter holder

2.Universal holder and glass holder

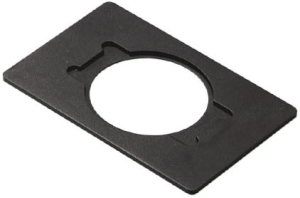

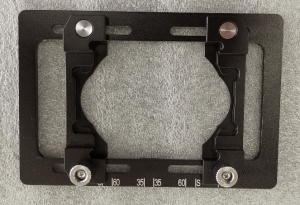

Universal Holder

Glass Holder

3.Fluorescent Attachment

Four channel fluorescence module: 5W LED and V/UV/B/G filters

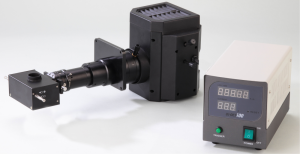

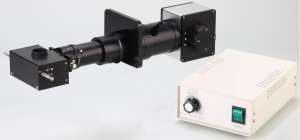

Mercury fluorescent attachment

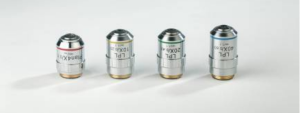

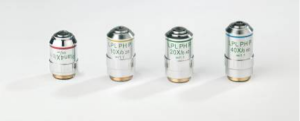

4.Objectives

Objective Parameter List (Cover-glass thickness1.1mm)

	Objectives	N.A.	Working distance(mm)
LWD Infinity Plan Objectives	Plan FL 2X	0.06	7.2
	L Plan FL 4X	0.11	12.1
	L Plan FL 10X	0.25	10.3
	L Plan FL 20X	0.45	5.8
	L Plan FL 40X	0.65	5.1
	L Plan FL 2X	0.06	7.2
LWD Infinity Plan Phase Contrast Objectives	L Plan FL PHP 4X (Both for Bright Field & Phase Contrast)	0.10	9.2
	L Plan FL PHP 10X (Both for Bright Field & Phase Contrast)	0.25	10.3
	L Plan FL PHP 20X (Both for Bright Field & Phase Contrast)	0.45	5.8
	L Plan FL PHP 40X (Both for Bright Field & Phase Contrast)	0.65	5.1
LWD Infinity Plan Fluor Objectives	L Plan Fluor 10x	0.30	14.0
	L Plan Fluor 20x	0.45	6.6
	L Plan Fluor 40x	0.65	3.9
