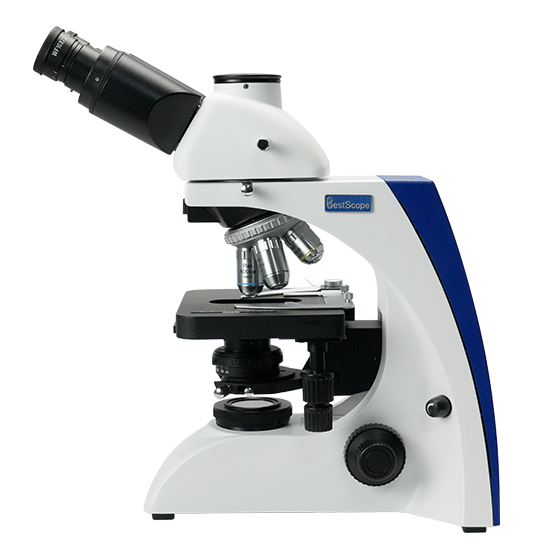

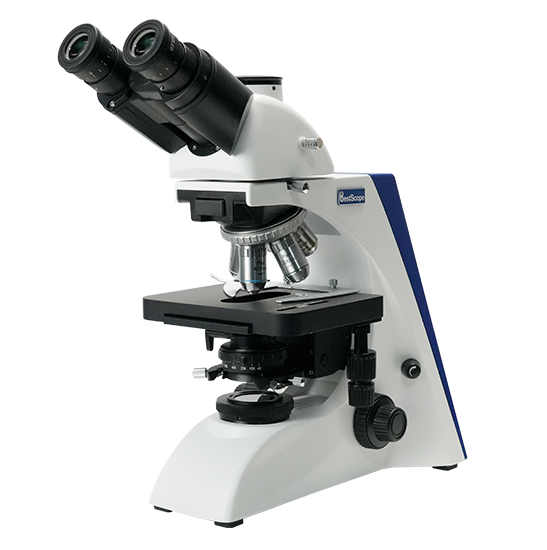

BLM5-263 LCD Digital Biological Microscope

Introduction

BLM5-263 LCD Digital Biological Microscope is a high level microscope which is specially designed for college education, medical and laboratory study.

Details

Model：BLM5-263

Eyepiece:WF10X/22mm

Koehler Illumination:12V/30W Halogen lamp

Objective: 4×, 10×, 20×, 40×, 100×

Condenser:NA 0.9/0.13

Nosepiece:Backward quintuple

Enquiry now

Leave a message

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-4 Weeks after Receiving Payment

Introduction

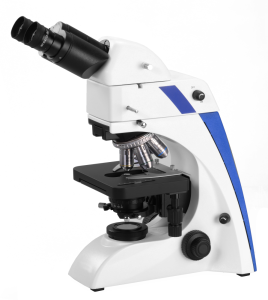

BLM5-263 LCD Digital Biological Microscope is a high level microscope which is specially designed for college education, medical and laboratory study. It adopts an Infinite optical system, beautiful structure and ergonomic design. With an innovative optical and structure design, excellent optical performance and easy to operate system, these biological microscopes make your works enjoyable.

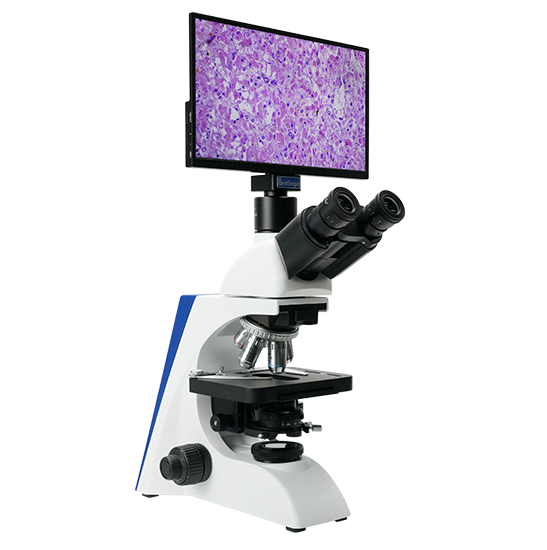

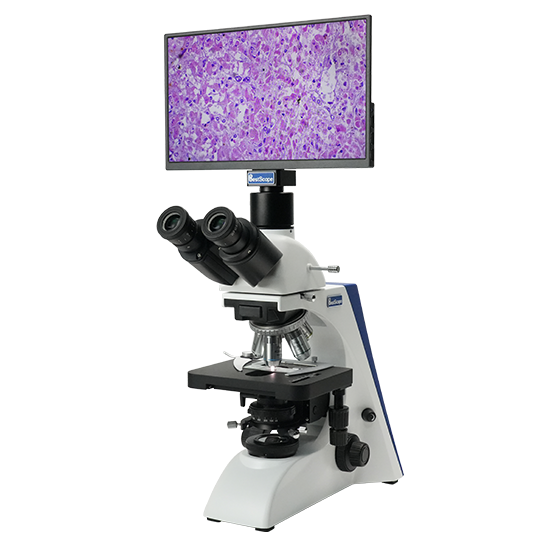

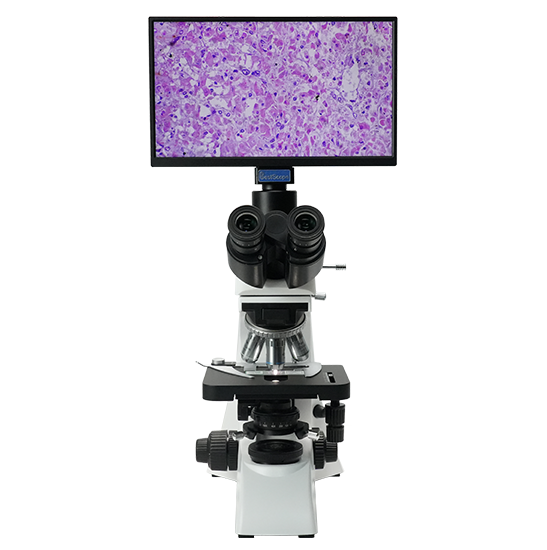

BLM5-263 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.

BLM5-263 is a combination of BS-2063T and BLC-480B all-in-one camera.

Features

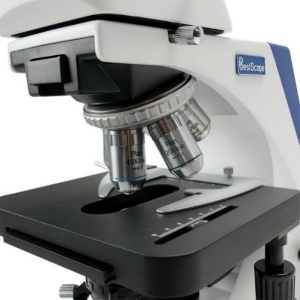

1.Excellent infinite optical system

Excellent infinite optical system with high resolution and perfect definition.

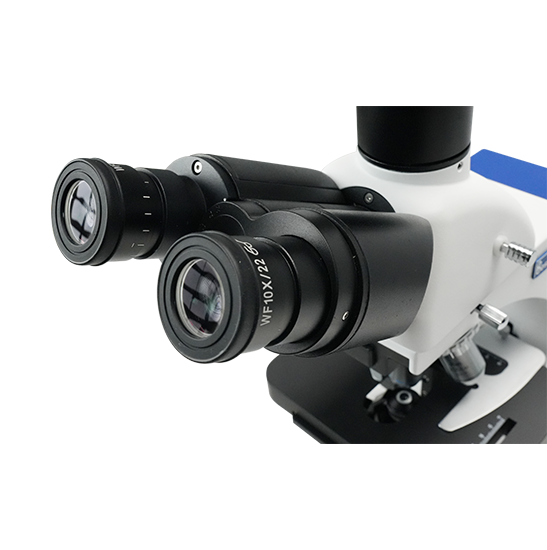

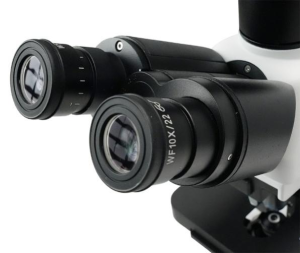

2.Wide field eyepiece

Wide field eyepiece, view field up to Φ22mm, more comfortable for observation.

3.Viewing head

Trinocular head with light distribution 100:0 (100% for eyepiece) and 80:20(80% for trinocular head and 20% for eyepiece).

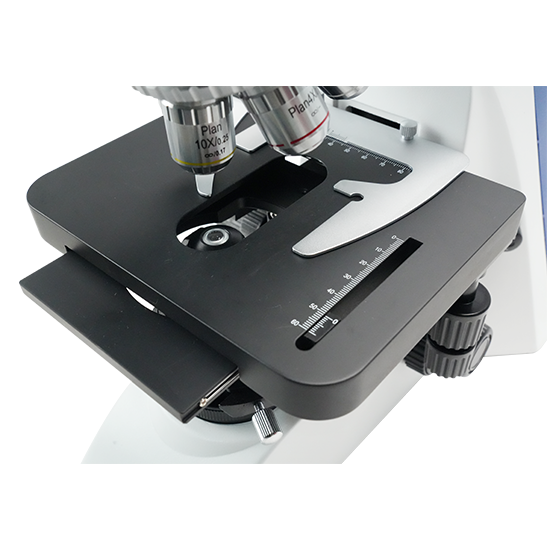

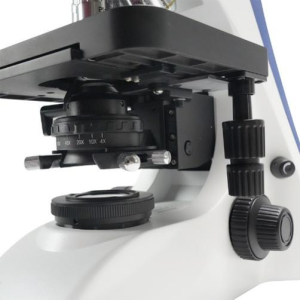

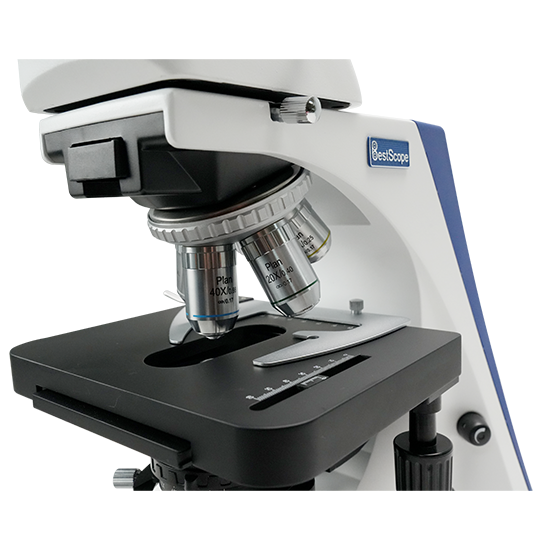

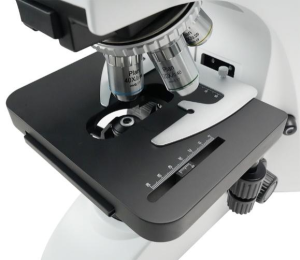

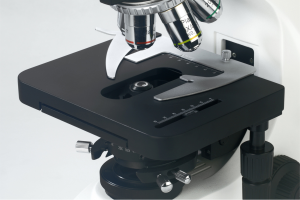

4.Rackless stage

Rackless (integrated) stage is safer than traditional stage.v

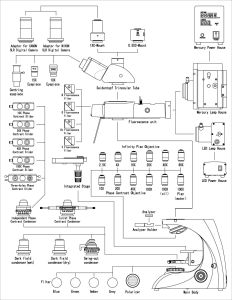

5.Various accessories for upgrading.

100X water objective is available for convenient viewing.

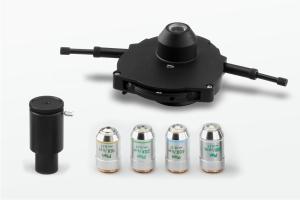

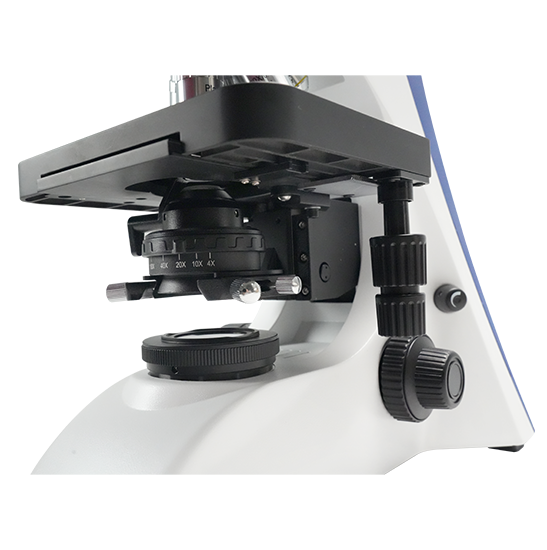

Quintuple turret phase contrast unit with 10X/20X/40X/100X infinite plan phase contrast objective for phase contrast and bright field observation.

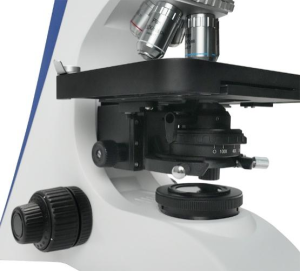

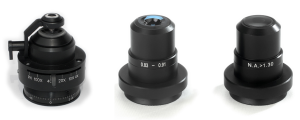

N.A.0.9/0.13 Swing-out Condenser

Dark field condenser (dry) available to 4X-40X Objective

Dark field condenser (oil) available to 100X Objective

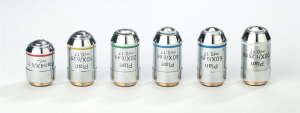

Infinite Plan Objectives

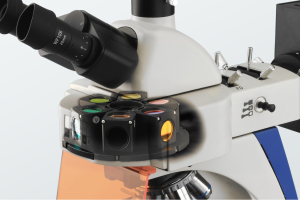

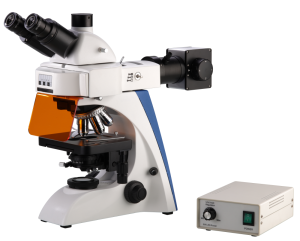

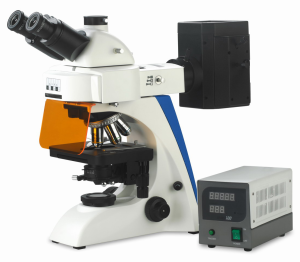

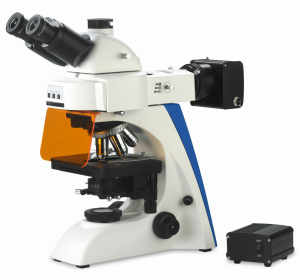

Mercury and LED fluorescent attachment with six-holes disk fluorescence unit, more fluorescence filters can be supplied.

BS-2063FT

BS-2063FT(LED) with B/G Filter

BS-2063FT(LED) with UV/V/B/G Filter

BS-2063F2B(LED)

BS-2063F2T(LED)

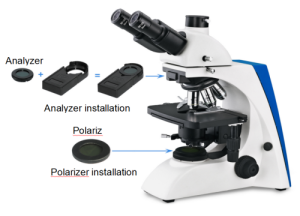

Simple polarizing unit with polarizer and analyzer.

6.All-in-one camera

Application

BLM5-263 LCD Digital Biological Microscope is ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary institutes, such as hospitals, clinics, academic laboratories, colleges and universities.

Specification

Item	Specification	BLM5-263
Optical System	Color Corrected Infinite Optical System	●
LCD Digital Camera	BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (38402160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 19201080.	●
Viewing Head	Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48-76mm, splitting ratio: eyepiece: trinocular=100:0 or 20:80	●
Eyepiece	Wide field eyepiece WF10X/22mm, diopter adjustable, tube diameter: 30mm	●
	WF15×/16mm, diopter adjustable	○
	WF10×/22mm with 0.1mm eyepiece micrometer	○
Infinite Plan Achromatic Objective	2X/ NA 0.06	○
	4X/ NA 0.10, WD=12.10mm	●
	10X/ NA 0.25, WD4.64mm	●
	20X/ NA 0.40 (S), WD=2.41mm	●
	40X/ NA 0.66 (S), WD=0.65mm	●
	60X/ NA 0.80 (S), WD=0.33mm	○
	(Oil) 100X/ NA 1.25 (S), WD=0.12mm	●
	(Water) 100X/ NA 1.15 (S), WD=0.19mm	○
Infinity Plan Semi-Apochromatic Fluorescent Objectives	4X/NA=0.16, WD=17.15mm	○
	10X/NA=0.30, WD=7.68mm	○
	20X/NA=0.50, WD=1.96mm	○
	40X/NA=0.75, WD=0.78mm	○
	40X/NA=0.75, WD=0.78mm (for TB, no correction of slide cover)	○
	(Oil) 100X/NA=1.3, WD=0.15mm	○
Nosepiece	Backward quintuple nosepiece	●
Stage	Rackless (integrated) stage, size: 182mm140mm, travel range: 77mm52mm, with two slide holders	●
Stage	Stage size: 175mm145mm. Travel: 78mm55mm, scale: 0.1mm. With two slide holders	○
Condenser	Swing-out condenser NA 0.9/0.13, with iris diaphragm	●
	Dark field condenser, dry, apply to 4X-40X objective	○
	Dark field condenser, wet, apply to 100X objective	○
Focusing	Coaxial coarse and fine focusing knob, coarse focusing travel range: 25mm, coarse stroke 42.4mm/rotation, fine stroke 0.2mm/rotation, fine division: 2µm	●
Field Diaphragm	Field diaphragm	●
Koehler Illumination	12V/30W Halogen lamp	●
Koehler Illumination	5W LED lamp	○
Polarizing Unit	Analyzer and polarizer	○
Phase Contrast Unit	Quintuple hole turret unit with 10X/20X/40X/100X phase contrast objective	○
Phase Contrast Unit	Independent slot with 10X/20X/40X/100X phase contrast objective	○
Fluorescent Attachment	B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G and another filters), 100W mercury lamp.	○
	UV/V/B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G and another filters), 100W mercury lamp.	○
	B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G), 5W-LED fluorescence lamp.	○
	UV/V/B/G Epi fluorescence unit (six-hole disc media which can be fixed with UV/V/B/G), 5W-LED fluorescence lamp.	○
	B or G fluorescence unit, 5W-LED fluorescence lamp.	○
	Auramine long pass fluorescence unit, with 5W LED fluorescence lamp	○
	B/G fluorescence unit, 5W-LED fluorescence lamp.	○
Video Adapter	0.35X C-mount adapter, adjustable focus	○
	0.5X C-mount adapter, adjustable focus	●
	0.75X C-mount adapter, adjustable focus	○
	1X C-mount adapter, adjustable focus	○
	Trinocular digital eyepiece interface	○
Photo Adapter	Used for CANON／NIKON／OLYMPUS/ SONY DLSR cameras	○
Filter	Blue filter (Φ45)	●
	Green filter (Φ45)	○
	Amber filter (Φ45)	○
Power Supply	Wide voltage input: 100V～240V	●
Packing	1 carton/set, Packing Size: 565mm × 310mm × 410mm, Gross Weight: 12 kgs, Net Weight: 10 kgs	●
