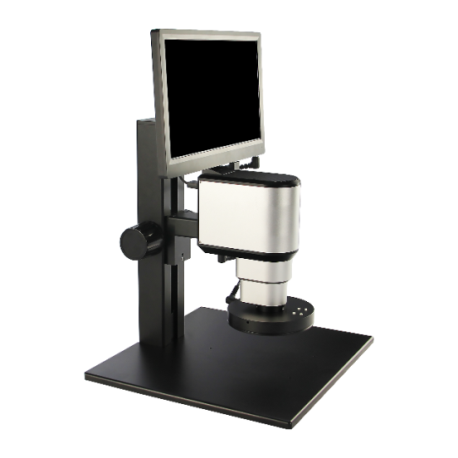

BLM1-480C Motor Zoom Smart Measuring Video Microscope
Introduction
BLM1-480C Motor Zoom Smart Measuring Video Microscope is widely used in industrial inspection, auto system, electronic communication, semiconductor, biomedical and scientific research, etc.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
BLM1-480C Motor Zoom Smart Measuring Video Microscope is widely used in industrial inspection, auto system, electronic communication, semiconductor, biomedical and scientific research, etc.
Features
1.High precision images
Apochromatic optical system. Ultra 4K image. 3840*2160 4K ultra high resolution, 60fps, no delay. Supports HDMI and PC output at the same time.
2.Zoom ratio
0.3-3.0X standard zoom body, 1:10 large zoom ratio. Zoom modes: motor zoom and manual knob zoom. Smart cruise scanning with accurate magnification.
3.Integrated design
Integrated body design with one switch and one power supply, the operation is convenient.
4.Measurement function
Magnification shows in real-time, and measuring in real-time. Support box selection for faster and higher accuracy measurement. Support automatic edge finding for more accurate measurement.
Operation windows
Main Function
Magnification display
Lens and total imaging magnification show in real-time.
Motor setting
Ten pre-setting positions cruise scanning.
Reticle or scale
The users can add multiple auxiliary lines as needed, with or without scales.
Auxiliary tools
Capture, video, save pictures and videos to USB disk or PC, automatic exposure, automatic white balance, camera setting, etc.
Measuring tools
Support 2D measuring, box selected area measurement, automatic edge finding. Precision can reach micron.
Advanced tools
The users can choose different advanced measuring tools to meet special needs.
Product Details
Integrated body design with one switch and only one power supply, solving the problem of too much cables of traditional video microscopes. Ergonomics design. Accompany with 11.6-inch 1080P monitor, angle adjustable.
Specification
|
Item |
Specification |
BLM1-480A |
BLM1-480B |
BLM1-480C |
|
Optical System |
Apochromatic optical system |
● |
● |
● |
|
Zoom Lens |
Optical zoom magnification: 0.3X-3.0X |
● |
● |
● |
|
Zoom mode |
Motor zoom & manual knob zoom |
● |
● |
● |
|
Zoom ratio |
1:10 |
● |
● |
● |
|
Built-in Camera |
Built-in camera with HDMI output and Network interface, two USB port for mouse and USB disk. Resolution: 3840*2160, frame: 60fps, senser: 1/1.8”, pixel size: 2.0um*2.0um. Support measuring of point, line, parallel lines, circle, arc, angle, rectangle, polygon etc. Take photo and video to save local or network. |
● |
● |
● |
|
Monitor |
11.6-inch 1080P HDMI monitor, brightness adjustable |
● |
● |
● |
|
Auxiliary Lens |
1.0X Auxiliary Objective |
● |
● |
● |
|
0.3X Auxiliary Objective |
○ |
○ |
○ |
|
|
0.4X Auxiliary Objective |
○ |
○ |
○ |
|
|
0.5X Auxiliary Objective |
○ |
○ |
○ |
|
|
0.6X Auxiliary Objective |
○ |
○ |
○ |
|
|
0.75X Auxiliary Objective |
○ |
○ |
○ |
|
|
1.5X Auxiliary Objective |
○ |
○ |
○ |
|
|
2.0X Auxiliary Objective |
○ |
○ |
○ |
|
|
4K Apochromatic objective, 0.5X/NA=0.054, WD=180mm |
○ |
○ |
○ |
|
|
4K Apochromatic objective, 1X/ NA=0.107, WD=100mm |
○ |
○ |
○ |
|
|
4K Apochromatic objective, 2X/ NA=0.214, WD=38mm |
○ |
○ |
○ |
|
|
Infinite LWD Plan Achromatic Metallurgical Objective (MA200A) |
5X/ NA=0.12, WD=26.1mm |
○ |
○ |
○ |
|
10X/ NA=0.25, WD=20.2mm |
○ |
○ |
○ |
|
|
20X/ NA=0.4, WD=8.8mm |
○ |
○ |
○ |
|
|
40X/ NA=0.6, WD=3.98mm |
○ |
○ |
○ |
|
|
50X/ NA=0.7, WD=3.68mm |
○ |
○ |
○ |
|
|
60X/ NA=0.75, WD=1.22mm |
○ |
○ |
○ |
|
|
60X/ NA=0.75, WD=3.18mm |
○ |
○ |
○ |
|
|
80X/ NA=0.8, WD=1.25mm |
○ |
○ |
○ |
|
|
100X/ NA=0.85, WD=0.4mm |
○ |
○ |
○ |
|
|
Infinite LWD Plan Apochromatic Objectives (LWD M APO200A) |
2X/ NA=0.055, WD=34.6mm |
○ |
○ |
○ |
|
3.5X/ NA=0.1, WD=40.93mm |
○ |
○ |
○ |
|
|
5X/ NA=0.13, WD=44.5mm |
○ |
○ |
○ |
|
|
10X/ NA=0.28, WD=34mm |
○ |
○ |
○ |
|
|
20X/ NA=0.29, WD=31mm |
○ |
○ |
○ |
|
|
50X/ NA=0.42, WD=20.1mm |
○ |
○ |
○ |
|
|
Infinite LWD Plan Apochromatic Objectives (LWD M APO200B) |
2X/ NA=0.075, WD=50mm |
○ |
○ |
○ |
|
4X/ NA=0.15, WD=36mm |
○ |
○ |
○ |
|
|
4.5X/ NA=0.18, WD=38mm |
○ |
○ |
○ |
|
|
20X/ NA=0.35, WD=29mm |
○ |
○ |
○ |
|
|
Coaxial light Device |
Coaxial device, does not include light source |
○ |
○ |
○ |
|
Polarized coaxial device, does not include light source |
○ |
○ |
○ |
|
|
Ring Light |
BAL-80A LED Ring light, brightness adjustable |
○ |
○ |
○ |
|
BAL-52AP LED polarizing ring light, brightness adjustable |
○ |
○ |
○ |
|
|
BAL-52ASL LED side ring light, brightness adjustable |
○ |
○ |
○ |
|
|
BAL-228A Four-zone lighting control separately big area LED ring light |
● |
● |
● |
|
|
BAL-228AG LED four-zone ring light with frosted glass |
○ |
○ |
○ |
|
|
BAL-16P LED polarizing ring light, brightness adjustable |
○ |
○ |
○ |
|
|
BAL-52A LED Ring light, brightness adjustable |
○ |
○ |
○ |
|
|
Back Light |
BTL-60A LED back light |
○ |
○ |
○ |
|
Point Light |
BPL-3A LED point light, 3W, brightness adjustable. |
○ |
○ |
○ |
|
BPL-3MC LED multi color point light, 3W, white, purple, blue, yellow, red, green and mixed light, brightness adjustable |
○ |
○ |
○ |
|
|
BPL-4A LED point light with numerically adjustable light adapter, 4W, brightness adjustable |
○ |
○ |
○ |
|
|
Bar Light |
BBL-5A bar LED illuminator, 60 LED, 12V/5W |
○ |
○ |
○ |
|
Cold Light Source |
BSL-3B LED light source with dual goose neck light guide, 6.5W |
○ |
○ |
○ |
|
BSL-15A-2 Cold LED light source with Dual Light Guide, 15W LED lamp |
○ |
○ |
○ |
|
|
BSL2-150A-2 Cold light source with Dual Light Guide, 21V/150W Halogen lamp |
○ |
○ |
○ |
|
|
Stage |
BMS-302 X-Y moving stage |
○ |
○ |
○ |
|
BMS-303 X-Y moving stage |
○ |
○ |
○ |
|
|
BMS-311 X-Y measuring stage |
○ |
○ |
○ |
|
|
BMS-316A X-Y measuring stage |
○ |
○ |
○ |
|
|
BMS-316B X-Y measuring stage |
○ |
○ |
○ |
|
|
BMS-400A large working stage |
○ |
○ |
○ |
|
|
BMS-260A XY working stage |
○ |
○ |
○ |
|
|
Stand and focus Arm |
BA1 Round type column plain stand with coarse focus arm. Stroke: 50mm. |
● |
○ |
○ |
|
BA2 Round type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 50mm. |
○ |
● |
○ |
|
|
BA3 Round type column plain stand with coarse and fine focus arm. Stroke: 67mm, fine precision: 0.002mm. |
○ |
○ |
○ |
|
|
BA4 Round type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 67mm, fine precision: 0.002mm. |
○ |
○ |
○ |
|
|
BA5 Square type column plain stand with coarse focus arm. Stroke: 150mm. |
○ |
○ |
● |
|
|
BA6 Square type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 150mm. |
○ |
○ |
○ |
|
|
BA7 Square type column plain stand with coarse and fine focus arm. Stroke: 260mm, fine precision: 0.002mm. |
○ |
○ |
○ |
|
|
BA8 Square type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 260mm, fine precision: 0.002mm. |
○ |
○ |
○ |
|
|
BA9 multi-angle column plain stand with coarse focus arm. Stroke: 60mm. |
○ |
○ |
○ |
|
|
BA10 multi-angle column plain stand with coarse and fine focus arm. Stroke: 60mm, fine precision: 0.002mm. |
○ |
○ |
○ |
|
|
BA11 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 50mm. |
○ |
○ |
○ |
|
|
BA12 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
○ |
○ |
|
|
BA13 Round type column large plain stand with coarse focus arm. Column height: 320mm, Φ25mm, stroke: 50mm, base size: 380mm*260mm. Gross weight: 1.5kg. |
○ |
○ |
○ |
|
|
BFA-1 coarse focus arm. Stroke: 50mm. |
○ |
○ |
○ |
|
|
BFA-2 coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
○ |
○ |
|
|
BFA-3 multi-angle coarse focus arm, angle adjustable. Stroke: 50mm. |
○ |
○ |
○ |
|
|
BFA-4 multi-angle coarse and fine focus arm, angle adjustable. Stroke: 60mm, fine precision: 0.002mm. |
○ |
○ |
○ |
|
|
BFA-5 electric coarse and fine focus arm, supporting manual focusing and electric focusing. It has 5 preset positions, paired with 5 different magnification objectives. Stroke: 65mm, fine precision: 0.005mm. |
○ |
○ |
○ |
|
|
BFA-6 N interface coarse focus arm. Stroke: 50mm. |
○ |
○ |
○ |
|
|
BFA-7 N interface coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
○ |
○ |
Note: ●Standard Outfit, ○Optional
Optical Parameter
|
Model |
BLM1-480 |
|
|
Lens |
Optical Magnification |
0.3-3.0X |
|
Total Magnification |
10-99.8X |
|
|
Zoom ratio |
1:10 |
|
|
Working Distance |
86mm |
|
|
FOV |
25.6mm*14.4mm-2.56mm*1.44mm |
|
|
Zoom modes |
Motor zoom and manual knob zoom |
|
|
Camera |
Sensor |
1/1.8” |
|
Pixel size |
2.0μm*2.0μm |
|
|
Resolution |
3840*2160 |
|
|
Frame |
60fps |
|
|
Output |
HDMI |
|
|
Network interface |
1000Mb |
|
|
USB ports |
USB 3.0 *2 |
|
|
Storage function |
Photo and video save local or network |
|
|
Measuring function |
Magnification shows in real-time, and measuring in real-time. Support box selection for faster and higher accuracy measurement. Support automatic edge finding for more accurate measurement. |
|
|
Monitor |
Monitor |
11.6-inch 1080P HDMI monitor，brightness adjustable |
Accessories
4K objectives
Auxiliary objectives
Coaxial device
Polarized coaxial
BLM1-480A
BLM1-480B
BLM1-480C
BLM1-480D
BLM1-480E with coaxial device
BLM1-480E with coaxial device and APO objective
