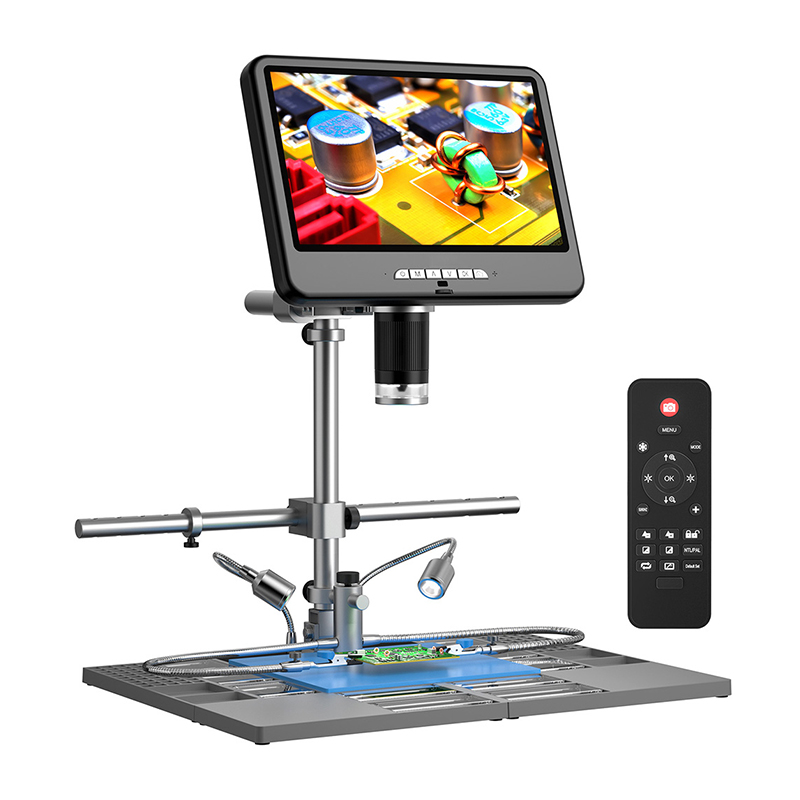

BLM1-210C LCD Digital Microscope
Introduction
BLM1-210C is a newly developed LCD digital microscope. It has 10.1inch LCD screen and 4K built-in digital camera.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 2-4 Weeks after Receiving Payment
Introduction
BLM1-210C is a newly developed LCD digital microscope. It has 10.1inch LCD screen and 4K built-in digital camera. It supports real-time output with HDMI 2.0 and USB 3.0 ports. And there are multiple light sources to provide brighter and clearer views. There are also different stand and holder wo meet different needs and base extension for larger space.
Features
1.1inch LCD screen, high definition and has a very nice display result.
2.True 4K UHD 60fps, high speed and high resolution.
3.Supporting 4K 60fps video and audio recording.
4.Real-time output with HDMI2.0 and USB 3.0 ports.HDMI 2.0 high-speed output for external display. For optimal image quality, please use HDMI 4K 60fps monitor. USB 3.0 port for PC connection, dual screen display is not supported.
5.The remote controller can be used to adjust the microscope.

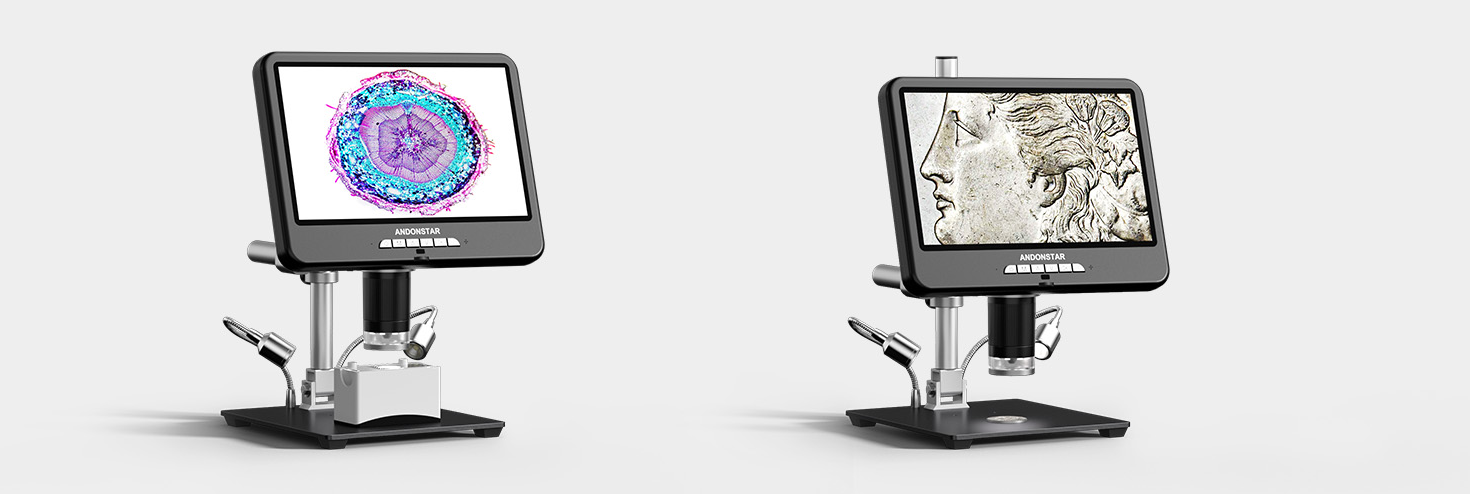

6.BLM1-210 is an all-purpose 4K digital microscope for both high object distance and low object distance.

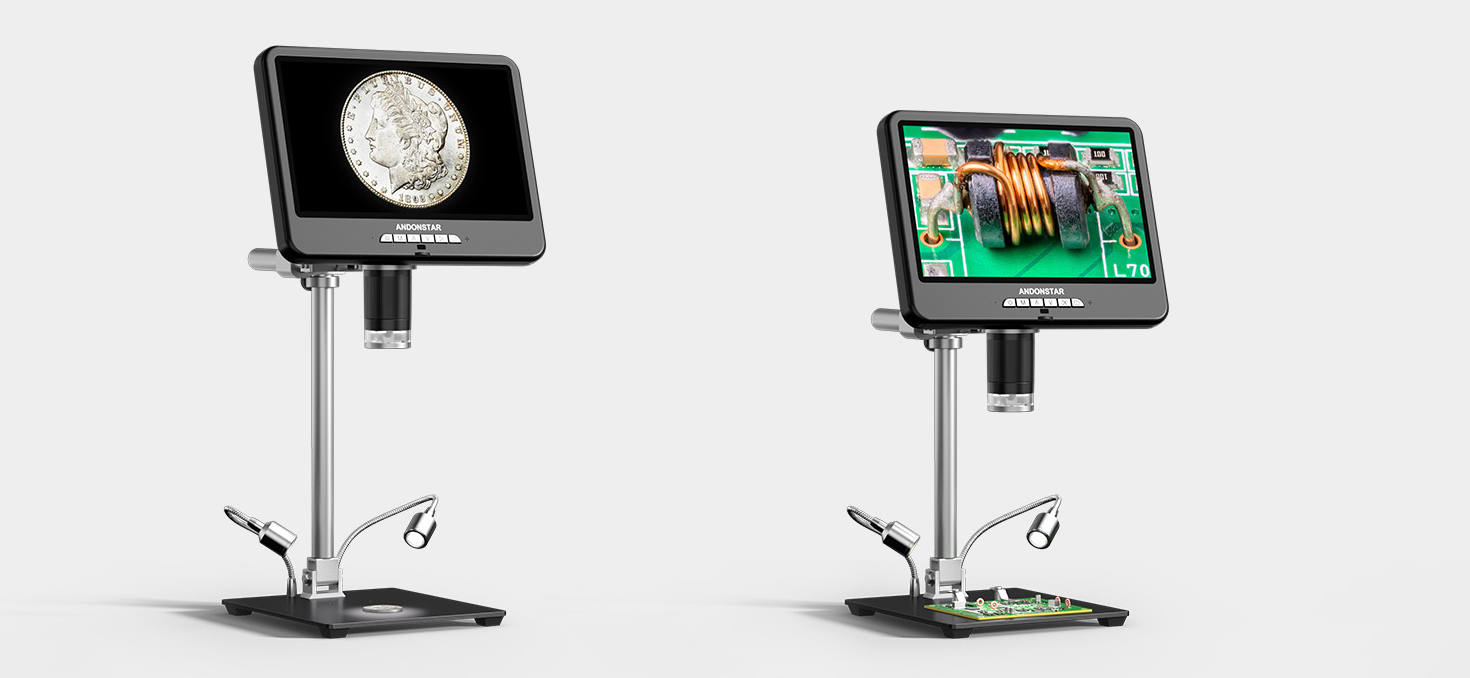

High object distance

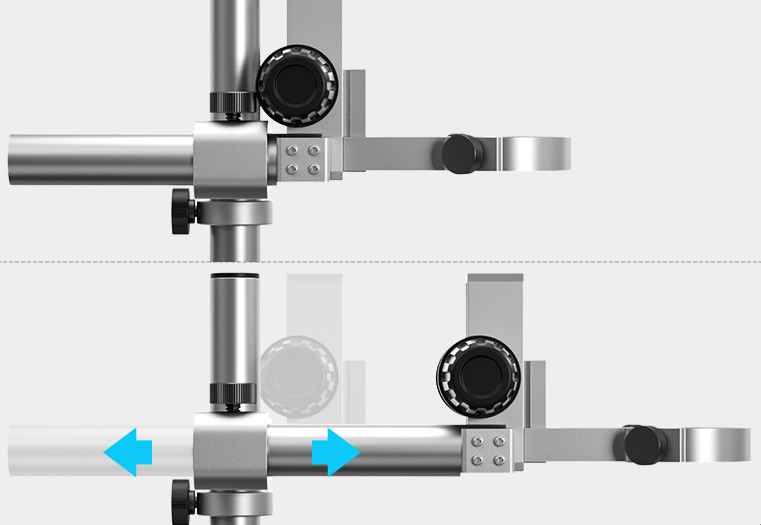

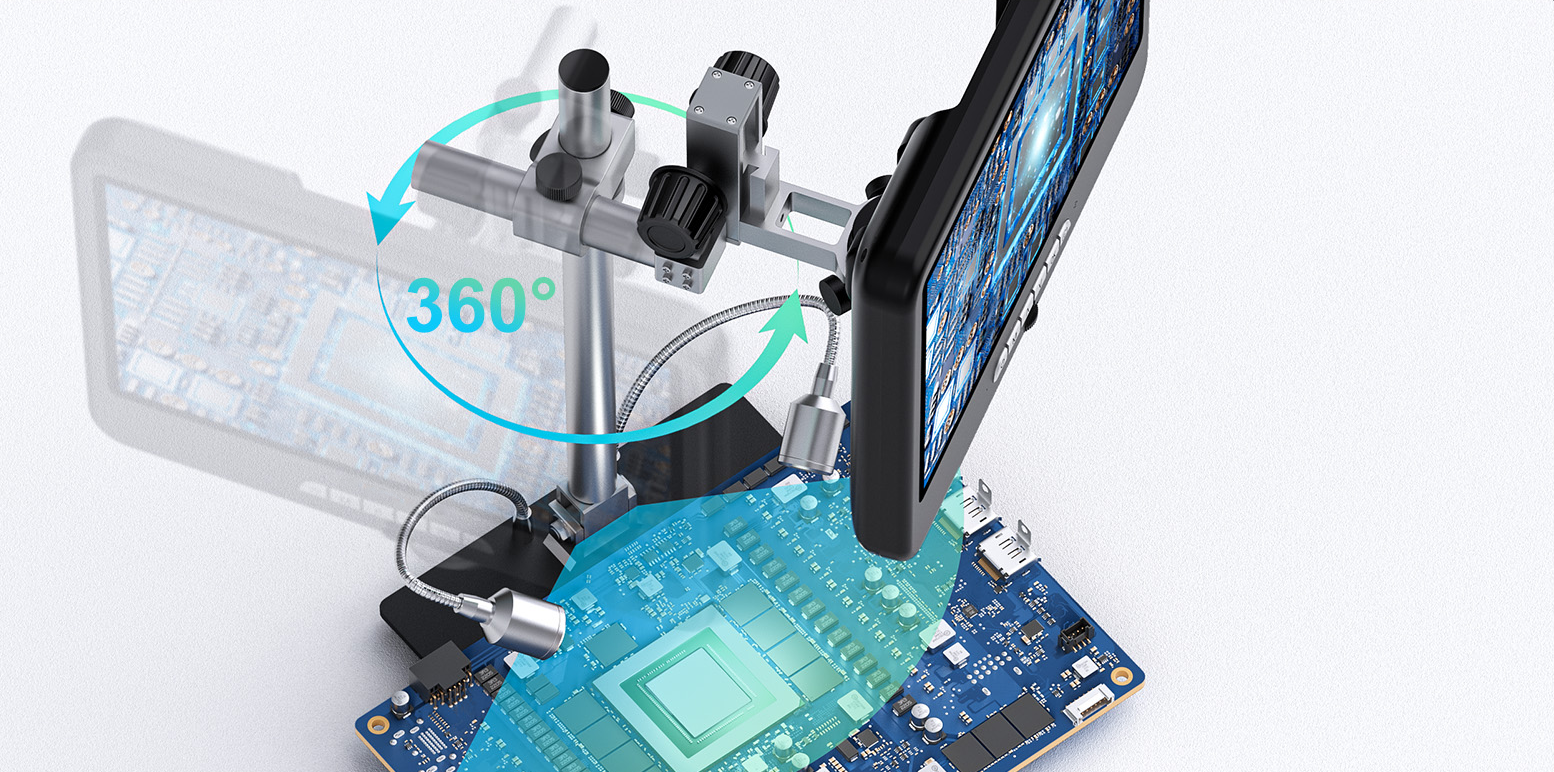

7.The universal adjustment bracket of BLM1-210B and BLM1-210C can help the users find a comfortable position.

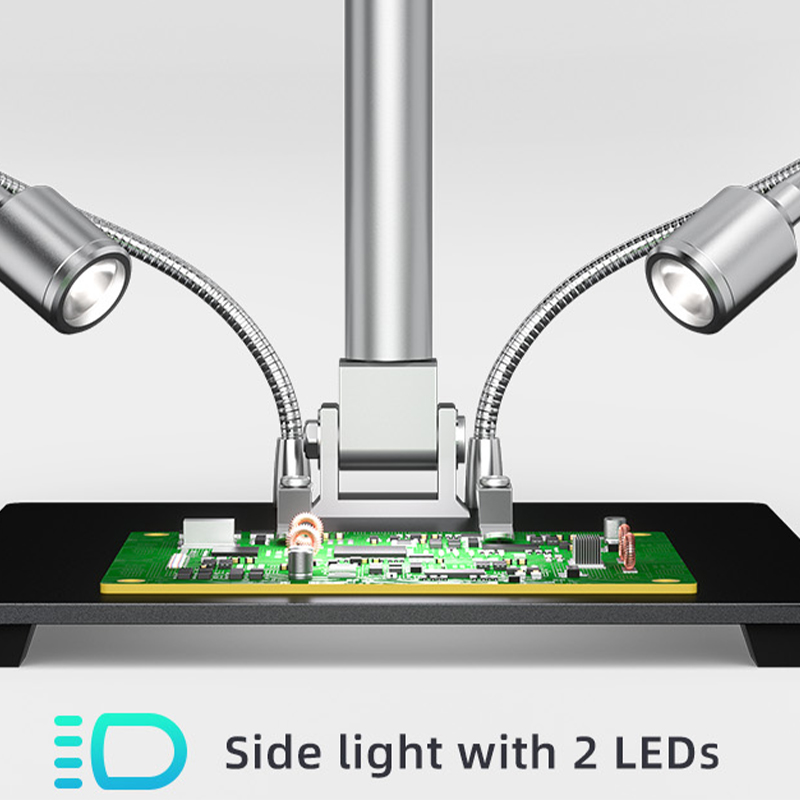

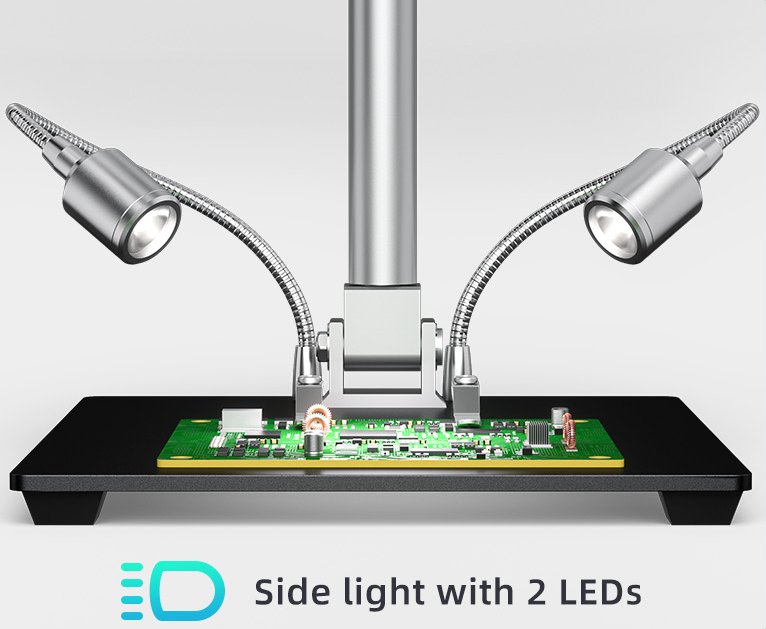

8.There are multiple light sources to provide brighter and clearer views.

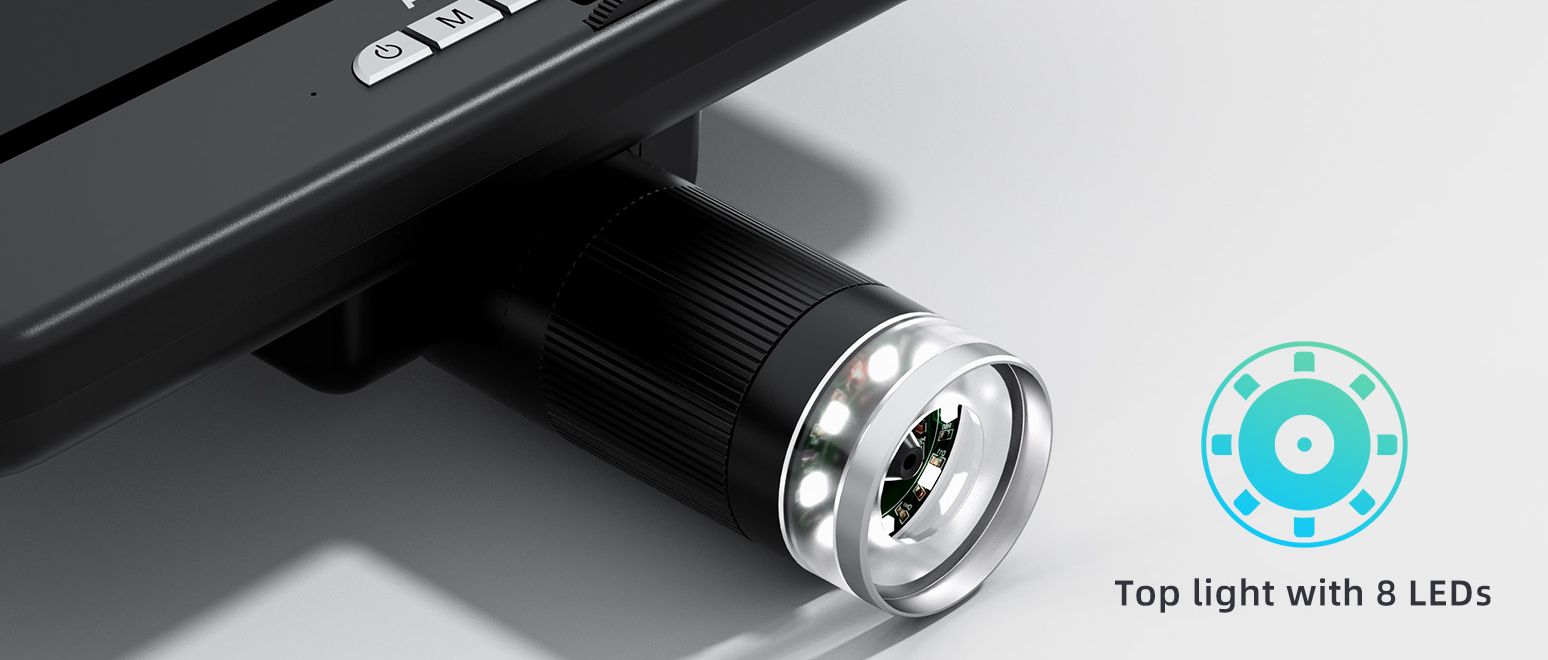

The top illuminator is a ring light with 8 LEDs.
Application
BLM1-210C LCD digital microscope can be used for circuit board repair and inspection, semiconductor inspection, SMT work, electronics inspection, dissection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.
Specification
|
Item |
Specification |
|
Image sensor |
4K 60fps high-speed high-definition sensor |
|
Screen Size & Resolution |
10.1inch (1280*800) |
|
Magnification |
Built-in 10.1inch screen: 560X (with 8 times digital zoom) HDMI output to 32inch 4K monitor: 1760X (with 8 times digital zoom) |
|
Video Output |
3840*2160 4K UHD 60fps, 3840*2160 4K UHD 30fps |
|
Video Format |
MP4 |
|
Photo Resolution |
Max 64M (9280*6936) |
|
Photo Format |
JPG |
|
Minimum Focus Distance |
1.5cm |
|
Frame Rate |
Max 60fps |
|
Video Output Interface |
HDMI 2.0 4K 60fps |
|
USB output |
Support |
|
Storage |
Micro-SD card, up to 512G (not included, Class10 high-speed card is recommended) |
|
Power source |
DC 5V 3A |
|
Stand size |
18cm*20cm*32cm |
|
Item |
Specification |
BLM1-210A |
BLM1-210B |
BLM1-210C |
|
Microscope Body & Stands |
Microscope with monitor |
● |
● |
● |
|
Metal base with 2 side lights |
● |
● |
● |
|
|
Column with height adjustment holder |
● |
|
|
|
|
Column with universal adjustment bracket |
|
● |
● |
|
|
Tool holder |
|
|
● |
|
|
Welding auxiliary clamps |
|
|
● |
|
|
Extension base |
|
|
● |
|
|
Remote Controller |
Remote controller without batteries |
● |
● |
● |
|
Power Supply & Cables |
Power adapter |
● |
● |
● |
|
Power cable |
● |
● |
● |
|
|
HDMI cable |
● |
● |
● |
|
|
USB data cable |
● |
● |
● |
|
|
Others |

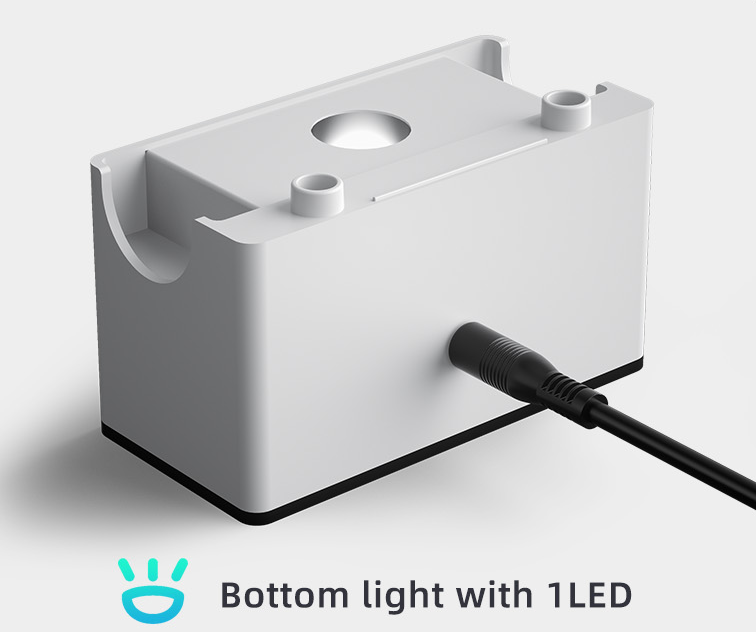

Bottom light |
● |
● |
● |
|
Prepared microscope slider*5 |
● |
● |
● |
|
|
Metal clips*2 |
● |
● |
● |
|
|
64G SD card |
○ |
○ |
○ |
|
|
Card reader |
● |
● |
● |
|
|
Cleaning cloth |
● |
● |
● |
|
|
User manual |
● |
● |
● |
Note: ● Standard Outfit, ○ Optional
System Diagram

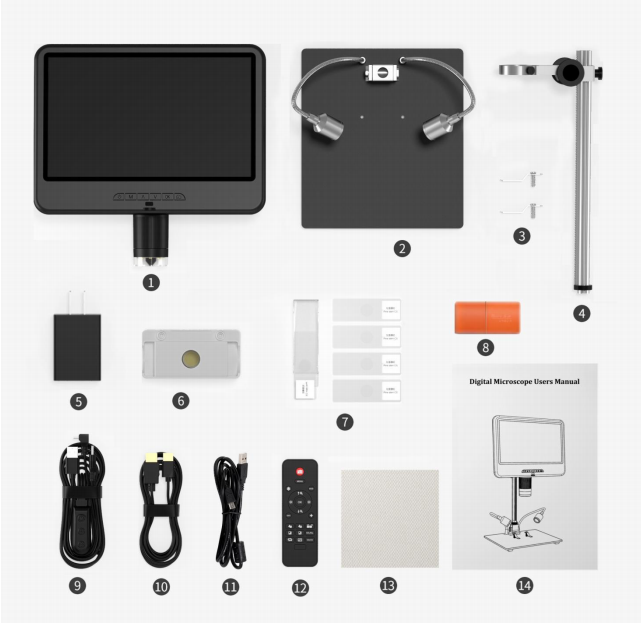

BLM1-210A

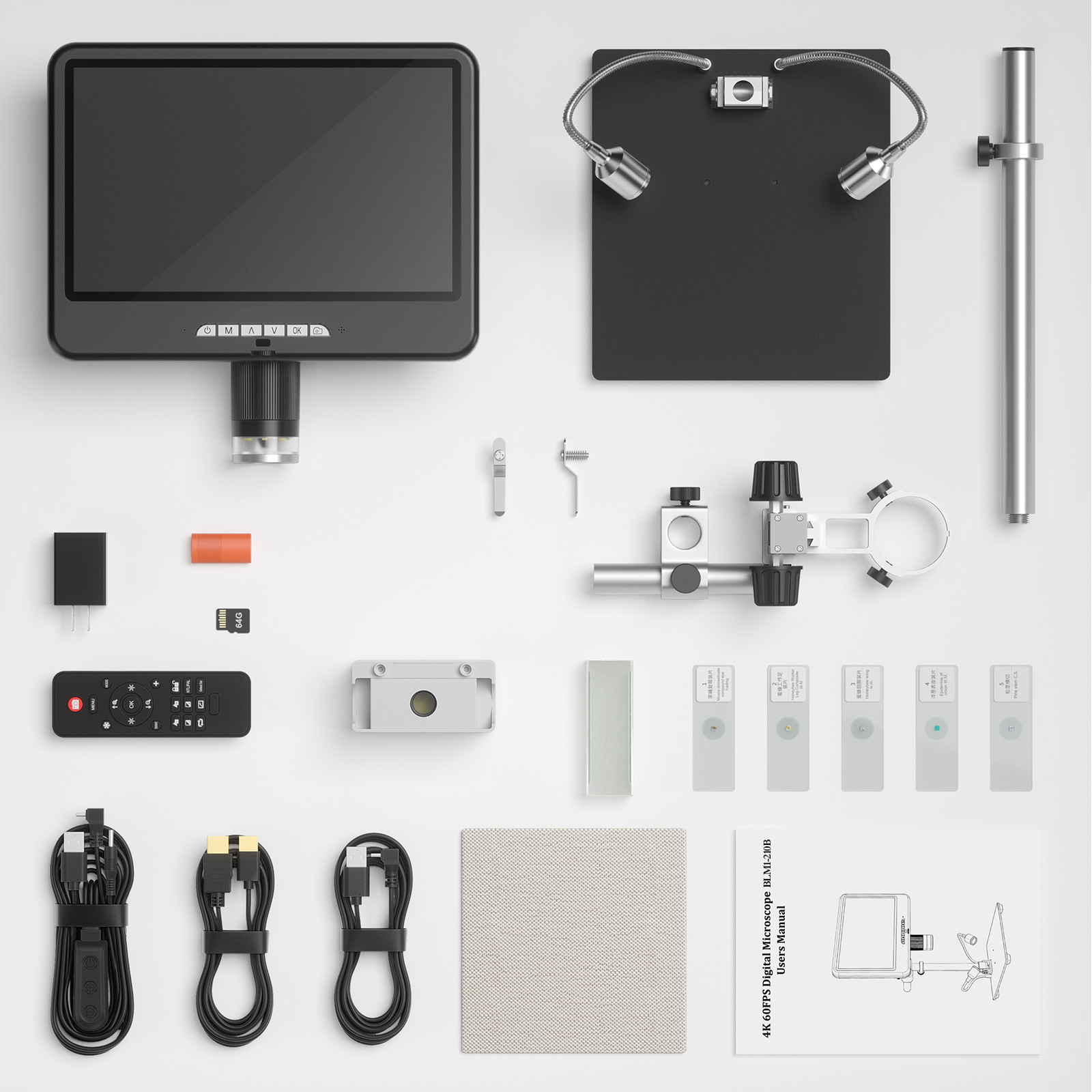

BLM1-210B

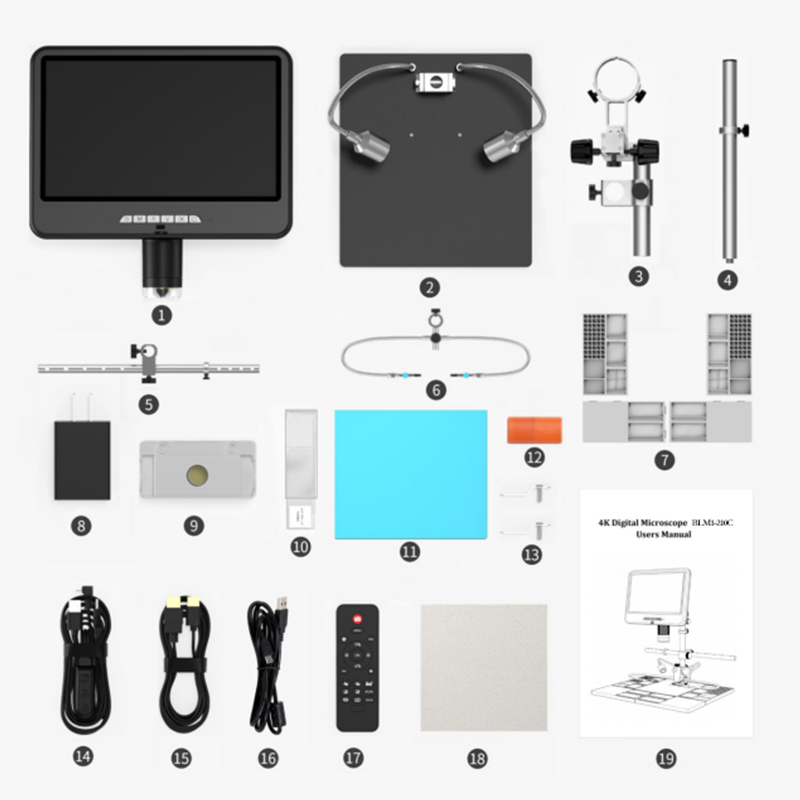

BLM1-210C
