Introduction

BLC-280 LCD digital camera is a combination of BHC4-1080P8MPB HDMI digital camera and HD1080P133A 13.3” high-definition IPS LCD display. The multiple interfaces (HDMI+USB2.0+SD card) CMOS camera has adopted ultra-high performance IMX415 CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.

Details

Model:BLC-280
Sensor:IMX415(C)
Sensor Size(mm):1/2.8"(5.57x3.13)
Frame Rate:30@1920*1080(HDMI) 30@3840*2160(USB)
Pixel(μm):1.45x1.45
Exposure:0.04~1000
Screen Size:13.3 Inch
Video Fomat:HDMI
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BLC-280 LCD digital camera is a combination of BHC4-1080P8MPB HDMI digital camera and HD1080P133A 13.3” high-definition IPS LCD display. The multiple interfaces (HDMI+USB2.0+SD card) CMOS camera has adopted ultra-high performance IMX415 CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.



HD1080P133A HD LCD screen has adopted IPS LCD panel (Super TFT) to guarantee the wide view angle and high contrast. Together with the HDMI camera, HD1080P133A could make the imaging & display solution simple, flexible and intuitive. Outstanding performance of HD1080P133A helps the HDMI camera reach fast frame rate and excellent color.



For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI LCD dsiplayer. In this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video and make measurements.



For USB2.0 output, unplug the mouse and plug in the USB2.0 cable to the camera and computer, then the video stream can be transfer to computer with the advanced software ImageView.



The included Windows software ImageView offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection.



For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Features

  1. All in 1( HDMI+USB+SD card) C-mount camera with high sensitivity CMOS sensor;
  2. Simultaneous HDMI & USB output;
  3. Built-in mouse control;
  4. Built-in image capture & video record to SD card;
  5. Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness and denoising control;
  6. Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions;
  7. Built-in image & video browsing, display & play;
  8. Ultra-Fine color engine with perfect color reproduction capability (USB2.0);
  9. Support standard UVC for Windows/Linux/Mac (USB);
  10. With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
  11. CNC precision machining shell;
  12. True 1080P HDMI displayer;
  13. 13.3 inch active area;
  14. IPS LCD panel, 178 degree wide viewing angle;
  15. HDR dynamic image enhancement;
  16. 72% SRGB primary gamut;
  17. 400cd/m2 display brightness, high contrast ratio up to 1000:1;
  18. 4mm narrow frame design on three sides, with 90% of the screen area, great visual experience;
  19. No delay is felt with 3ms response, and dynamic definition is optimized to keep the picture stable and clear without residual shadow;
  20. Integrated invisible folding support, easy viewing angle adjustment.

Application

The possible applications of BLC-280 LCD digital camera are as follows:

  1. Scientific research, education (teaching, demonstration and academic exchanges);
  2. Digital laboratory, medical research;
  3. Industrial visual (PCB examination, IC quality control);
  4. Medical treatment (pathological observation);
  5. Food (microbial colony observation and counting);
  6. Aerospace, military (high sophisticated weapons).

Specification

Camera Specification (BHC4-1080P8MPB)

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

BLC-280

IMX415(C)

1/2.8″(5.57×3.13)

1.45×1.45

300mv with 1/30s 0.13mv with 1/30s

30@1920*1080(HDMI)

30@3840*2160(USB)

1×1

0.04~1000

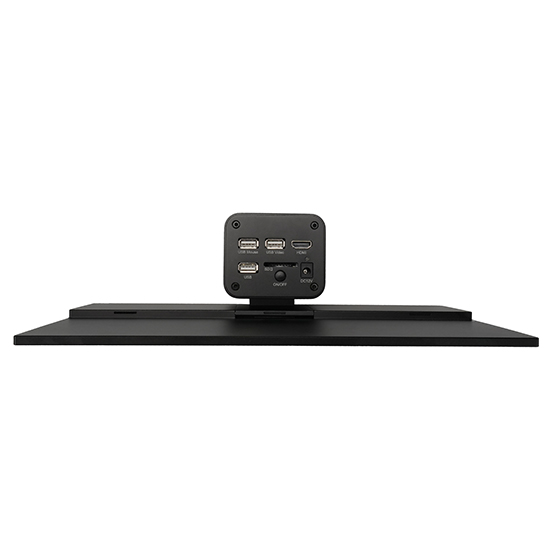

Interface

Function Description

USB Mouse

Connect USB mouse for easy operation with embedded XCamView software;

USB Video

Connect PC or other host device to realize video image transmission;

HDMI

Comply with HDMI1.4 standard. 1080P format video output for standard displayer;

DC12V

Power adapter connection (12V/1A);

SD

Comply with SDIO3.0 standard and SD card could be inserted for video and images storage;

LED

LED status indicator;

ON/OFF

Power switch;

Video Output Interface

Function Description

HDMI Interface

Comply with HDMI1.4 standard; 30fps@1080P;

USB Video Interface

Connecting USB port of PC for video transfer; MJPEG format video;

Function Name

Function Description

Video Saving

Video format: 1920*1080, H264/H265 encoded MP4 file;

Video saving frame rate: 30fps (BLC-280)

Image Capture

8MP (3840*2160) JPEG/TIFF image in SD card;

Measurement Saving

Measurement information saved in layer mode with image content;

Measurement information is saved together with image content in burn in mode.

ISP Function

Exposure (Automatic / Manual Exposure) / Gain, White Balance (Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function

Image Operations

Zoom In/Zoom Out, Mirror/Flip, Freeze, Cross Line, Overlay, Embedded Files Browser, Video Playback, Measurement Function

Embedded RTC(Optional)

To support accurate time on board

Restore Factory Settings

Restore camera parameters to its factory status

Multiple Language Support

English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian

Software Environment under USB Video Output

White Balance

Auto White Balance

Color Technique

Ultra-Fine Color Engine

Capture/Control SDK

Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)

Recording System

Still Picture or Movie

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 4GB or More

Ethernet Port: RJ45 Ethernet Port

Display:19” or Larger

CD-ROM

Operating Environment

Operating Temperature (in Centidegree)

-10°~ 50°

Storage Temperature (in Centidegree)

-20°~ 60°

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 12V/1A Adapter



LCD Screen Specification (HD1080P133A)

Order Code

Active Area(Inch)

Video Fomat

Resolution

Contrast

Color Gamut

View Angle

HD1080P133A

13.3

HDMI

1080P

1000:1

72%

IPS Full View(178°)

Basic Performance

LCD Panel

IPS LCD Screen (Super TFT)

Input Video Format

HDMI

Native Resolution

1920 x 1080

Display Type

16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD

Typical Contrast Ratio

1000:1

Colors

16.7 Million

Viewing Angle(L/R/U/D)

IPS Full View (178°)

Active Display Area

295mm(W) × 165mm(H)

Pixel Pitch

0.154(W) X 0.154(H) mm

Refresh Rate

60Hz

Brightness

400cd/m2

Backlight

LED Backlight, 50000 hours

Outline Parameter

Color

Black

Dimension

306(L)*183(H)*8(T) mm

Weight

450g

Operating Environment

Operating Temperature

-15 Degree~55 Degree

Humidity Non Condensing

Operating:10%-90%, Storage: 5%-90%

Synchronization Range

30-80 KHz Horizontal, 55-75 Hz Vertical

Power Supply

AC110V-220V /DC5~12V(1A ) (Type C)

Power Consumption

Max 12W
