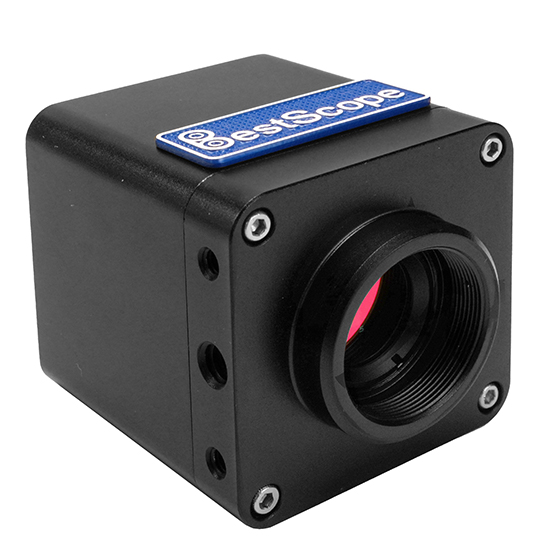

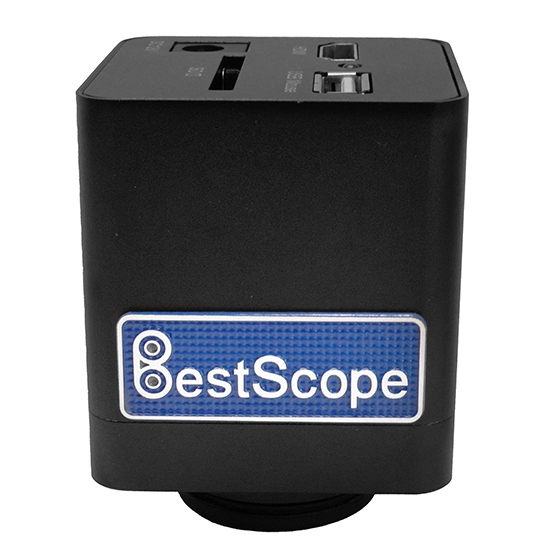

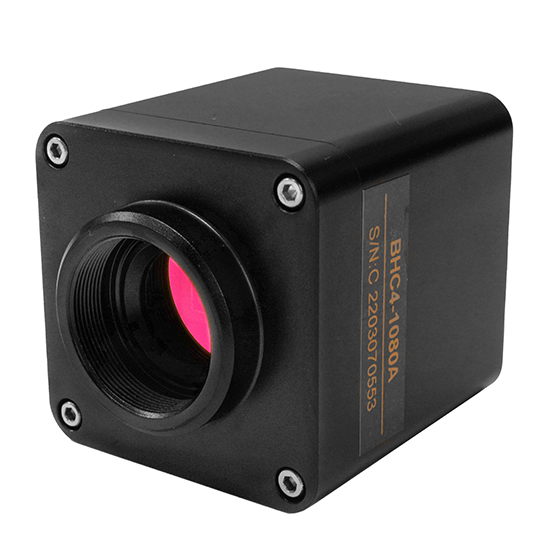

BHC4-1080A HDMI Digital Microscope Camera (IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (IMX307 Sensor, 2.0MP)
BHC4-1080A HDMI Digital Microscope Camera (IMX307 Sensor, 2.0MP)

BHC4-1080A HDMI Digital Microscope Camera (IMX307 Sensor, 2.0MP)

Introduction

The BHC4-1080A Full HD HDMI digital camera is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope and other optical microscopes or online interactive teaching.

Details

Model:BHC4-1080A
Sensor:IMX307(C)
Sensor Size(mm):1/2.8"(5.57x3.13)
Pixel(μm):2.9x2.9
FPS/Resolution:60@1920*1080(HDMI)
Binning:1x1
Exposure:0.01~1000
G Sensitivity:1300mv with 1/30s
Video Output Interface:HDMI Interface
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

The BHC4-1080A Full HD HDMI digital camera is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope and other optical microscopes or online interactive teaching.

Features

1. Starvis back illuminated CMOS sensor.

2. FHD HDMI video outputs.

3. SD card for the captured image and video storage.

4. Embedded XCamView for the control of the camera.

5. With strong ISP and other related processing functions.

Application

The possible applications of BHC4-1080A are as follows:

1. Scientific research, education (teaching, demonstration and academic exchanges).

2. Digital laboratory, medical research.

3. Industrial visual (PCB examination, IC quality control, mechanical part inspection).

4. Medical treatment (pathological observation).

5. Food (microbial colony observation and counting).

Specification



Camera Datasheet

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

FPS/Resolution

Binning

Exposure(ms)

BHC4-1080A

IMX307(C)

1/2.8″(5.57×3.13)

2.9×2.9

1300mv with 1/30s

60@1920*1080(HDMI)

1×1

0.01~1000

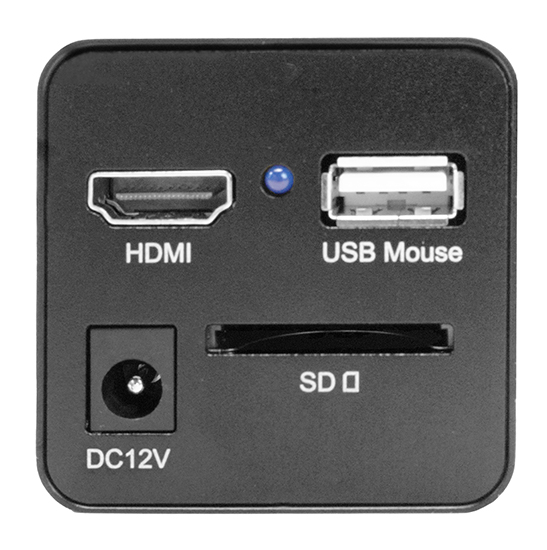

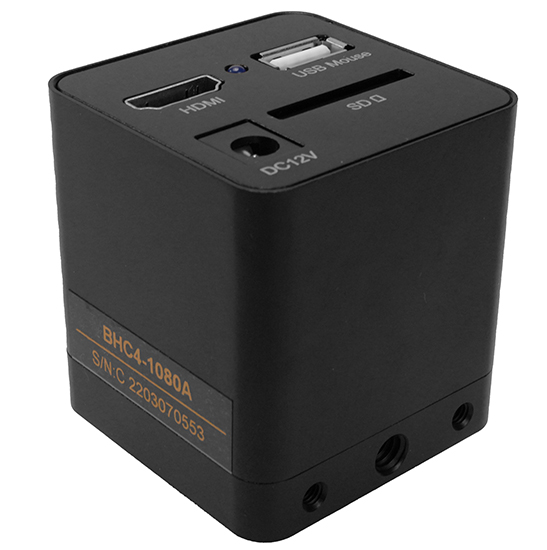

Interface on the Camera Body

Interface

Function Description

USB Mouse

Connect USB mouse for easy operation with embedded XCamView software

HDMI

Comply with HDMI1.4 standard. 1080P format video output for standard FHD monitor

SD

Comply with SDIO3.0 standard and SD card could be inserted for video and images storage

DC12V

Power adapter connection (12V/1A)

LED

LED status indicator



Camera Function Description

Video Output

Video Output Interface

Function Description

HDMI Interface

Comply with HDMI1.4 standard;

60fps@1080P



Image Capture and Video Saving in SD card

Function Name

Function Description

Video Saving

Video format: 2M(1920*1080) H264 encoded MP4 file;

Video saving frame rate: 50~60fps (related with SD card performance);

Image Capture

2M (1920*1080) JPEG image in SD card



ISP Function

Function Name

Function Description

Exposure / Gain

Automatic / Manual Exposure

White Balance

Manual / Automatic / ROI Mode

Sharpening

Supported

3D Denoise

Supported

Saturation Adjustment

Supported

Contrast Adjustment

Supported

Brightness Adjustment

Supported

Gamma Adjustment

Supported

50HZ/60HZ Anti-flicker Function

Supported



Image Operation Function

Function Name

Function Description

Zoom In/Zoom Out

Up to 10X

Mirror/Flip

Supported

Freeze

Supported

Cross Line

Supported

Embedded Files Browser

Supported

Video Playback

Supported



Other Functions

Function Name

Function Description

Restore Factory Settings

Supported

Multiple Language Support

English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian



Packing Information

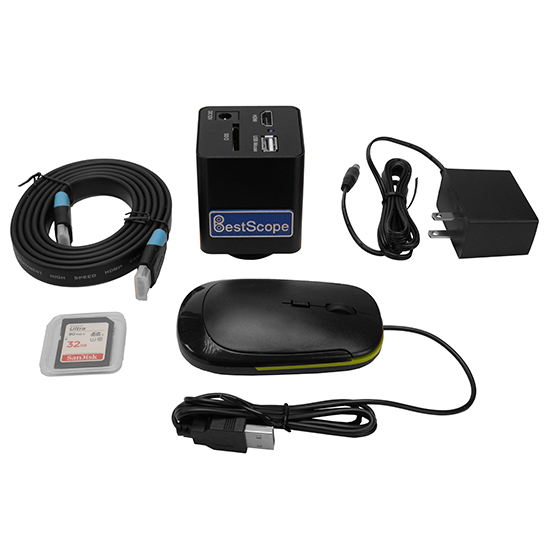

Standard Packing List

A

Gift box : L:17.5cm W:17.5cm H:8.5cm (1pcs, 0.85kg/ box)

B

BHC4-1080A

C

Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A

American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC

EMI standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3, class A light industry standard

European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3, class A light industry standard

D

HDMI cable

E

USB mouse/USB wireless mouse

Optional Accessory

F

Adjustable lens adapter

C-Mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-Mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

G

Fixed lens adapter

C-Mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-Mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

J

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

K

SD card(4G or 8G)
