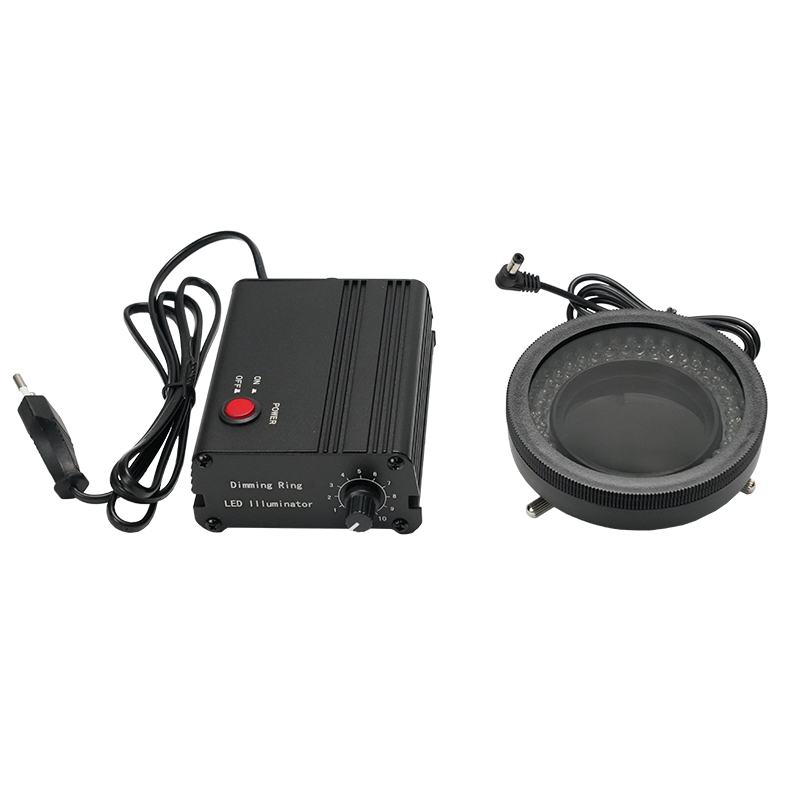

BAL2B-78P Polarizing LED ring light
Introduction
BAL2B-78P Polarizing LED ring light has features of high brightness, low temperature and flash free, it can be used as auxiliary illumination for industrial monocular microscopes, stereo microscopes and similar lens. It adopts a high extinction ratio polarizing set, can be used to observe or analyse surface of high reflective materials.
Details
Overview
Quick Details
Model:BAL2B-78
Input Voltage:Universal 100-240V AC
Input Power:6 W
Mounting Diameter:ϕ70mm
LED Quantity:78pcs LED lamps
LED Lifetime:50,000hrs
LED Color:White
Light Control:Brightness Adjustable
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 weeks after receiving payment
Introduction
BAL2B-78P Polarizing LED ring light has features of high brightness, low temperature and flash free, it can be used as auxiliary illumination for industrial monocular microscopes, stereo microscopes and similar lens. It adopts a high extinction ratio polarizing set, can be used to observe or analyse surface of high reflective materials.
Feature
- The light head adopt ABS plastic material and ϕ5mm LED lamps, with excellent light focus effect and high efficiency.
- The power controlling adapter adopt aluminum case, solid and reliable.
- With polarizing set, can reduce the reflective light on the surface of materials, improve the observation result.
- Continues light intensity adjustment can meet different requirement.
- Reliable circuit board ensures safety and long working life.
- ESD light head treatment is optional.
Specification
Model |
BAL2B-78 |
Input Voltage |
Universal 100-240V AC |
Input Power |
6 W |
Mounting Diameter |
ϕ70mm |
Outside Diameter of light head |
ϕ104mm |
LED Quantity |
78pcs LED lamps |
LED Lifetime |
50,000hrs |
LED Color |
White (Other Colors can be customized ) |
Color Temperature |
6400K, other color temperature can be customized |
Illuminance@100mm |
25000lx |
Light Control |
Brightness Adjustable |
Light head material |
ABS Plastic |
Polarizing Set |
Polarizer and Analyzer (Polarizer is 360°adjustable) |
Packing |

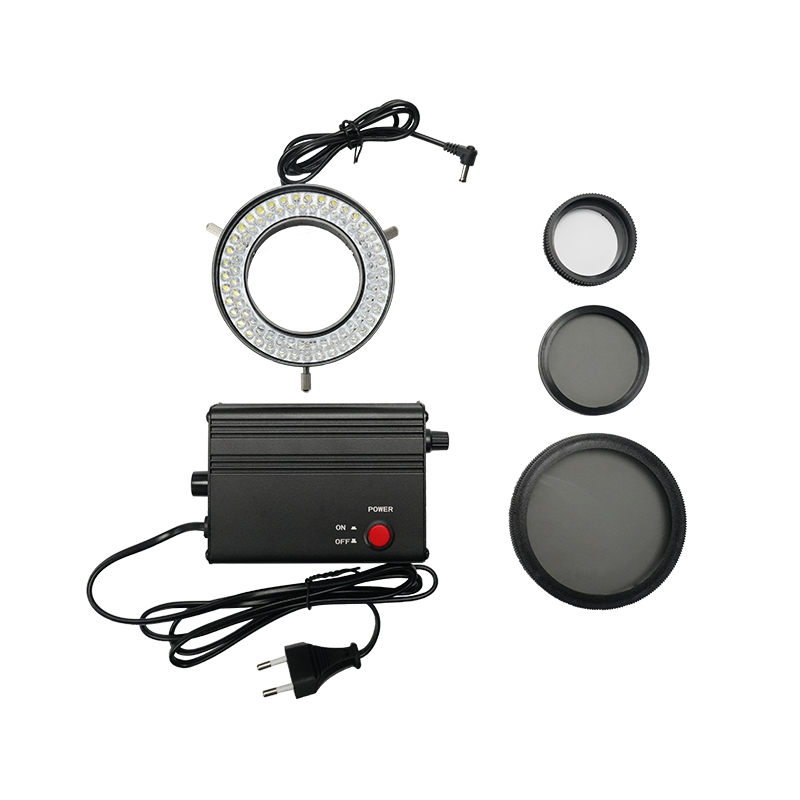

BAL2B-78 LED ring light head, Aluminum Light Control Box, Power cable, Polarizing set |
